Xtool X100 MAX Auto Key Programmer with KC501 Adapter Supports ECU coding 42+ Services 2 Years Update
-
Express Estimated Delivery:Dec 29 - Jan 02
-
Free Shipping Method: Estimate dilevery 8-19 business days
Guarantee safe & secure checkout
Xtool X100 MAX Auto Key Programmer with KC501 Adapter Supports ECU coding 42+ Services 2 Years Update
Xtool X100 MAX Auto Key Programmer Supports Full Systems Diagnostics, 42 special functions, ECU coding and Topology Mapping, Supports CAN FD/DoIP 2 years free upgrade.
Xtool X100 MAX Highlights:
1. Dealer-Level Full Systems Diagnostics + Bi-Directional Control (active test)
2. With KC501, comprehensive IMMO/Key Programming Functions
3. Supports 42+ special functions, ECU coding, Refresh Hidden Functions and VAG guided functions
4. Support DoIP and CAN FD Protocols
5. Supports Bluetooth and USB connection
6. With X-MVCI J2534 VCI. Supports BMW, Benz, VW, Audi, SKODA, Ford, Mazda online programming
7. 2 years free update
8. Supports Topology Mapping
9. AutoScan & AutoVIN
10. Multi-Language: English, German, French, Spanish, Finnish, Italian, Japanese, Portuguese, Russian, Korean, Polish, Arabic, send us the serial number to change the language.
11. Upgrade version of x100 pad3.
12. Supports Russian, Malaysian, French, Brazilian cars
Xtool X100 MAX Functions:
1. Advanced IMMO & Key Programming
Read PIN/CS(All Key Lost)
Check Number of Keys
Generate Dealer Key
Add Keys
Program New Key Fobs
Key Learning
Remote Learning
Read Remote Frequency, Chip Type & Chip ID
Key Chip Read & Write
EEPROM Read & Write
Transponder Read & Write
Basic MCU Read & Write
IMMO ECU Reset/ Adaptation
IMMO ECU Refresh/ Coding
for Benz FEM/ BDC Key Learning, ECU Adaptation
Read & Write for Benz Infrared Key
for BM-W CAS3/ 2 Key Learning
for V-W/ Au-di/ Sko-da/ Se-at IMMO III/ IV/ V Add Key, All Key Lost
2. Topology Module Mapping
X100 Max features module topology to scan all available car modules and show color coded diagnosis status in tree mapping that reveals the underlying communication structures between modules, greatly improved repair efficiency for workshops.
3. ECU Programming
XTOOL X100 MAX professional diagnostic scan tool can perform Online ECU Programming on BMW, Mercedes Benz, Volkswagen, Offline ECU Programming on Ford, Lincoln, Mazda and ECU Coding on Volkswagen, Audi, Skoda and etc to program/reflash ECUs, perform Online Calibrations, Online Parameterizations, and customize car settings.
Perform Online ECU Programming on ECM, PCM, BCM For BMW/Mercedes/VW, to:
Replace the existing software, firmware in the ECU；Program/reflash new modules after ECU replacement；Fix software-controlled driving performance and emission issues.
Perform Offline ECU Programming For Ford/Lincoln/Mazda, to:
Copy the codes from old module to the new one when you have swapped the ECU/Module from a doner car; Perform Programmable Module Installation(PMI) to reprograms the adaptive data for certain components after repairs or replacements.
4. Advanced ECU Coding
Used to reflash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements.You can use our XTOOL X100 MAX to stimulate all the possibilities of the vehicles.
After we replace control units, bad actuators, or certain parts we need to do the coding to make the replaced parts being stored and recognized by the ECU. Almost all systems that include engine, fuel, injector, gear shift, ABS, airbag system, and so on can be coded with this scanner. Before the coding, please read and record the original module’s information.
Incluing: Recode Changed Modules; Optimize Vehicle Performance; Re-Flash Hidden Functions; Renew ECUs Coordination; Reprogram; Adaptive Data; Improve Fuel Efficiency; Reduce Power Loss; Improve the Durability of Mechanical Parts, etc.
5. Bi-directional Control
X100 Max this bi-directional tool can put out the commands to ECUs, read the ecu data and monitor the operation of actuators, to precisely locate the car problems through active tests, letting you quickly know whether a specific system, component, or subsystem is functioning properly or not.
For example, If a fuel pump is not working and leads to ignition failure, it could be a faulty pump, wiring, relay, or command. By turning the fuel pump on and off via the X100 Max, you can quickly determine whether it’s a wiring, relay, or pump issue without removing any parts.
Note: Functions are not all available and vary by vehicle!!!
6.OE-Level Full Diagnostics
Read all DTC types for full systems like ABS, SRS, TPMS, Engine, Transmission, Brake System and etc, view, graph and record data PIDs, support bi-directional controls, actuation test and all other diagnostic functions.
Displays live data in text, graph for easy data review and analysis, record and playbacks live data to pinpoint troubles of sensors and components.
AutoScan & AutoVIN: AutoVIN functions allowing you to quickly figure out Vehicle Identification No. (VIN) to perform fast diagnostic.
This comprehensive scanning process is able to locate the faulty systems and retrieve the DTCs related easily. So you can work on all parts of the vehicle systems to enhance the performance, save energy, reduce emissions, and everything else.

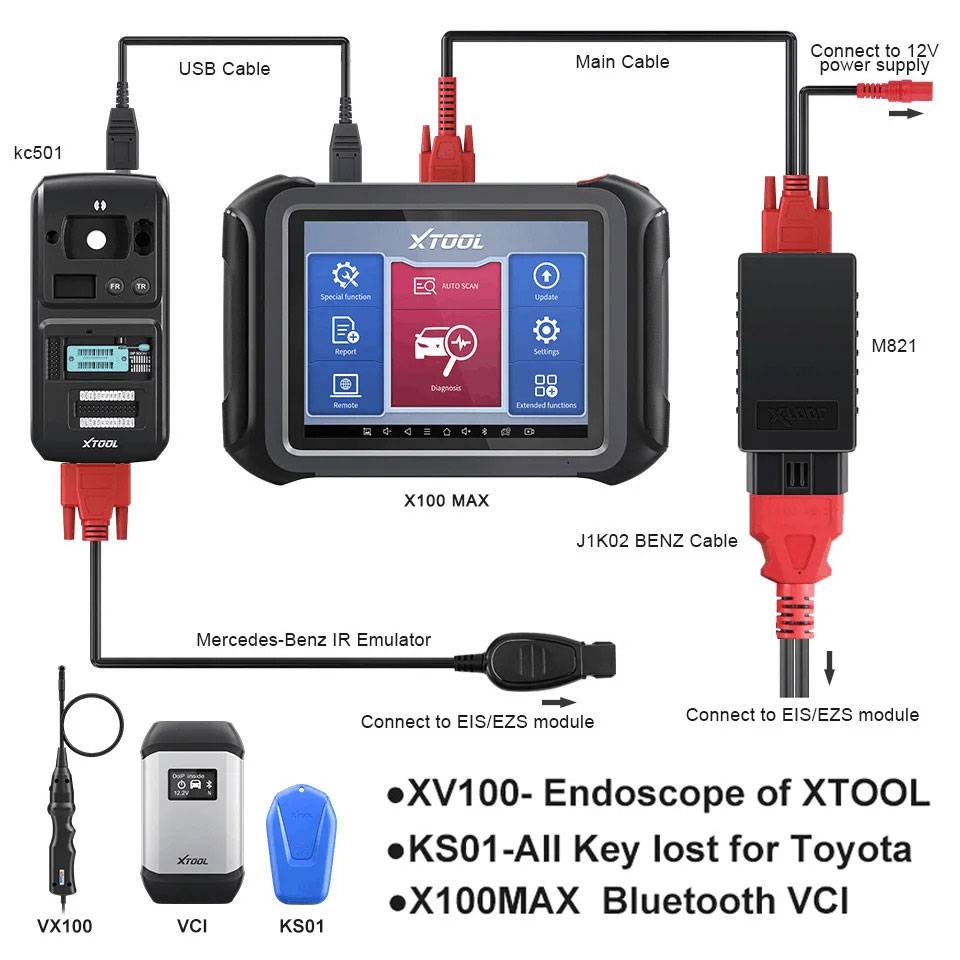

7. With KC501 Key Chip Programmer & EEPROM Adapter:
KC501:
For VW 4th & 5th IMMO
For Mercedes-Benz Infrared key Increase
Read & Write Chip
X100 MAX equipped with KC501 key programmer, allows you to proceed with advanced key programming for higher-security vehicle brands.
Key Learning and ECU Adaptation for Benz FEM/BDC
Key Learning for BMW CAS4/3/2 key, Add Key
All-Key-Lost for VW/Audi/Skoda/Seat IMMO III/IV/V
Add Key for VW/Audi MQB(VDD & JCI)
Key Learning for IMMO VW A4/A5/Q5 2015+
8. 42 Maintenance Functions
Oil Reset - Reset the oil life systems every time the oil and oil filter are changed;
Injector Coding - Code new injector numbers to replace the previous one when fitting the new injectors or after the replacement is completed;
Brake Reset - Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, etc.;
Battery Reset - Evaluate the battery charge state, monitor the closed-circuit current, register the battery replacement, etc.
Key Programmer - Help ECU to recognize the new keys when you need to add new keys
TPMS Reset - Tire pressure resetting is required to be performed after maintenance is performed;
Gear Learn - Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced. match and learn the sensor. Also used to test sensors.
A/C Relearn - operation data of the compressor is reset and self-learning is performed, and the position of the servo motor is reset and self-learning, which is used to detect and verify the fault location of the air conditioning system.
HV Battery - When the new energy vehicle is faulty and repaired, it is necessary to ensure that the high-voltage battery has no power output. Through this function, the power output of the high-voltage battery to the vehicle can be disconnected, so that the maintenance worker can perform maintenance and inspection on the vehicle safely.
Write VIN - The VIN information is stored in some important ECUs of the vehicle. After replacing the ECU, it is necessary to write the VIN number of the vehicle for verification and download the relevant ECU software. (After replacing the second-hand module, you need to flash the VIN)
X100 Max also support Throttle Relearn, Disable Transportation, ABS Bleeding, Headlight, Air Suspension, DPF, EEPROM Adapter, Reset control unit, VGT Relearn, Nox Reset, FRM Reset, EGR Relearn, AdBlue Reset, SRS, Clutch Adaption, Speed Limit, ADAS, etc.
Note: ALL the service functions available vary acorss vehicles. Please come to us to check compatibility with car VINs.
9. More Extended Function
VAG Guided Function: With VAG Guide Functions, X100MAX can perform complex functions such as special functions to help your diagnostic step by step with instructions for VW, for Audi, for Skoda, etc.
Support CAN FD & DoIP Protocol: Access new communication protocols of CAN FD (cover for GM MY2020+ models), and DOIP (for BMW E/F/G Chassis, Jaguar, Land Rover vehicle makes).
Cover 1000+ Brands: Covers 10000+ Vehicles includes American, European, Asian, Japanese brands.
Diagnostic Report Sharing & Printing: Enables diagnostic tech or mechanics to generate diagnostic reports before and after car diagnostics and maintenance services by printing it out or sending it to customers via PDF.
Online Tech Support: Users can receive remote support from XTOOL technical engineers, colleagues, or friends, by allowing them to control this tablet device on their PC via the TeamViewer software.
13 Languages:Please send the Serial Number(S/N) to change English to Spanish, Portuguese, French, Japanese, German, Polish, Russian, Italian, Korean, Dutch, Swedish, etc.
Xtool X100 MAX Support cars list:
Asia: For Toyota, for Lexus, for Honda, for Acura, for Mazda, for Nissan, for Infiniti, for Mitsubishi, for Subaru, for Suzuki, for Kia, for Hyundai, for Daewoo, for SSANGYONG, for Proton, etc
Europe: For A-udi, for V-W, for Skoda, for Seat, for Por-sche, for Opel, for Citroen, for Peugeot, for Jaguar, for Land Rover, for Lincoln, for Renault, etc
America: For G-M, for Cadillac, for Buick, for Chrysler, forFord etc
China: For Great Wall, for Chery, for Brilliance-auto, for Geely, for LIFAN, for HAFEI, for CHANGAN, for LANDWIND, for BYD, for BYD, for JAC, etc.
Also supports:
●Support For Russian For LADA/Renault and etc.
●Support For Brazil For Renault/GM/Fiat and etc.
●Support For Malaysia For Perodua/Proton and etc.
●Support For France For Renault/Megane III and etc.
Xtool X100 MAX Specifications:
Operating System：Android 510
Processor：Quad-core processor 1.8GHz
RAM：4G
ROM：128G
Display：9.7-inch capacitive, 1024×768 resolution
Connectivity：USB/Wi-Fi/Bluetooth
Camera：8-megapixel autofocus rear camera with flash
Sensor：Gravity sensor
Audio Input/ Audio Output：Microphone/ Loudspeaker
Ports：USB3.0/DC charging port/VGA port/DOIP port
Battery：3.7V, 10000mAh, Rechargeable Lithium-ion Battery
Input Voltage：12V DC
Operating Temperature：-10~50℃
Relative Humidity：< 90%
Dimensions：315.07×218.35×34.61 mm

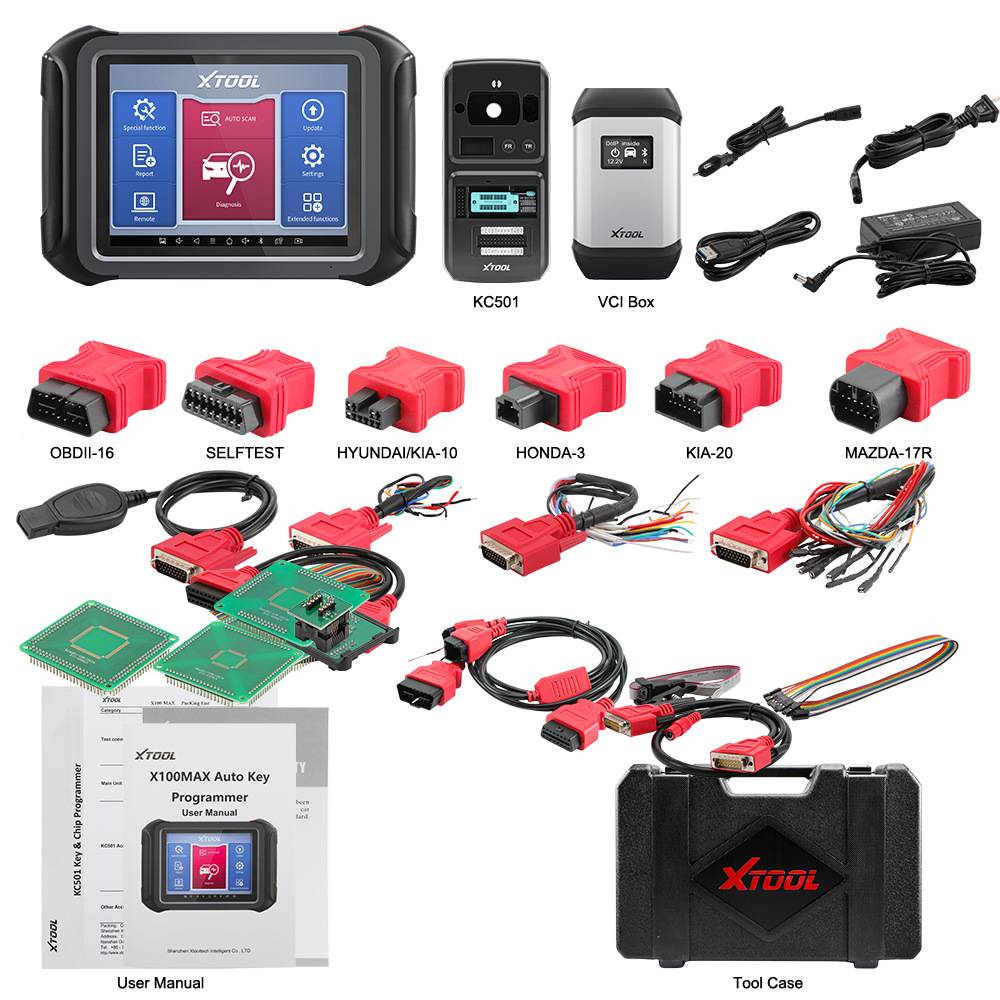

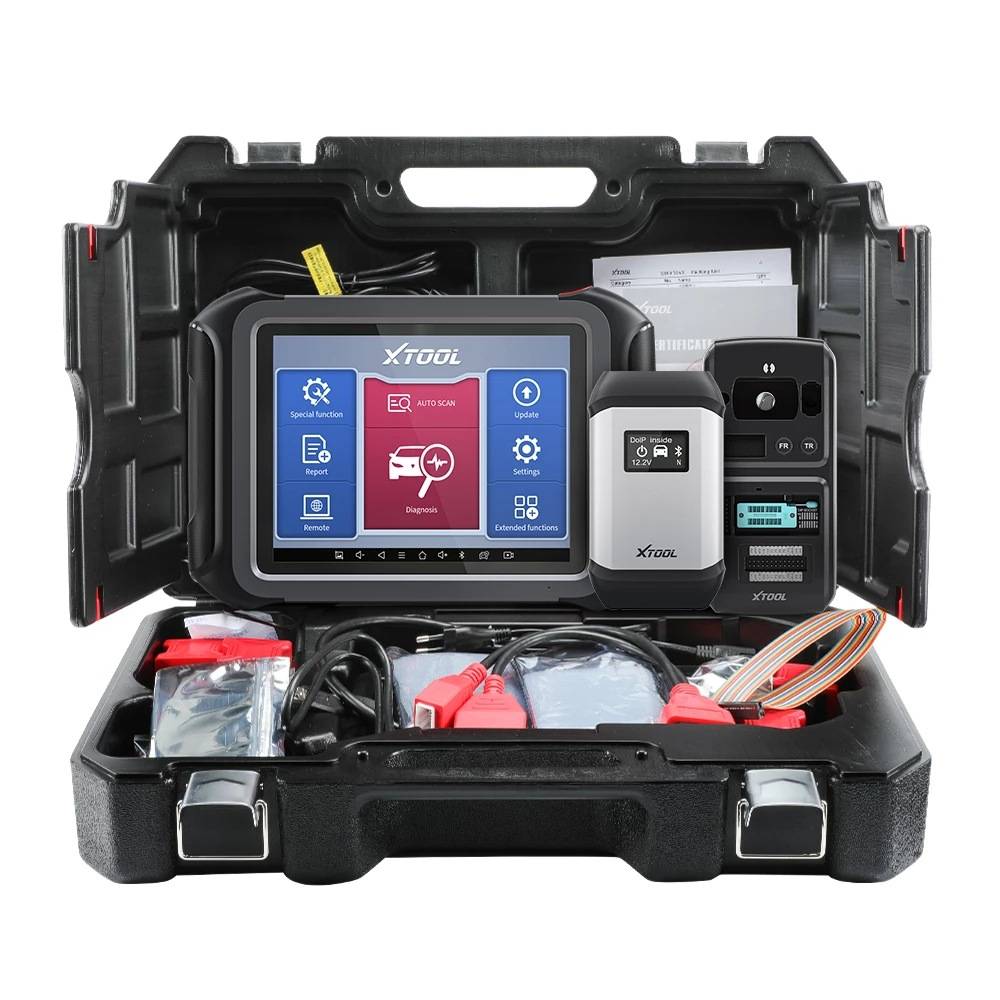

Xtool X100 MAX Packing List:
1*For Honda-3
1*For Kia-20
1*For Mazda-17R
1*For Hyundai/Kia-10
1*For Nissan 16+32
1*For Chrysler 12+8
1*OBD-16 & DB15 Cable
* Other Accessories:
1*Infrared Collector
1*FQFP64 /FQFP80 /FQFP112 /FQFP144 /FQFP176 Board
1*IC Test Stand & IC Clip Cable
1*DuPont Cable & Color Cable
1*XTA001/XTA002/XTA003 Cable
