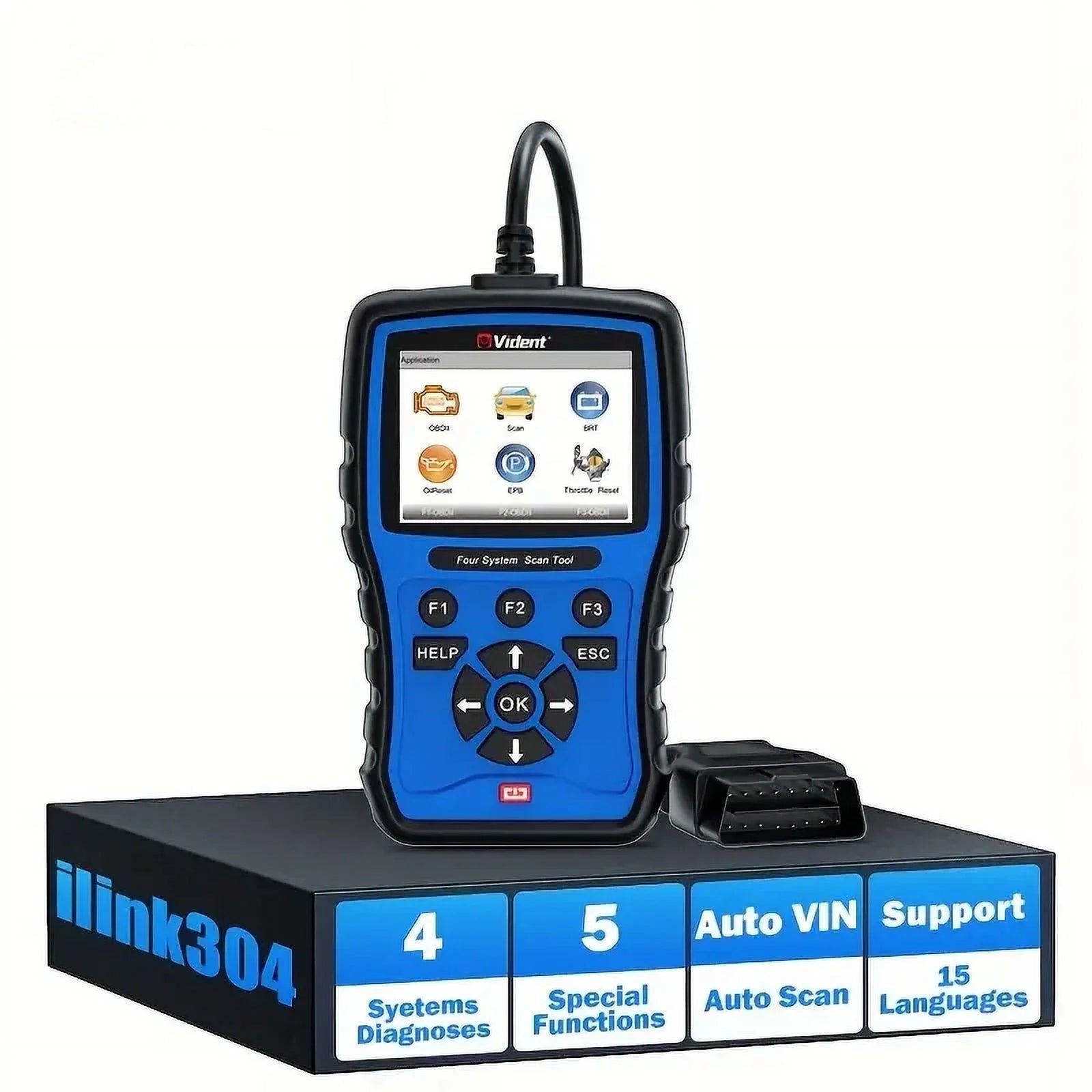

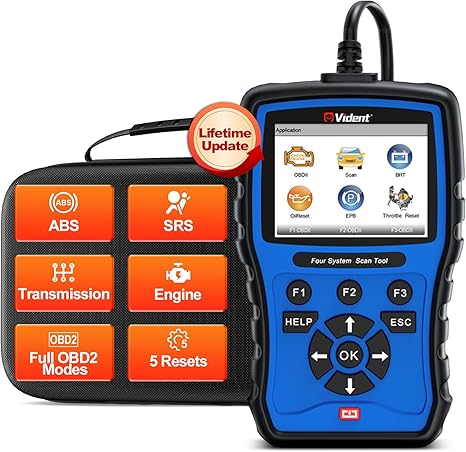

Vident iLink304 OBD2 Scanner Code Reader Scan Tool with 5 Resets Free Upgrade
Vident iLink304 is an ABS SRS Transmission Engine Car Scanner Diagnostic Tool, Supports 4 System Diagnostic BRT/Oli Reset/EPB/Throttle Reset/Steering Angle with Lifetime Update.
Why choose Vident iLink304 OBD2 Scanner:
1. Support 4 System Diagnosis Engine ABS SRS Transmission.
2. Support 5 Reset Functions Oil EPB SAS BMS Reset/Throttle Relearn.
3. Supports Full 10 OBD2 Function.
4. 2 in 1 Live Data Stream.
5. Lifetime Free update Software Via USB to PC.
6. 2.8 inch Backlit, 320X240 TFT color screen.
7. Support More than 1000+ Car Models.
8. Non-Slip Silicone Protective Equipment，Easy to operate and carry.
9. Support 15 Languages：English, Spanish, German, French, Portuguese, Swedish, Italian, Russian, Japanese, Korean, Hungarian, Thai, Slovak, Simplified Chinese and Traditional Chinese.
Vident iLink304 OBD2 Scanner Functions:

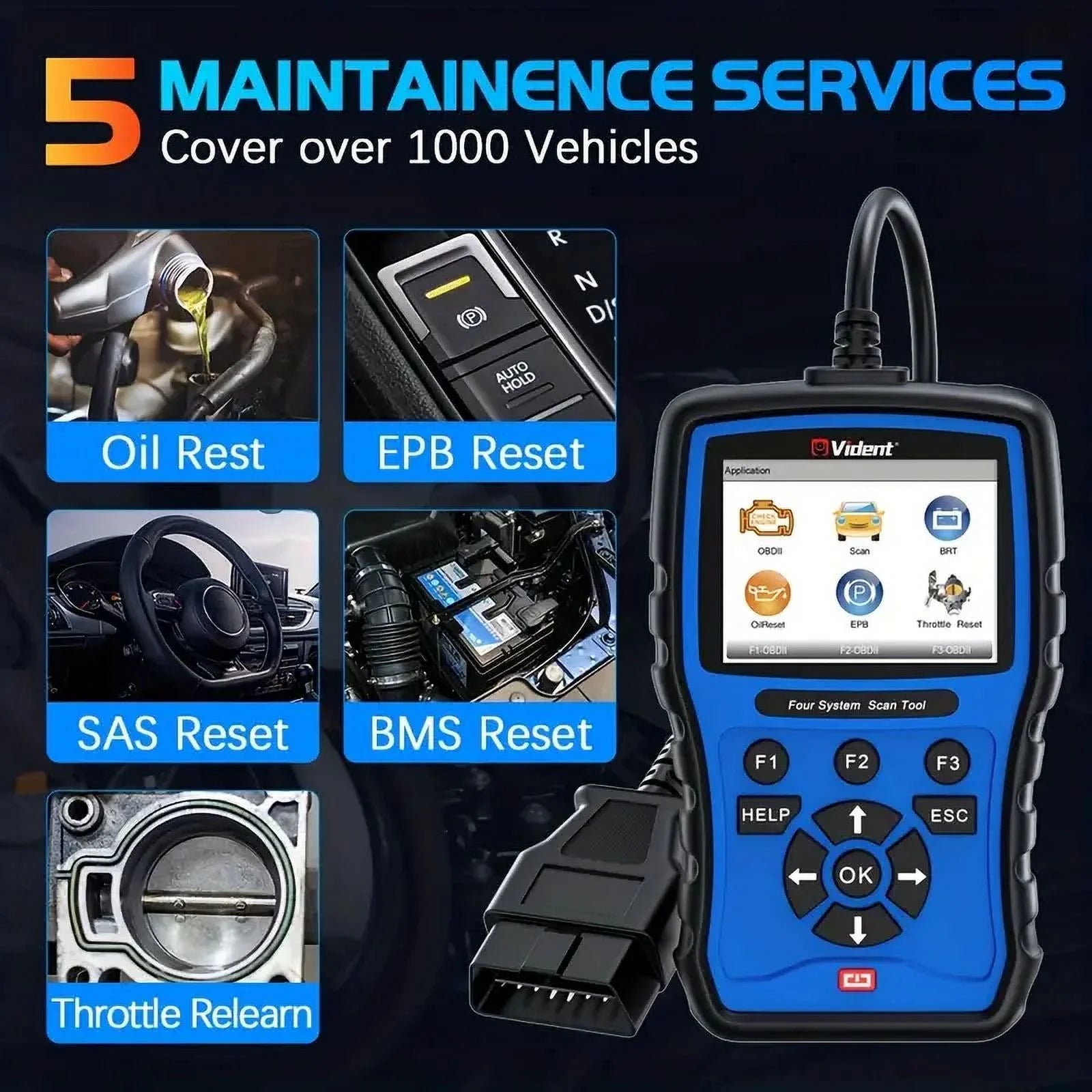

1. Five Special Functions
Oil Rest:
Resets the engine oil life system, which calculates optimal oil life change intervals based on the vehicle's
driving conditions and climate. The oil life reminder must be reset every time the oil is changed so that the system will calculate when the next oil change is required.
SAS Reset:
SAS reset supports re-calibration of the steering angle sensor. After the calibration is successfully completed, the SAS fault memory will be automatically cleared.
EPB Reset:
the electronic parking brake system and brake pads, which also supports the brake pad replacement (retraction, release of the brake pump), G-sensor and body angle calibration.
BMS Reset:
The Battery Management System (BMS) allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
Throttle Relearn:
Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately.

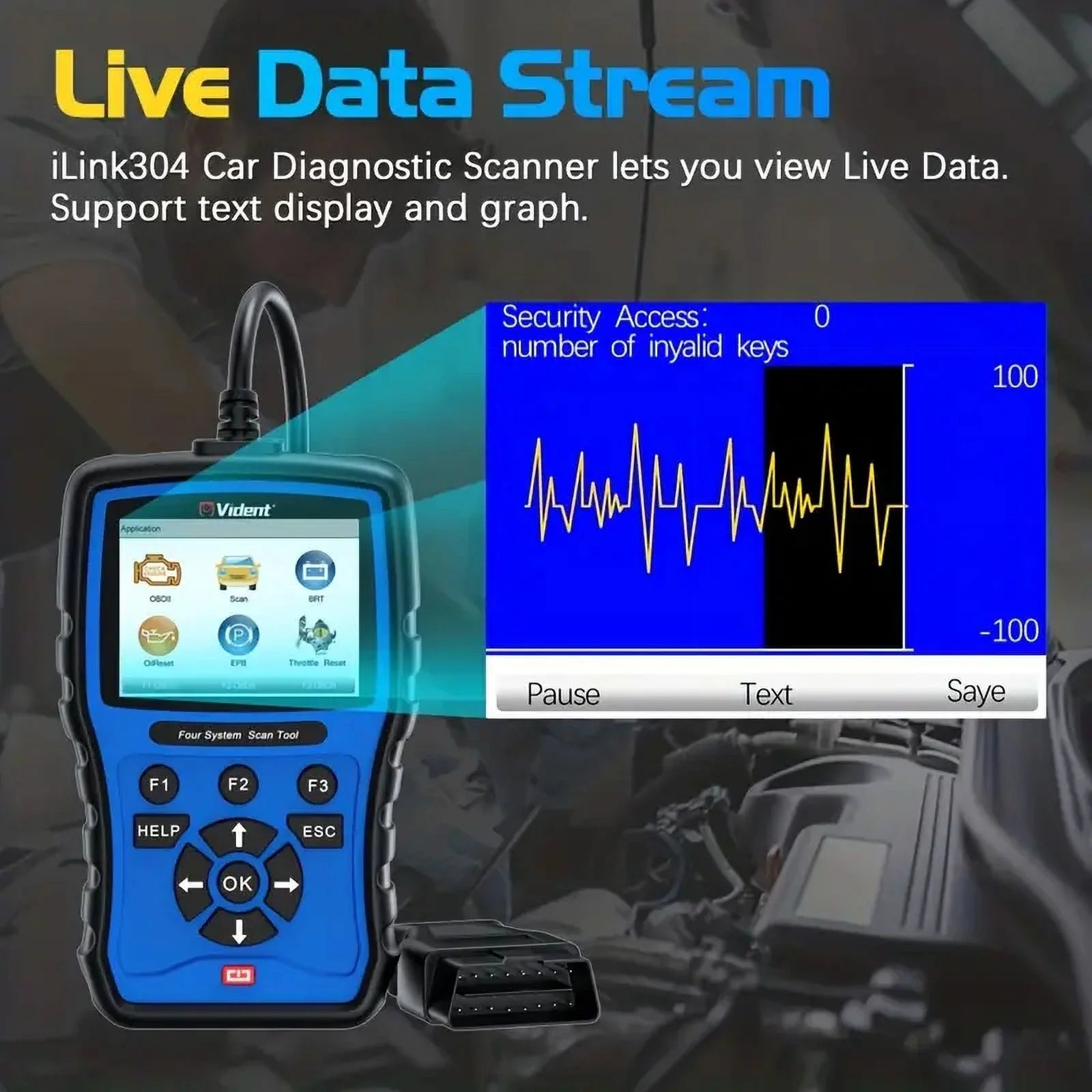

2. Live Data Stream
The Vident iLink304 Automotive Diagnostic Scanner allows you to view "live" live data. This information includes values generated by various vehicle sensors, switches and actuators (voltage, rpm, temperature, speed, etc.) and system status information (open loop, closed loop, fuel system status, etc.). iLink304 supports detailed text display, you can view all data flow items or select a certain item of real-time data with graphics.
3. Support Engine ABS SRS Transmission 4 System Diagnosis:
Engine System Diagnosis:
By reading, clearing DTCs and viewing real-time data streams, scan tools can help you easily pinpoint the cause of engine system problems and turn off associated warning lights, keeping your engine working and improving its performance.
ABS System Diagnosis:
By accessing to ABS system to view its Live Data Stream, and retrieving the fault codes, this iLink304 scanner can troubleshoot the ABS issue with a visual inspection of all brake components that caused the warning light, and turn the light off.
SRS System Diagnosis:
By detecting every electronic parameter in the SRS system to check its health status, this diagnostic tool can solve potential SRS problems in time to ensure your driving safety, and turn off the warning light of the airbag.
Transmission System Diagnosis:
By checking the transmission system, the tool can pinpoint problems by reading codes, or check health status by viewing real-time data, and turn off warning lights to ensure the correct power is going to the wheels to drive a given speed.
4. Free 10 Full OBD2 Functions
Read Code: Read extensive current,pending and permanent codes in OBD2 system quickly
Erase Code: Clear detected fault codes and turn off the Check Engine Light efficiently
Live Data: Display the real time PID data from ECU (as analog inputs and outputs, digital inputs and outputs, and system status information broadcast on the vehicle data stream). The live data produced is accurate and tells you exactly what you require to know about your vehicle.
Freeze Frame: View the vehicle's operating parameters at the moment a DTC is detected.
I/M readiness: Check the readiness of the monitoring system. It is an excellent function to use prior to having a vehicle inspected for compliance to a state emissions program.
O2 Sensor Test: Retrieve O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
On-Board Monitor Test: Retrieve the test results for emission-related powertrain systems and components that are not continuously monitored to figure out on-board monitor issues
Vehicle Information: Retrieve the vehicle information of VIN,CINs,and CVNs completely
Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their Operability.
DTC Lookup: Every code in iLink304 comes with a description to aid technicians in efficient vehicle diagnostics and repair.
Note: Please send the specific car model to seller for checking the compatibility before purchasing.

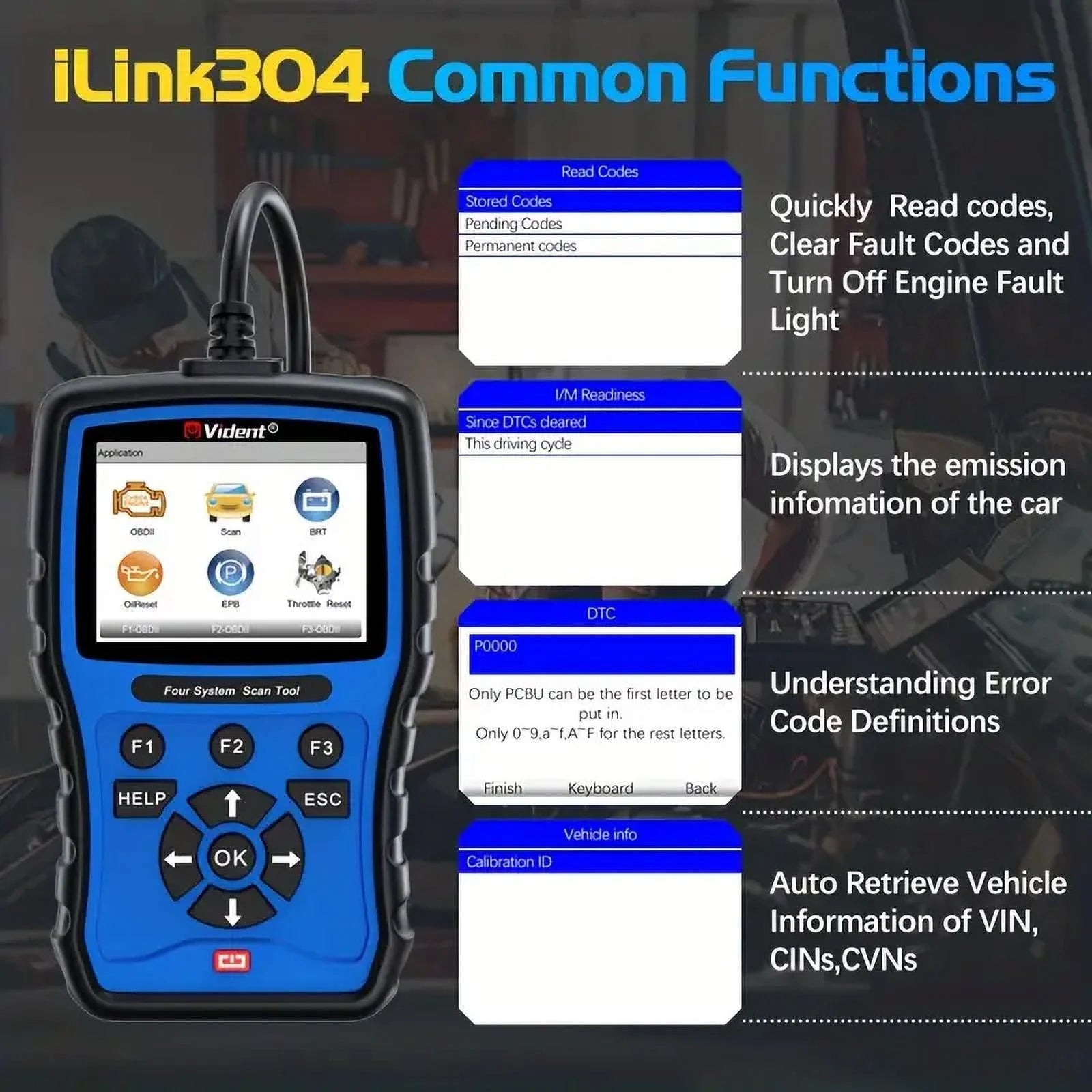

5. Advanced Common Functions
Read/Clear Codes:
Read Trouble Codes to locate the issues. After Repairs, Clear Trouble Codes and turn off the Check Engine Light
I/M readiness:
Tired of searching the meaning of these fault codes in internet? This check engine code reader iLink304 is equipped with built-in DTC database which allows you to query your confused fault codes anytime, anywhere. You can know the exact problem within seconds and minutes. It’s convenient for you to replace or buy the accessories.
DTC Lookup:
Every code in iLink304 comes with a description to aid technicians in efficient vehicle diagnostics and repair. This will save you the trouble of having to go online to look for the meaning of a diagnostic trouble code. And you can also simply click on the error code selected so as to get an in-depth definition.
AUTO VIN:
iLink304 scan tool for can quick automatically identify the vehicle all vehicles information of VIN, CINs, CVNs, which allows you to quickly match the right updated software that will enhance the diagnostic capabilities and resolve compatibility issues. Please note, Auto VIN feature is available for 99% cars. If takes long time to get the VIN code automatically, please input the VIN manually.
Vident iLink304 Support 14 Kinds of Language:
English, Spanish, French, Geraman, Portuguese, Swedish, Chinese, Traditional Chinese, Russian, Japanese, Korean, Thailand, Slovakia, Hungarian, Italian.
Vident iLink304 Wide Vehicle Coverage
Vident iLink304 Provides easy diagnosis on more than 80 American, Asian,European And China vehicle makes. Works on both OBDI and OBDII cars, SUVs, minivans, light-duty trucks sold worldwide, including the latest 2023/2024 models on some makes.
Vident iLink304 Lifetime Free Software Update and Print Data Report
iLink304 car diagnostic reader provides lifelong free software updates via the Internet. There is no limit to the number of updates and functions. All functions and models are free of charge. The main purpose of the update is to add more models, fix errors, and bring you a better experience.
iLink304 supports printing the data in the diagnostic tool to the computer, which makes it easier for you to view the data. This function allows you to send data to the technician for help.

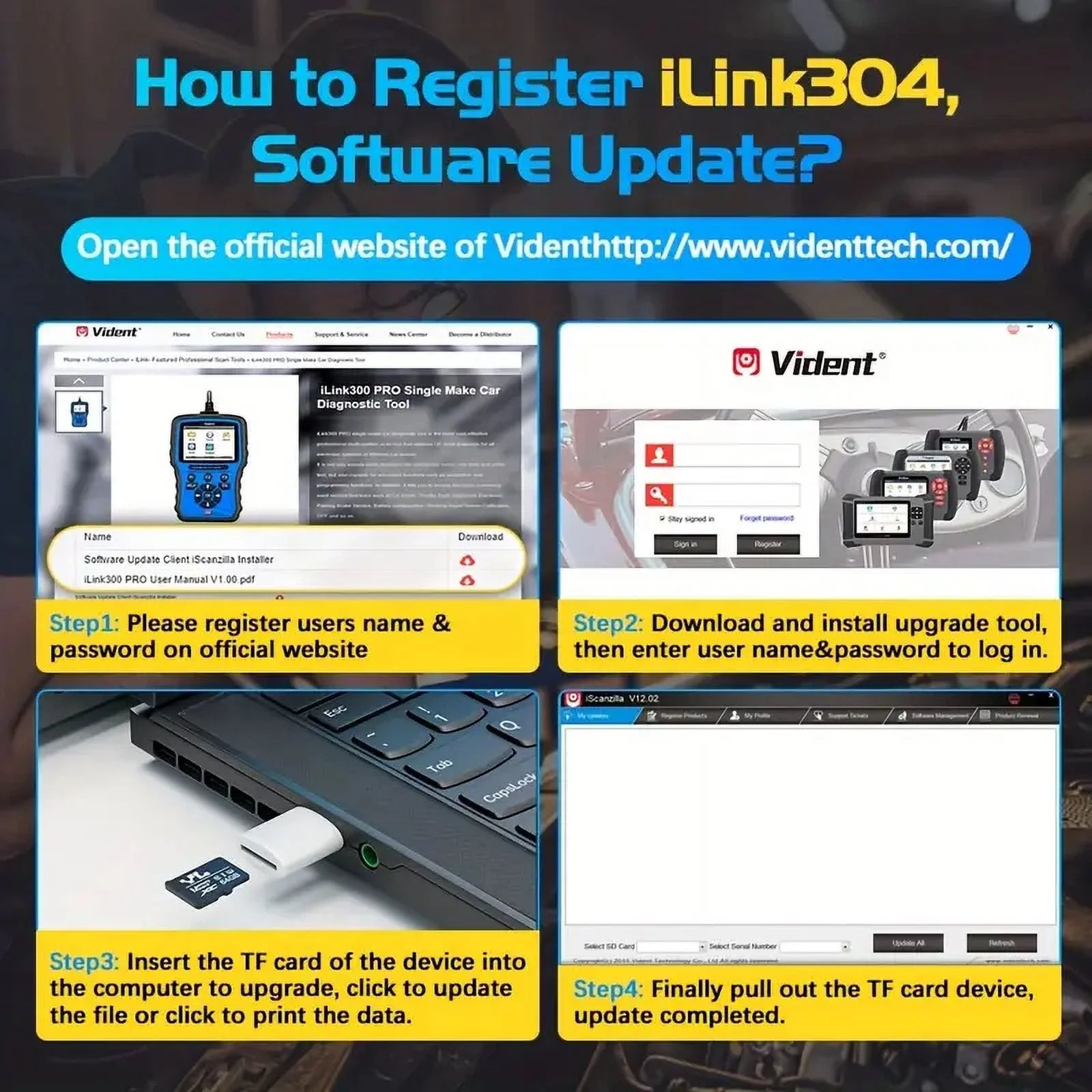

How to Register iLink304, Software Update?
Open the official website of Vident http://www.videnttech.com/
Step 1: Please register users name & password on official website
Step 2: Download and install upgrade tool, then enter user name & password to log in.
Step 3: Insert the TF card of device into the computer to upgrade, click update file or click to print the
data.
Step 4: Finally pull out the TF card device, update completed.
Vident iLink304 Technical Specifications:
Display: 2.8” Backlit, 320X240 TFT color screen
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Power: 8 - 18 V provided via vehicle
Tool Dimensions: 146*92*29mm
Supported Protocols:
ISO15765(CANBUS 11bit&29bit TP16, TP20, UDS, FIAT CAN, VOLVO CAN), ISO14230 (KWP2000), ISO9141-2, J1850VPW, J1850PWM, KWP1281, KWP2089, KW81, KW82, ALDL, SCI, DSI, DSII, LUCAS, MELCO, BENIX, ISO7800, SIMENMS_ISO1, SIMENMS_ISO2

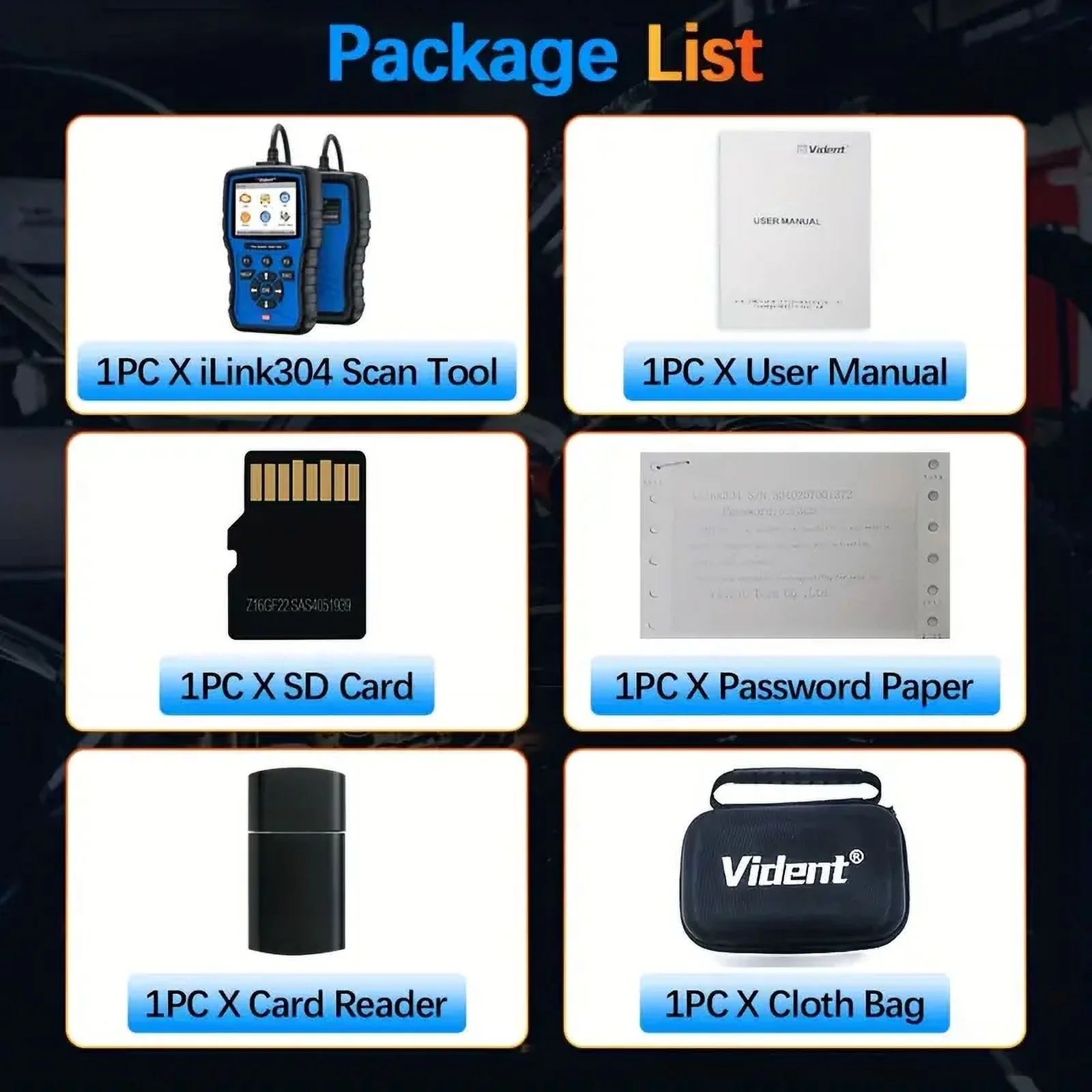

Package List:
1PC X User Manual
1PC X SD Card
1PC X Password Paper
1PC X Card Reader
1PC X Cloth Bag
