OTOFIX IM2 Diagnostic Tool IMMO Key Programmer Same as IM608 II Supports CAN FD DoIP
-
Express Estimated Delivery:Nov 28 - Dec 02
-
Free Shipping Method: Estimate dilevery 8-19 business days
Guarantee safe & secure checkout

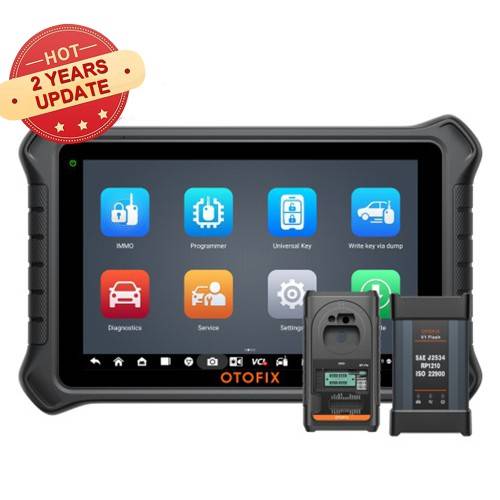

OTOFIX IM2 Diagnostic Tool IMMO Key Programmer Same as IM608 II Supports CAN FD DoIP
OTOFIX IM2 Auto Bi-Directional Diagnostic Scanner IMMO Programer ECU Coding Tool Supports CAN FD DoIP 40+ Service Functions Same Function as IM608 II
OTOFIX IM2 Product Description:
- No IP Restriction.
- 2 Years Software Update
- 2-in-1 key programmer and diagnostic scanner. Same as IM608 II
- Supports CAN FD and DoIP protocol, ecu coding and 40 service function
- The OTOFIX IM2 package includes a J2534-1&-2 pass-thru V1 Flash box
OTOFIX IM2 Auto Bi-Directional Diagnostic Scanner IMMO Programmer with XP1 Pro：
The OTOFIX IM2 has been specially designed as a one-station key programmer immobilizer to help automotive locksmiths/mechanics/technicians to analyze, diagnose, and repair vehicles’ IMMO systems faster, and is being updated continuously as vehicles evolve.
The OTOFIX IM2 stands out as an advanced and unique all-in-one key programming and diagnostic tool, combining exceptional performance with an appealing design. It offers support for OBD key programming in 80% of models and provides coverage for over 95% of common vehicle models.
OTOFIX IM2 Highlight:
- No IP Restriction
- Same function as IM608 II but cheaper in price
- 2-in-1 key programmer and diagnostic scanner.
- Supports CAN FD and DoIP protocol
- Supports OBD key programming, covering 80% of vehicle models and over 95% of common models.
- Supports AutoVIN, Read DTCs, Erase DTCs, Read ECU Info, Live Data, and Active Test.
- 2 Years Software Update: $885 per year later after that
- Supports Remote expert and online report management.
- Complete IMMO Coverage: support immobilizer functions on 80+ vehicle makes and models worldwide; 90% models for ke.y programming via OBD.
- Smart Mode & Expert Mode: for guided/automated key learning, or advanced key learning with quick access to desired functions. Confidently work with any OEM and aftermarket ke.ys and fobs.
- Advanced Key Programmer: PIN/CS access (all key lost), ke.y generation, key learning, remote learning & activation; all is made easy.
- Advanced IMMO: IMMO ECU reset/adaptation; IMMO ECU refresh/coding; IMMO restore; IMMO ECU data back-up with 64GB memory; all are easily accessible.
- XP1 Pro Chips Programmer: Read/write transponder data, ECU/MCU/EEPROM data (e.g. 9S12 encryption chip), IC card, detect remote frequency; if you require chip read write or encryption capabilities.
- Enhanced Operations: can run ke.y learning and adaption for BM.W FEM/BDC; generate IR ke.ys for Benz; add ke.y for VW/Audi III/IV/V AKL; make transponder alterations for VWs and Audi MQB; read PIN/CS for Audi Q5/A4/A5 2015-2017; and many more. (See details on page)
- Built-in Database Guidance: provide chip number, ke.y frequency, ke.y type, and maximum number of ke.ys supported by the vehicle, while ke.y programming on an unfamiliar vehicle.
- Expand features with Key Programming Adapter G-Box 2, and the Smart Key Emulator APB112(Optional).
Advanced Key Programming
The specialized IMMO services are as follows:
- Supports OBD key programming for 80% of vehicles models
- Supports key programming via OBD for Volkswagen IV, V and MQB IMMO system
- Supports Add key and All Keys Lost programming via OBD from CAS1 to CAS4 and FEM&BDC IMMO system
- Supports key programming by passing PIN code for all 2005-2020 Benz models
- Supports key programming by passing PIN code for 2019-2020 Promaster, DT-RAM, Jeep Cammander, etc.
- Supports read password for Hyundai Kia key ID46,47,4A,8A, etc.
- IMMO ECU Reset (Adaptation)/Refresh (Coding): clear original IMMO data, and activate the new IMMO part replacement making sure all IMMO-related components are functional.
- IMMO Data Backup/Restore: back up the immobilizer data such as the vehicle's ke.y programming and security settings, and restore it quickly in case of a system failure or when you need an IMMO component replacement.
- PIN/CS Access (All Key Lost): read the PIN/CS code even if losing all original ke.ys for making a brand-new available ke.y; alter immobilizer data with retrieved PIN/CS code.
- Add Key/Key Learning/Key Generation: retrieve the immobilizer data; add a new blade / smart car ke.y replacement to suit the current settings of the vehicle.
- Key Deletion: delete the unneeded ke.y to prevent the car from being stolen if necessary.
- Remote Control Learning: generate car remote replacements if losing the original remote.
All Systems Diagnostics
IM2 provides you with all special functions to quickly diagnose all modules for the majority of the makes and models on the market. It is the unprecedented diagnostic tool that you ever wanted. AutoVIN to detect the vehicles for full system quick scan. Support reading codes, erasing codes, ECU information, live data and active test, etc. The data is accurate and comprehensive.
Advanced Services
40+ Service Functions
Cloud Solution
Remote Export & Online Report Management
Advanced Services
Our professional and reliable experts are online ready to assist you with any diagnostic problem. All maintenance repoarts are stored in the cloud, allowing you to view device and test records anytime, anywhere.
2 Operating Methods: Smart Mode & Expert Mode
OTOFIX has designed this advanced ke.y programming scan tool with 2 unique operating modes to suit all experience levels and maintenance needs:
- Smart Mode: walk you through ke.y programming processes with on-screen instructions; is perfect for beginners and suitable to train new mechanics
- Expert Mode: allow you to directly perform individual IMMO functions; is ideal for higher-experienced pros with more complex needs.

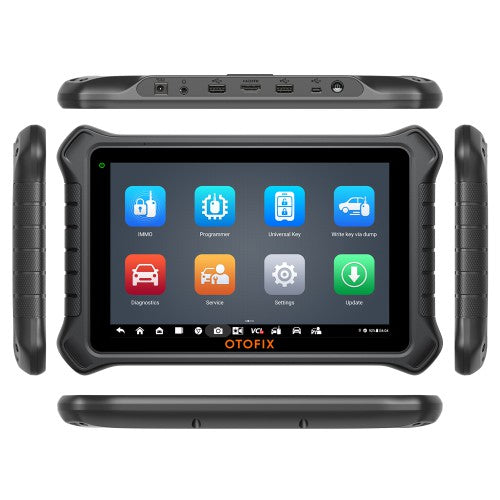

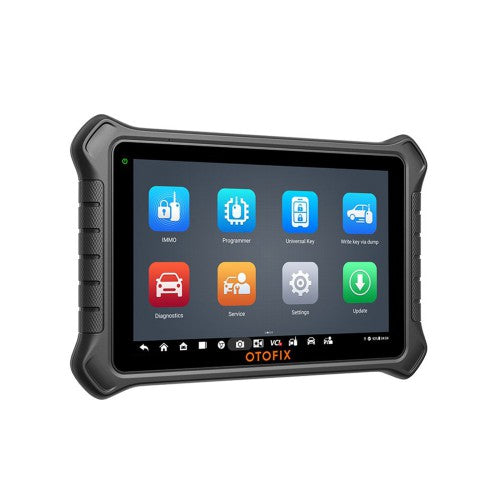

Superior Specification: Experience Seamless Navigation
- Based on the U.S. most-popular operating system Android 10.0 for fast boot-up and multitasking.
- Extraordinarily powerful Qualcomm SDM660 8-core processor.
- Ultra-crisp 10.1” LED touch screen (1920*1200) for optimum viewing.
- Internal reliable 4GB RAM & 128GB on-board memory for storing more repair materials and better performance.
- Built-in 16M rear camera with autofocus and flashlight, easy to capture repair parts and share them for extra help.
- Wi-Fi; USB 2.0; BT V5.0 + BR/EDR; SD Card (maximum 128GB); and HDMI 2.0 connections.

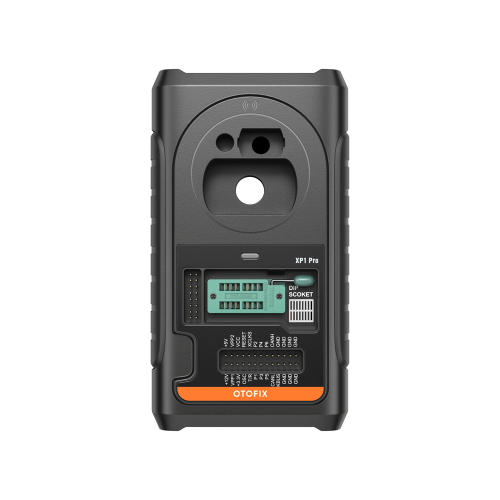

OTOFIX XP1 Pro, Useful Key & Chip Programmer
By connecting the IM2 tablet to XP1 Pro Ke.y Programmer box, you can read/write EEPROM (330 types), MCU (1541 types, e.g. Freescale 9S12), ECU (40 types), Immobilizer ECU (168 types), Odometer (9 types), Airbag (5 types), read transponder data (including Mercedes Benz infrared smart ke.y), clone/generate exclusive ke.ys, and many other ke.y related functions.
WARM TIPS: NEVER connect XP1 Pro to the vehicle via OBDII cable in case of severe damage.
2 Years of Subscription-free Software Updates
Say goodbye to yearly software renewal fees and hello to our 2 years subscription-free updates. Save more money and stay up-to-date with ease!
OTOFIX covers this ke.y programmer for all vehicles with an extended 2-year updates to support emerging developments so your OTOFIX IM2 could:
- Keep working with the newest vehicles coming into your workshop.
- Fix any bugs that may have been discovered, and optimize this locksmith tool’s functionality to provide a better user experience.
- Provide new features that were not available in previous versions. This helps to increase the versatility and make this car ke.y programmer more useful.
Repair a specific issue that has been unforeseen when the vehicle was manufactured.
Program in a new blank ECU module so that everything works properly.
Get cost-effective OE upgrades without using expensive OE diagnostic tools.

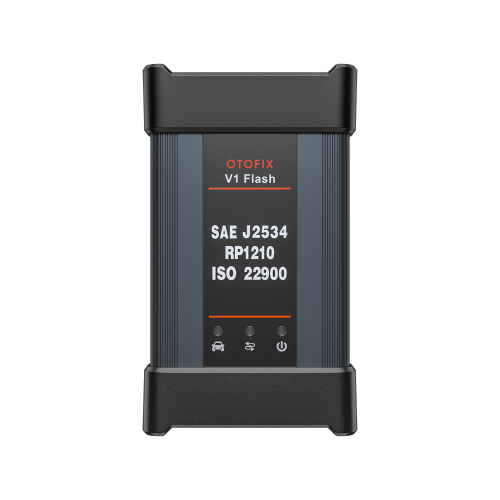

The OTOFIX IM2 package includes a J2534-1&-2 pass-thru V1 Flash box, which allows you to access cloud-based online ECU programming for all-chassis BM*W and Ben-z cars. You just need to build a stable internet connection, follow the on-screen instructions, select the appropriate execution options, and enter the correct data. If you have the OE-authorized programming software, you can also get factory-level power to obtain OE engine*ring corrections for additional car brands, such as Toyota, Honda, Volvo, VW, GM, Chrysler, Jaguar, and Land Rover, among others.
OTOFIX IM2 Key FOB Programming Tool Specification:
Work with APB112: the Smart Key Emulator (sold separately)
You can expand the OTOFIX IM2 features by connecting the XP1 Pro with APB112, a smart ke.y emulator designed to collect information that is transmitted by the ignition coil. With this accessory unit, you can:
- Identify any potential issues with the ignition coil.
- Decode the data of the vehicle's ke.y chip.
- Emulate the vehicle ke.y chip.
It supports 46, 4D Data Collection, 46 Smart Ke.y Password Calculation, 46 Chip Emulation, Toyota4D (94/D4, 98) Smart Ke.y Emulation, Toyota H (88/A8, A9, 30) Smart Key Emulation, and more.
Work with G-Box2: Key Programming Adapter for Benz & BMW (sold separately)
You can also use OTOFIX IM2 working with the G-BOX to:
For Benz:
- Aide in the programming ke.ys for DAS3 CAN EIS/EXS even if all ke.ys lost.
- Get 4X/8X faster password calculations even if all keys lost.
- Have greatly simplified operation steps on W216 and W164 EISs after 2009, no more repeated insertions and removals of IR Simulator; available both in Boot/Bench method.
For BMW:
- Have DME/DDE ISN reading and writing in Boot/Bench Mode on applicable BM.W vehicles.
The G-Box2 package contains all connections including cables, fuse connectors, and CAN Line connectors
OTOFIX IM2 vs Autel IM608 Pro vs IM508S vs IM508

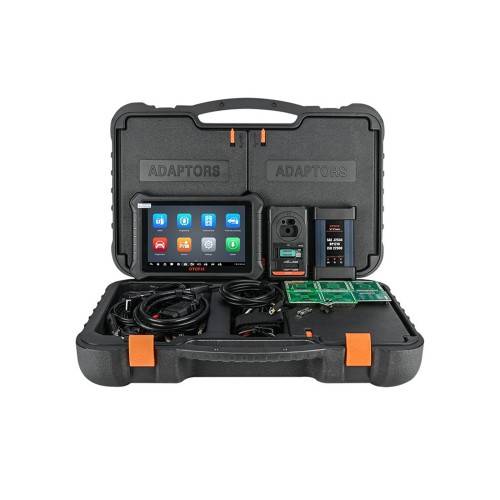

OTOFIX IM2 Package List:
1pc x OTOFIX IM2 Diagnostic Tool
1pc x OTOFIX V1 Flash
1pc x XP1 PRO
1pc x Main Cable
1pc x USB Cable (2m)
1pc x Mini USB Cable
1pc x AC / DC Adapter (12V)
2pcs x Spare Fuse (6*30mm)
1pc x Auxiliary Power Outlet Adapter
1pc x USB to Ethernet Adapter
1pc x APC101 (USB Cable)
1pc x APB104 (MCU_FQFP64 )
1pc x APB105 (MCU_FQFP80)
1pc x APB106 (MCU_FQFP112)
1pc x APB107 (MCU_FQFP144)
1pc x APB108 (MCU_FQFP176)
1pc x APB109 (EEPROM Adapter )
1pc x APB125 (Mercedes-Benz Infrared Collection)
1pc x APA002 (EEPROM Socket)
1pc x APA101 (Singal Cable)
1pc x APA103 (EEPROM Clamp)
1pc x APA107 (ECU Cable)
1pc x APA108 (MCU Cable)
1pc x APA109 (MC9S12 Cable)
1pc x Connect Cable
1pc x Quick Reference Guide
1pc x Packing List
1pc x Carrying Case
