Original V1.114.2 Tango Key Programmer With Basic Software Support Update Online
Original Tango Key Programmer is new generation of transponder programmer which support cover, read, write and generate the latest transponders.Original Tango Auto Transponder key Programmer with basic software and software update online for free.
Tango Key Programmer Highlights:
1. Latest Version: V1.114.2
2. Update: update online for free
3. Original make, with high quality and one year warranty
Tips on using Tang Transponder Key Programmer:
1. After buy it, you will need to connect to the official website and update within 28 days, or it will get locked
2. If you want to get authorization for special functions or cars, please refer to this website
3. After generating a new transponder with TANGO Programmer, you will not need any additional diagnostic equipment to program the generated transponder to the car! It will start the car directly, even on new FIAT CODE 2 system, also used in PSA Group vehicles! Only you have to write the new file back into the immobilizer system!
4. If your Tango already get G chip authorization, it can only generate G chip 10 times per day.
Tango Key Maker supported transponders list:
Philips transponders:
PCF7930-31 writing, reading
PCF7935 writing, reading, shadow memory, crypto calculator
PCF7936 writing, reading, modes password, crypto, Manchester & Biphase encodings
PCF7941 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7942 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7943 transponder, remote, Manchester & Biphase encodings
PCF7944 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7945 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7946 transponder, remote, Manchester & Biphase encodings
PCF7947 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7952 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7961 transponder, remote, Manchester & Biphase encodings
*Auto switching between PCF7936-PCF7961 windows if invalid type detected.
*Autodetect manchester / biphase
Temic transponders:
Temic 11 reading,writing to T5
Temic 12 reading,writing to T5
Megamos transponders:
Megamos (13) reading,writing to T5,emulating on PCF7930-35
Megamos (48) reading,writing,PIN,unlock by PIN,full range of memory contents,crypto calculation
Megamos CRYPTO-2 (8E) read ID,read/write EEPROM,write Cryptokey
Texas transponders:
Tiris (4C) reading
Tiris (4D) DST crypto reading, writing, crypto calculator
Tiris (4E) DST crypto reading, writing, crypto calculator
Tiris (8C) reading
Atmel:
TK5551M (T5 replacement)
SAAB reading , writing to T5
The product is in working out stages, therefore the list of the supported transponders will be developed later.
Key maker usage.
Key maker usage consists of a four steps. The 4-th step is additional and depends on a vehicle model.
1. Open an immobilizer dump file.
2. Choose number of the key you want create.
3. Place a transponder into the coil and click the WRITE button.
4. In some cases the program asks you to save a modified immobilizer dump. This dump must to be written into the immobilizer.

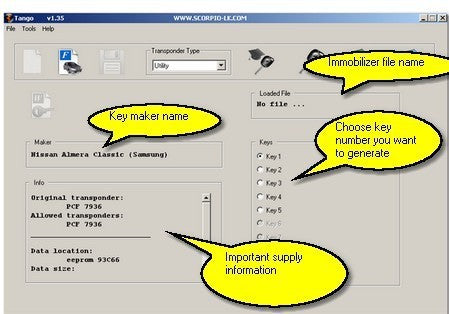

First of all, take a look at this picture. The "Loaded File" window displays the immobilizer file name. Ensure that a valid dump is stored. The "Maker" window displays selected maker name. Ensure the right key maker selected.
The "info" windows display an important information:
1. Original transponder---Informs you about type of the original transponder
2. Allowed transponder---Informs you what type of transponders is suitable for the key maker
3. Data location---The immobilizer memory may be stored in various chips, the description informs you about from where you have to read a dump. Some immobilizers can have various chipsets. In this case the field displays several possible chips. Find one of them inside of the immobilizer and read it.
4. Data size---Each chip has certain memory size, the key maker accepts files with the described size.
5. Data format---This field appears in case of 93CXX eeprom seria.
There are two standards of data layout:
Intel format and Motorola format or Little Endian and Big Endian respectively.
The data layout depends on a chip-programmer that is used for eeprom reading.This field informs you what kind of format is suitable for the key maker.Usually you can see that both formats are suitable. It means that the program can understand any data layout.
Create a key step by step:
Firstly, run the key maker interface according to the vehicle and read information in the "Info" window.
Watch theData location field describes the memory chip. Find out the chip inside of the immobilizer and read it. Save the read data (dump).
Click the "OPEN IMMOBILIZER FILE" button and load the saved dump.
The program will analyse the dump.
If the dump is correct the "WRITE" button will become active and the "Keys" window will display the range of key numbers that can be created.
Take a look at the "Info" window, the Allowed transponder field.
Ensure you use a transponder exactly the indicated type.
Place the transponder into the coil.
Choose the key position you want create in the "Keys" window.
Click the "WRITE" button.
This starts the writing process and transponder will be stored with the appropriate data.
At this point you may be asked to save a new immobilizer dump.
The program displays a standard File Save dialog where you have to save the data.
After this you will be informed about the new data saved and must be written into the immobiliser.
Write the new dump into the immobilizer. Now it is ready to operate with the created transponder.
If you are not asked to save a new file, it means that immobilizer is ready to operate with the created transponder without file replacing.
Finish.
Finish

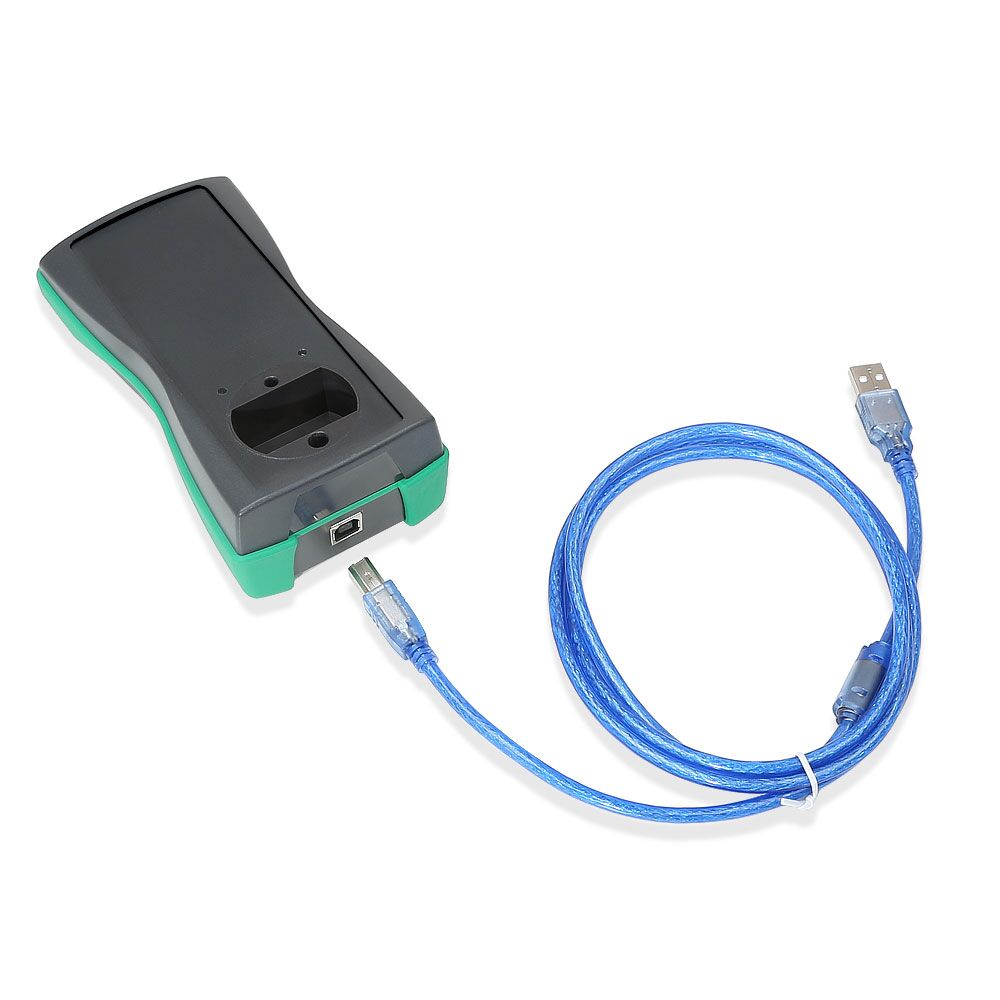

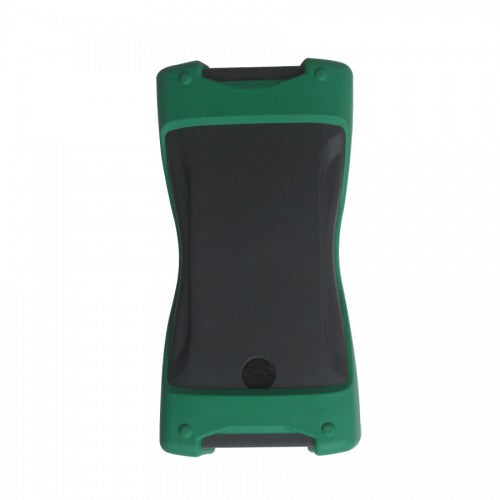

1. ABS plastic enclosure: ingress protection IP65/DIN EN 60529
2. Rubber seal: prevents sliding on a workbench shock-proof function
3. USB connection: no external power
4. Big hole: adopted to large keys
5. Three small holes: adopted to various sizes of transponders
Tango Maker Help File Update Updated Tango Maker Help file requires Tango software version 112.1 on 12.05.2018
Tango Key Programmer V1.112 Newest Update Software Release on 09.05.2018
Tango Software v1.112 Tango software added (online update)
Added new transponder MEGAMOS AES
Toyota key maker: new menu item AUTODETECT
Key maker Kia Sportage 2008- (MPC5xx,HITAG)
Key maker Hyundai Sonata 2008- (MPC5xx,HITAG)
Key maker Renault Fluence III 2012- (NEC850,HITAG)*
Key maker Renault Megane III 2012- (NEC850,HITAG)*
Fixed some bugs, incl. PCF7930-35
Tango Key Programmer V1.110.1 Newest Update Software Release
[+]SLK-05 Transponder launched! Supports Toyota’s SmartKey AES (Page1 39)emulation. This feature allows to start an engine, to Learn new keys.
[+]TangoPlus for Toyota V6.5
True Emulation via OBD of all SmartKeys Page1 39*
The only right conception to solve the “All Keys Lost”problem.
[+]Image generator Toyota Page1 39 on SLK-05.The generated
Transpinder is fully compatible to Toyota requirements that A
Customer is able to learn it vla OBD.*
[+]Cloning Toyota SmartKey 128BIT(Page1 39) to SLK-05*
[+]Key maker BCM2 A-udi A4/A5/Q5(95320,PCF7945AC)*
[+]Key maker BCM2 A-udi A4/A5/Q5(NEC,PCF7945AC)*
[+]Key maker Ford Transit 2017-(NEC,DST80)*
[+]Improved Toyota Certification ECU maker: compatibility for keys(Page1 39)
[+] Improved operations with PCF7930,31,35. Now it is possible to make Individual settings to each type of transponders.
Tango Key Programmer V1.106.0 Newly Update List
Techtream calculator: v9.30, v10.10
Key maker Citroen Jumper 2012-(95640,HITAG)*
Key maker Isuzu NPR 2007-(93C56,HITAG)
Key maker Peugeot 206 2001- (95160,HITAG)
Key maker Peugeot Partner 2002- (95160,HITAG)
Image generator Chevrolet Spark (ID8E)
Cloning of Toyota and Subaru 80 bit Keys**
Added transponders CN2, CN5 to the Clone mode
Tango Software Tango software added (online update)
Key maker Toyota Yaris 2004 (93C56,4C)*
Key maker Kia Soul 2008- (TC1762,HITAG)
Key maker Isuzu KB250 2004- (93C66,4D)
Key maker Mitsubishi Fuso Canter 2009- (93C66,4D)
Key maker Fiat Ducato 2012- (95640,HITAG)*
Key maker Fiat Burstner Viseo 2011- (95640,HITAG)*
Key maker Kawasaki Denso ECU 21175-0811 (93C86,ID4D)
Key maker Peugeot Boxer 2012- (95640,HITAG)*
Key maker Peugeot Manager 2013 (95160,HITAG)*
Key maker Renault Latitude 2010- (9S12, HITAG)*
Key maker Renault Safrane 2010- (9S12, HITAG)*
Key maker Renault Samsung SM5 2010- (9S12, HITAG)*
Key maker VW New Betle (9S12, ID48EMU)
Dump maker BCM2 (95320,NEC)*
Image generator Great Wall ID40
Format Megamos48
Fixed bug EDC17 Dump editor
Tango Software v1.80, Tango software added:
Key maker Chevrolet Cruze 2008- (24C16,HITAG)
Key maker Chevrolet Lacetti 2005- (ST7,ID4D)
Key maker Renault Mascott 2002- (93C66,HITAG)*
Key maker Renault Clio II 2003- (93C66,HITAG)*
Key maker Hyundai Accent 2004- (93C56,ID4D)
Key maker Hyundai H1 2001- (93C56,ID4D)
Key maker Hyundai H200 2001- (93C56,ID4D)
Key maker Hyundai Santa Fe 2006- (93C56,ID4D)
Key maker Hyundai Sonata 2003- (93C56,ID4D)
Key maker Hyundai Starex 2002- (93C56,ID4D)
Key maker Hyundai Terracan 2001- (93C56,ID4D)
Key maker Hyundai Trajet 2004- (93C56,ID4D)
Key maker Kia Carnival 2002- (93C56,ID4D)
Key maker Kia Sorento 2003- (93C56,ID4D)
Key maker Volvo V40 2004- (9S12,ID48)
Key maker Volvo V50 2004- (9S12,ID48)
New pictures in help file (total 315MB)
Tango Software v1.79:
Key maker Honda Stream -2006 (93C46,ID48)
Key maker Honda Fit 2007- (93C66,HITAG)
Key maker Honda bike ECU 38770-KTW-901 (93C66,HITAG)*
Key maker Honda bike ECU 38770-MCZ-003 (93C56,HITAG)*
Key maker Honda bike ECU 38770-MFN-D01 (93C56,HITAG)*
Key maker Honda bike ECU 38770-MEE-702 (93C56,HITAG)*
Key maker UAZ Hunter (TC1762,HITAG)
Key maker Suzuki SX4 2012- (TC1762,HITAG)
Key maker Mazda B3000 2001- (95040,ID4D)
Key maker Ford Focus 2000 (77012,ID4D)
Key maker Ford Ka 2007 (93C86,ID4C)
Key maker Chrysler Voyager Limited 2008- (93C86,HITAG)
Calculator Techstream 96 digits*
New pictures in help file (total 304MB)
Package List:
1 x Original Tango Key Programmer
Customer Feedback:
Tango is best tool yet from you! Works fine. Support from Scorpio is very good indeed
Customer Share:
Q: Hardware not found after install the software and driver, how to solve it?
A: You need to install the software v1.83 first, then v1.84, next v1.85(install the software from older to newer
Q: Tango Key Programmer and SuperOBD SKP-900(sk155) which one is better?
A: Tango key programmer
Q: Tango key programmer support update for free or not?
A: Update free on www.scorpio-lk.com. You need to connect the official website to update once within 28 days, otherwise the machine will be blocked. If you need special function or work it on special car model, you need to pay for it, you can check specific cost online
Q: I reprogram a BM-W key, if I can delete the reprogrammed key with Tango?
A: No, it do not support this function
Q: Is there tokens limitation for Tango? Is there any extra cost, such as update cost?
A: There is no tokens limitation for Tango. Software update online for free. But if you need special function, or want to work it on special car model, you need to pay money to open the authorization
Q: Do you have Tango user manual?
A: You can check Tango user manual in the menu after software installation.
Q: Hardware not found after install the software and driver, how to solve it?
A: You need to install the software v1.83 first, then v1.84, next v1.85(install the software from older to newer)
Q: Tango key programmer support update for free or not?
A: Update free You need to connect the official website to update once within 28 days, otherwise the machine will be blocked. If you need special function or work it on special car model, you need to pay for it, you can check specific cost online
Q: I reprogram a BM-W key, if I can delete the reprogrammed key with Tango?
A: No, it do not support this function
Q: Is there tokens limitation for Tango? Is there any extra cost, such as update cost?
A: There is no tokens limitation for Tango. Software update online for free. But if you need special function, or want to work it on special car model, you need to pay money to open the authorization
Q: Do you have Tango user manual?
A: You can check Tango user manual in the menu after software installation
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
Package will ship out within 48 hours after payment receive usual, if there is some acceident, we will inform you by order contact information.
VXDAS Policy
Kindly note:
Before returning items to us, please read and follow the instructions below. You can also contact our Customer Service, we will be glad to help you.
Please make sure that you understand our return policy and ensure that all criteria are met before physically sending any items back to us.
Return Policy
What Situation VXDAS Provides Return Policy?- Mis-Ordered Products: If you ordered wrong item by yourself, after communication with VXDAS sales you need to exchange a right item, you can return back and exchange the tool. But you need to pay both shipping cost to us and freight to you again.
- Quality Issues: Our products do not work well once you receive it or it encounters crash in delivery causing customers fail to use it, in this situation, our return policy will be open for you.
- Non Quality Issues: In some particular situation, our return policy can be open for you after our customer service learning your particular problem, and in this condition we will charge you 10% restock fee, please kindly understand.
What Situation VXDAS DO NOT Provides Return Policy?
- Mis-Ordered Products: If you ordered wrong item by yourself, or you found it is not what you want to order (not quality problem), our return policy is not applied for you, please aware of this.
- Non Quality Issues: If the item is damaged by yourself, we can not provide exchange service for you. You can only return to repair.
How to Return the Items to VXDAS?
After all details confirmed by VXDAS sales and agreed to return back the items, please help to follow the return process provided by VXDAS.
①Return Shipping Method
VXDAS will recommend to use Registered Mail or EMS to return the parcel, and please only send the items back to the shipping address our Customer Service provides. Please DO NOT use DHL/UPS/FEDEX/TNT or other courier for shipment without permission, if we cannot get the returned parcel with these methods, we will not responsible for that.
②Return Cost
If you were ordered wrong items and want to return back, you will bear the return cost.
If it's quality problem and never use before, please contact VXDAS sales to confirm the cost.
If only return for repair or exchange, customer will afford the shipping cost to VXDAS according to company rule.
Remark:
①We promise to obey the return policy when the items have problems above, but you must send back the item after we knowing your problem and what you want us to do. Please kindly contact VXDAS Customer Service to confirm all details before returning the items.
②All return for refund or return for exchange should be done within 7 days. Customer must send out the items and provide returned tracking number with shipping invoice details to VXDAS sales. Otherwise, we may cannot receive the parcel and follow the return and exchange policy.
Refund Policy
What Situation VXDAS Provides Refund Policy?
- Quality Issues: Our products do not work well once you receive it or it encounters crash in delivery causing customers fail to use it, in this situation, our refund policy will be open for you.
- Transaction Issues: If you find that the transaction was not completed by you/someone you know, please contact VXDAS Customer Service within 12 working hours to cancel the transaction and refund the unauthorized deduction. If over 48 hours, the parcel may send out already, then we have to refund after we get back the items.
- Stock Issues: If product is out of stock, we will send email to check if you want to exchange or get refund.
What Situation VXDAS DO NOT Provides Refund Policy?
Mis-Ordered Products: If you ordered wrong item by yourself, or you found it is not what you want to order (not quality problem), our return policy is not applied for you, please aware of this.
Special Products/Services: Some products or services are not refundable after they have been provided. Like software download link, software installation service and account service etc.
When Can Get Refund?
Repair Policy
In Warranty Time
All diagnostic tools and softwares from VXDAS is able to enjoy repair process for free in warranty time.
If the items from VXDAS have quality problem during warranty, you can send back to us for repair. Return back please obey return policy or contact VXDAS Customer Service for more details.
Out Of Warranty
If item is out of warranty, there will be repair fee accordingly. You may also need to pay for the shipping cost when repair process finished. To avoid the problem of excessive maintenance costs, be sure to consult with the staff on specific issues.
Before sending back to repair, please explain the item problem to VXDAS sales, we will check it accordingly once received.
Warranty Policy
One Year Warranty
All diagnostic tools and softwares from VXDAS will have one year quality warranty period.
During warranty time, customer can enjoy free technical support and repair.
Before shipping out, all goods will be test by vxdas.com. Our test engineer will check for quality, including check the basic function of the hardware and software, the appearance, the packing, the necessary accessories and power adapter plug standard.
7 Days Return
If the product has quality problem, VXDAS guarantees to replace a faulty product or full refund after receiving the products in 7 days.
Lost Products
If products get lost in delivery, or you haven't received your item for a long time, please contact our customer service timely. We will deal with this ASAP. Please do not deal with it all by yourself, we will help to check and provide solution. Usually we will provide tracking number and tracking link timely. If products get lost on the way and we'll get messages from couriers, then VXDAS will contact you for further solution like resend the parcel or refund.
The Warranty Policy fits for all products except some products which state the warranty specially in description. Like some chips, it doesn't have any warranty after order. Hope you can understand.
According to the different problems, the VXDAS Sales will be responsible for providing the best solutions under the agreement of both parties, such as replacement, refund, discount for next order etc.
The Warranty Policy fits for all products except some products which state the warranty specially in description.
we understand that choosing the right product is crucial
VXDAS Strives to Provide A Hassle-Free Purchasing Journey
