MB AK500 PROG2 Super Programmer for B-enz Support car & truck key programmer
MB AK500 PROG2 Key Programmer is for Mercedes Benz cars, it can read and write data/keys more quickly and safely. AK500 Prog 2 is an advanced tool of car ecu repair and programming, odometer adjustment and key programming as well.
AK500PRO2 AK500 Pro2 Super Car Key Programmer For B-enz Without Removing ESL ECU
AK500PRO2 Features:
1. Update: By CD
2. Computer system requires: XP system
3. Language: English
4. Car coverage: Support for Mercedes Benz and for Volkswagen Audi
Powerful Motorola MCU Programming Function. Directly reading dums of EEPROM (HC908) and Flash (HC912, HC9S12, HC9S12X)
for motorola MCU, in support of the engine ECU of Benz, VW and Audi etc. MPC (MPC555/556, MPC561/562, MPC563/564), External Flash
(MB58BWO 16, 29BL802C, AM29BDD 160, S29CD0 16, DE28F800 etc.) and External EEPROM (M95xxx) An advanced tool of car ecu repair
and programming, odometer adjustment and key programming as well.
AK500 PRO2 Support Models:
1. for B-enz:
W220/W220 "Keyless Go" W208/W210/W220/W203/W215/W230/W209/W219/W211/W230/W215 EEPROM(M95xxx)
2. for Volkswagen Audi:
MPC(MPC555/556,MPC561/562,MPC563/564),external Flash(MB58BW016,29BL802C,AM29BDD160,S29CD016,DE28F800 etc.) and external EEPROM(M95xxx)
Top 14 Reasons To Get AK500 Pro2:
1. Faster and safer to write MCU.
2. Internal Benz original factory key generator.
3. Support NEC fast renew, Motorola MCU safe read and write.
4. Support infrared read and write NEC key and Motorola MCU key.
5. Support Benz read and write "Key-less go" Key.(Only this machine support)
6. Support through OBD port active Key-less function.
7. Support ESL fast unlock, no need 32G database.
8. Support through OBD read and write SBC data, easier for change SBC control unit.
9. Match and support function "Keyless Go" of Benz Infrared Key;
10. Support Benz Infrared keys lock and unlock for EIS+ESL+ESM , the leading technology all over the world;
11. Support Directly reading EEPROM for BENZ DAS( 1995-1998 )via OBD, can to unlock DAS when you lost all keys and DAS is locked;
12. Read and write the ESL of E/Class and C/Class via K_line, no need remove ESL;
13. Support Benz ECU's flash(29F400 and 29F800) generate key data. Need use STAR 2000 to do ECU coding.
14. No need to choose the MCU type of EIS. When load EIS file, recognise EIS file, and generate key file. If your MCU is HC705,software will automatically suggest "load next EIS file of HC705"

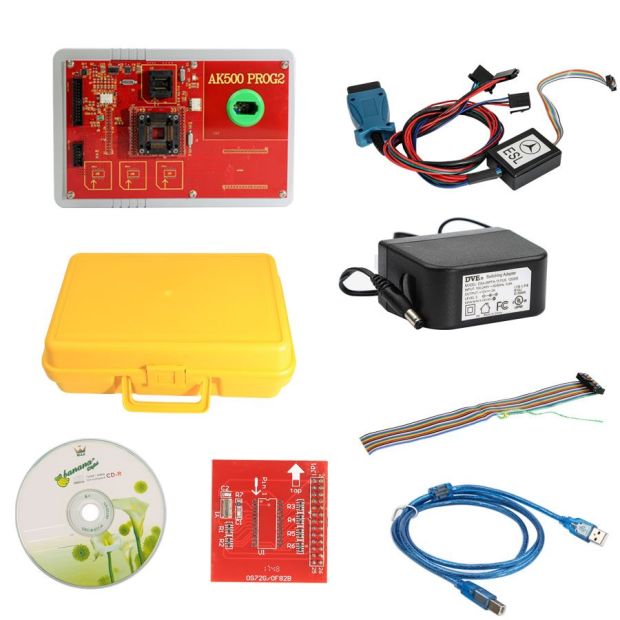

Packing list

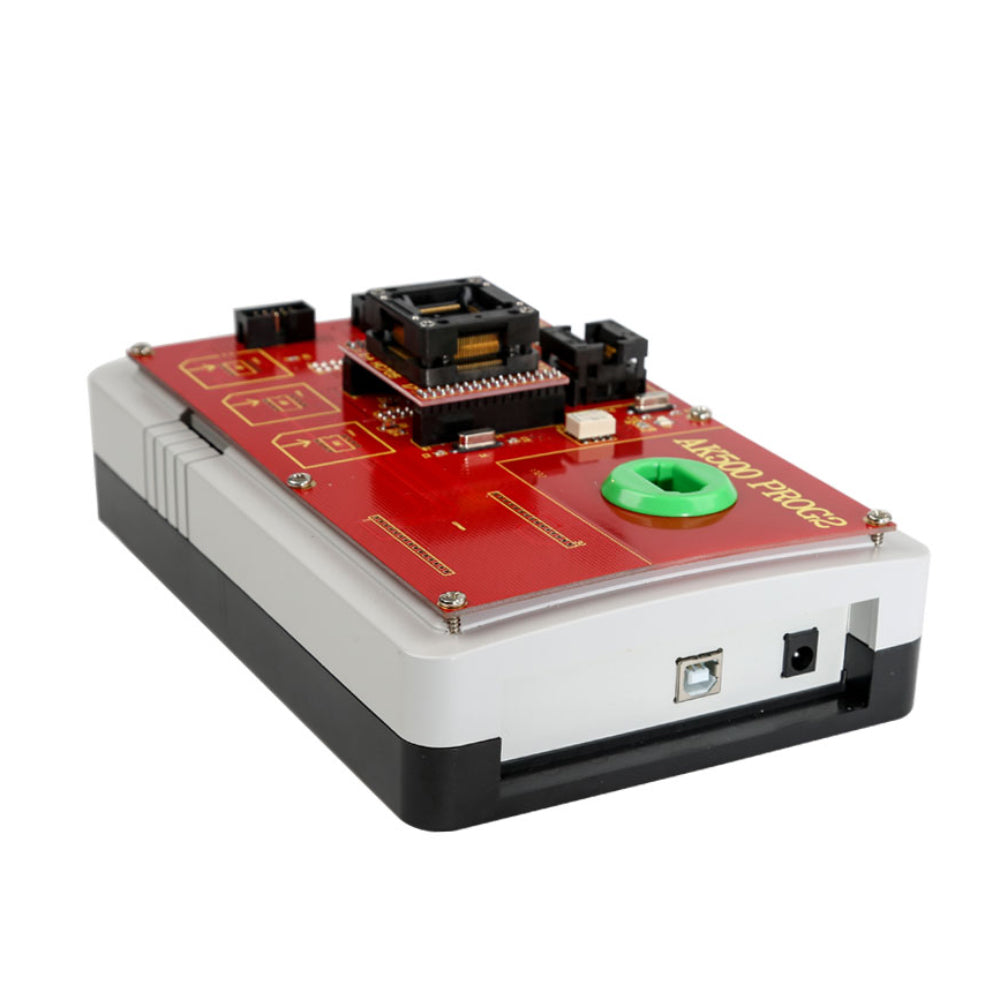

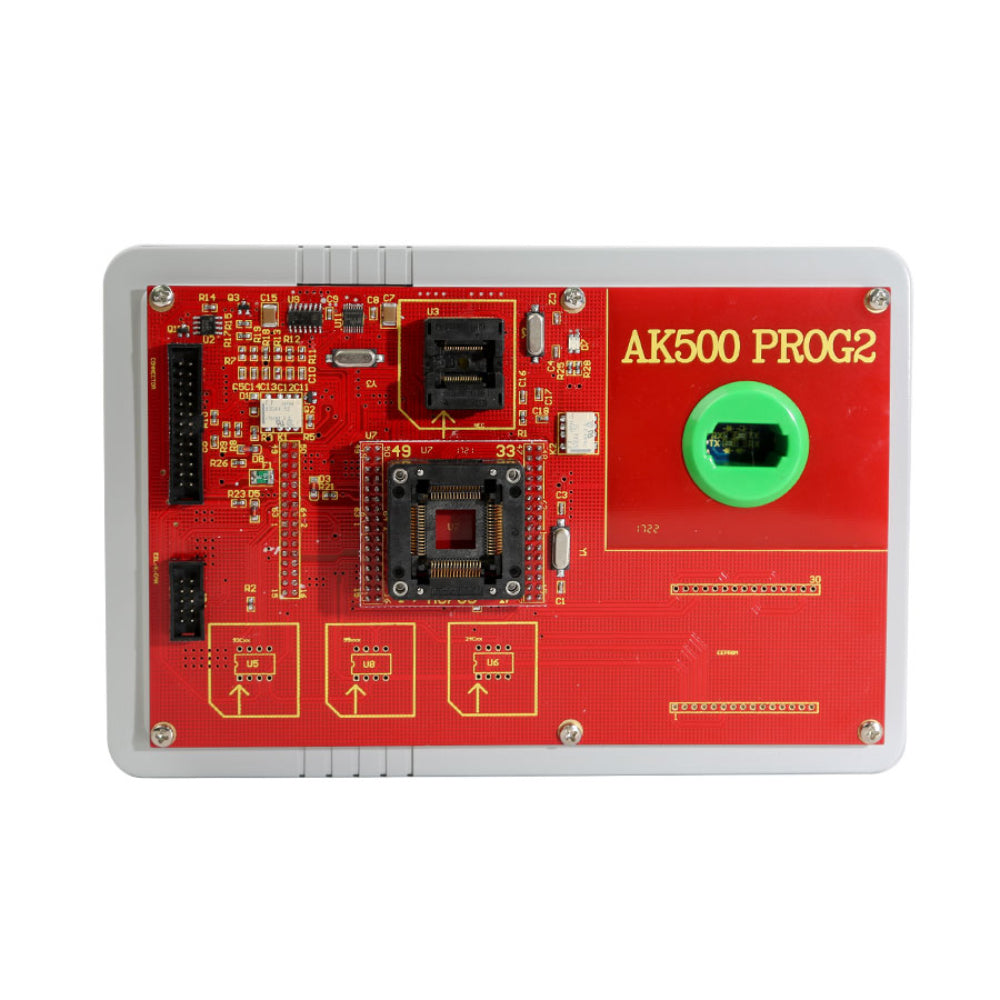

- 1pc x AK500+ Multiplexer

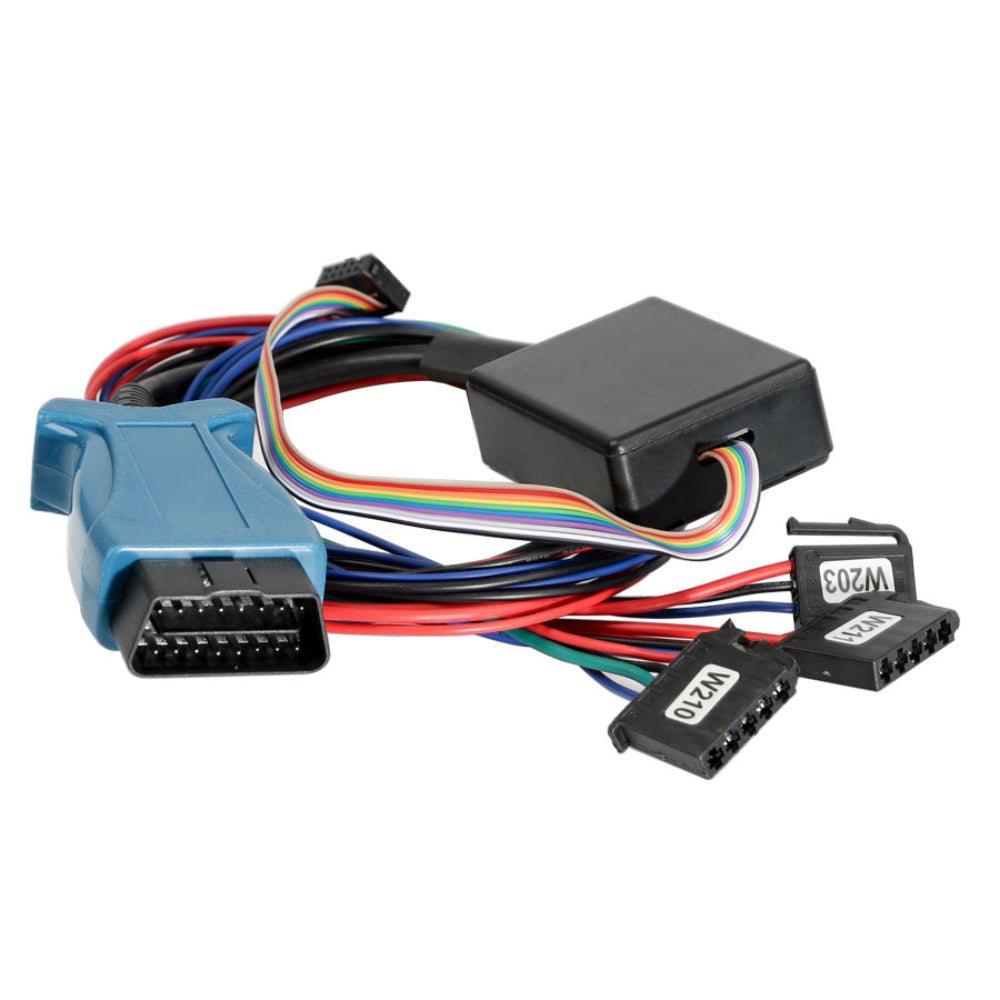

- 1pc x ESL Main Cable

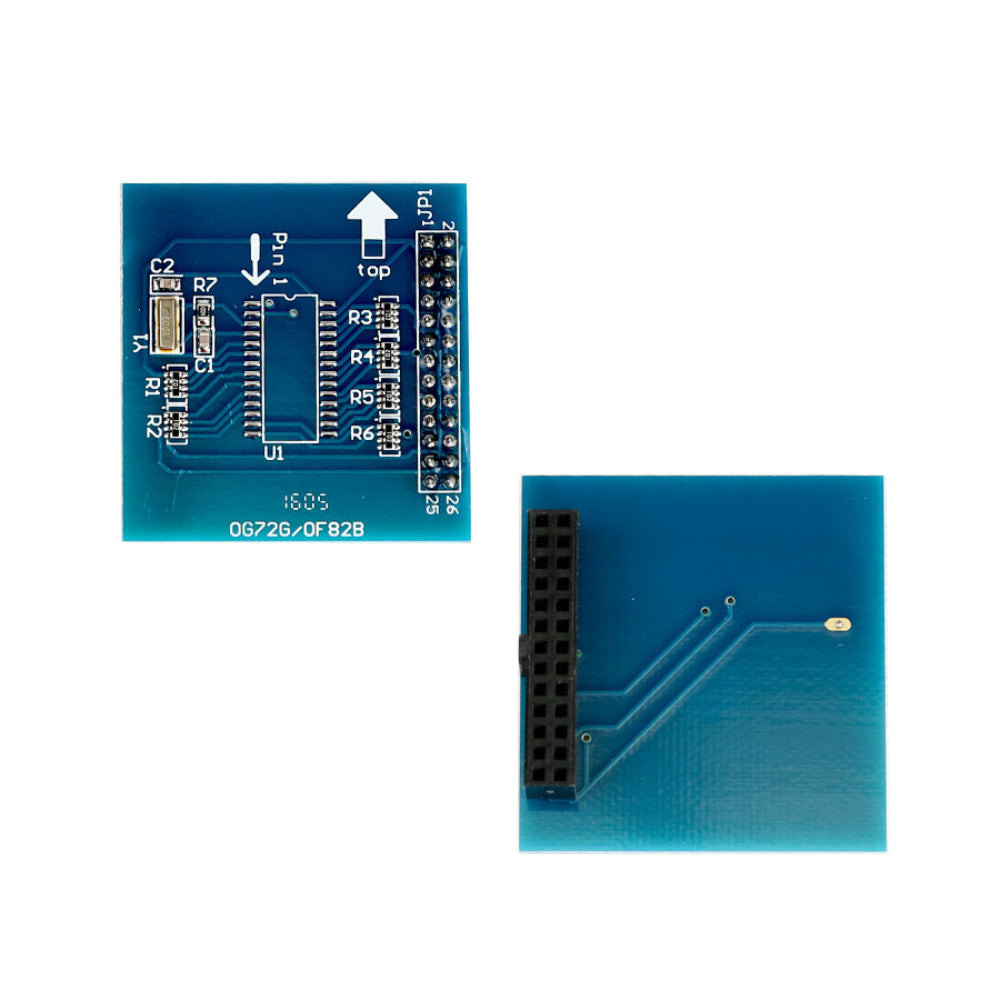

- 1pc x Chip Board
- 1pc x USB Cable
- 1pc x Power Adapter
- 1pc x CD
- 1pc x Circuit Cable
FAQ:
Q: I want to do these two functions: Read and write NEC KEY via Infrared and Fast erase NEC CHIP via socket, can AK500+ do it well?
A: For the function " Read and write NEC KEY via Infrared ", it just can old keys for this function, can do new keys.
For the function ” Fast erase NEC CHIP via socket ", the key chip should be NEC chip, and can be renewed.
Q: I have just tried to renew nec chip,this time without any chip on the socket,but it is still trying to erase,should i not get error message because there is no chip on socket??why is it still trying to erase when there is no chip on socket?
A: AK500 can not renew NEC chip via socket. You must remove the key chip, and put the nec chip to chip dashborad to renew it.
Q: I can not find 95xxx from A500+. Because I don't have 95 adapter to connect to 95xxx on the AK500+ main unit, i can not read the ECU and ESM data. From the video, there is someone telling that the 95xxx is on the package box, but i have not found it. Please provide me a 95xxx chip adapter, or i can not use it normally.
A: Now AK500+ SKC does’t have 95xxx chip adapter, you don’t need to remove ECU with SKC. Only old AK500 has 95XXX. It is easier to use for AK500+ with SKC calculator than AK500 with 95xxx chip adapter.
Q: How to write keys with AK500+ KEY Programmer?
A: You can write keys steps by steps as following:
1.Remove EIS
2.Open EIS
3.Connect the EIS according to the connction picture
4.Read EIS
5.Save the data
6.Open SKC key bulider file
7.Download EIS Dump File
8.Generate Key file
9.Put blank key to IR socket
10.Write key
Q: How to make new B-enz key?
A: It is different for making new benz keys and old mecedes benz keys, please do it as following steps:
-Removed EIS
-Desolder CPU 1 from EIS
-Read data from EIS - CPU 1
-Save
-Close AK500+
-Open SKC Calculator
-Dowload the bin file
-Select keys for calculating result
-Calculate keys (About 7-10 minutes)
-Close SKC Calculator
-Open AK500+ again
-Click Step 4 to write the key option via IR
-Insert the key
-Load key dump file
-Click on programming
Q: AK500+ key programmer can do used b-enz keys? how to erase the data from the old mercedes keys? can AK500+ do this?
A: There are some old keys which can not be reused again. If your old b-enz key can be reused, first you need to remove the chip from the key, then you can erase the data by renewing the key.
Q: How to read EIS DATA?
A: First you need imopt EIS data to SKC, then get the key information, after writing the key data to the new keys, then you can start the car.
