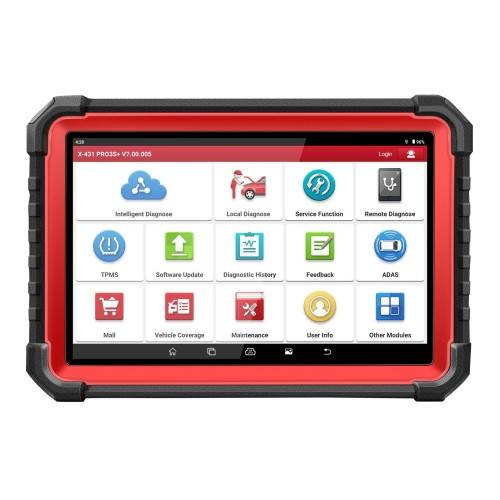

LAUNCH X431 PRO3 S+ V5.0 With DBSCAR VII Bluetooth VCI Supports CANFD and DoIP
-
Express Estimated Delivery:Dec 29 - Jan 02
-
Free Shipping Method: Estimate dilevery 8-19 business days
Guarantee safe & secure checkout
LAUNCH X431 PRO3 S+ V5.0 With DBSCAR VII Bluetooth VCI Supports CANFD and DoIP
LAUNCH X431 PRO3 S+ Supports Topology Mapping, 37+ Reset Service ECU Coding AutoAuth，With DBScar VII supports CAN FD and DoIP protocol
Launch X431 PRO3S+ Automotive Full System Diagnostic Tool Support AutoAuth FCA SGW and Guided Functions
- With DBScar VII supports CAN FD and DoIP protocol
- Supports full system diagnostic, ECU coding, VAG guided function and 37 special functions
- Supports Topology Mapping diagnosis
Launch X431 Pro3S+ V5.0 Global Version Bi-Directional Scan Tool：
LAUNCH X431 PRO3S+ V5.0 achieves full car model and full system vehicle trouble diagnosis, which includes reading DTCs, clearing DTCs, reading data stream, actuation test, and special functions. Launch X431 Pro3S+ V5.0 device developed based on Android 10.0 system. It uses a 2.0Ghz 4-core high-efficiency processor, 4GB RAM + 64GB ROM large storage, and is equipped with a high-endurance battery.
Global version. No IP limitation.
LAUNCH X431 PRO3S+ Highlights:
-
The tablet has a higher version system, larger storage, and longer battery life, making diagnosis faster, more stable, and more durable.
-
Upgraded to DBSCAR VII diagnostic connector, supports CANFD and DoIP
-
Supports Topology Mapping diagnosis
-
Supports EV diagnostic kit (NEW)
-
With 8-core qualcomm-snapdragon processor
-
ALL-System ALL-Function Diagnostics + Full Bi-directional Control ((Active Test))
-
Supports ECU Coding & Online Coding & Key Programming
-
Wide car model coverage, strong diagnostic function, supports full system diagnosis of all supported car models
-
Support VIN code automatic identification function to quickly enter diagnosis
-
Supports reading version information, code reading, code clearing, reading data stream, action testing, coding, matching, etc.
-
Supports VAG Guided Function for compatibility with VW, AUDI, SKODA, SEAT (Step-by-Step Guide)
-
Supports Auto auth for FCA/SGW
-
Supports tire pressure activation, programming, learning and detection functions with X-431 TSGUN
-
Supports anti-theft programming with X-PROG 3
-
Multiple expansion modules support: endoscope, BST-360, oscilloscope, sensor, wifi printer
-
Supports 37 special functions such as maintenance light reset, throttle matching, steering angle reset, brake pad reset, tire pressure reset, etc.
-
Work with HDIII Heavy Duty to Test 24V Truck.(need extra SmartLink C V2.0). It not only supports passenger car diagnosis but also supports commercial vehicle expansion.
-
2 Years Free Software Subscription
-
New app supports EV diagnostic kit
-
Multi-language Supported (24): English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Hungarian, Finnish, Simplified, Czech, Turkish, Greek, Arabic, Danish Persian, Romanian, Serbian, Swedish, Simplified Chinese, Traditional Chinese.
- Warm Tip: The factory presets the language and the model software in English. Please contact us to change the language.
Big surprise (upgraded Bluetooth connector): 3S+ scanner Bluetooth connector adopts advanced Qualcomm Snapdragon chip, which further improves the stability and reliability of the connection, reduces the interference and packet loss phenomenon in the transmission, and the transmission speed is 8X faster than before, and the working efficiency is improved by 65%. It has considerable advantages in terms of speed, stability, power consumption, positioning, etc, providing users with a better experience and a wider range of application scenarios. Bluetooth connectors are more stable and efficient than the X431 V 4.0.

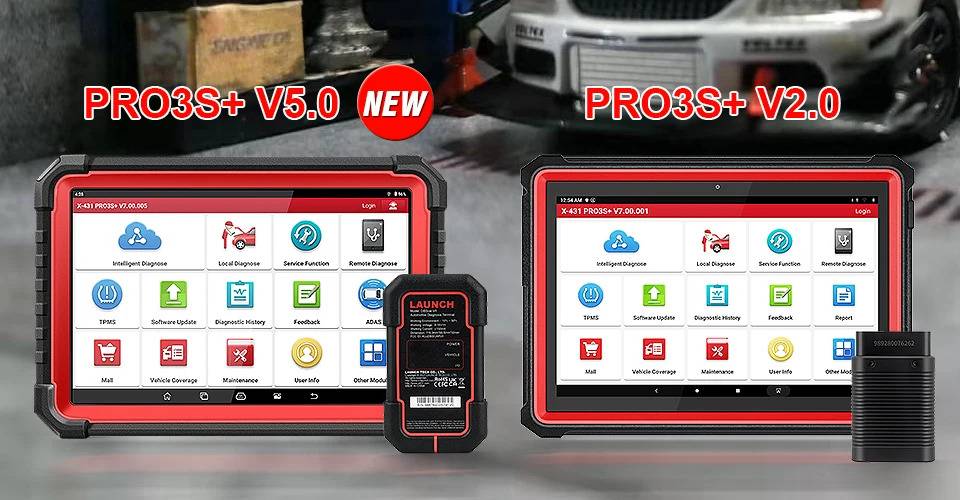

X431 Pro3s+ V5.0 vs X431 Pro3S+ V2.0:
V5.0 comes with DBscar VII supports CAN FD and DoIP protocol.
V2.0 with DBscar VI, does not support CAN FD protocol.
Launch X431 Pro3s+ V5.0 vs X431 V V 4.0:
1. Advanced Hardware:
(1) A multi-touch, Android 10.0 tablet-style capacitor screen for quicker, more smooth and comfortable experience.
(2) Advanced 8.0 core Qualcomm Snapdragon processor to be 8X faster than X431 V pro 4.0 ,smart and more stable with larger 4GB RAM and 64GB ROM (128GB extendable) to boost quickly ,speed up your diagnosis work and store more vehicles repair datas for you.
(3) Upgrade dual-band 2.4GHz & 5GHz wireless connection, the transmission rate is 12X faster than X431 V 4.0. The built-in bluetooth module provides easy connection to vehicles in any location to work comfortably, leaving bad weather outside, and allows to scan scanning of vehicle that will not fit in a bay or lift.
(4) 10.1-Inch LCD Touchscreen with 1920 x 1200 High-Resolution:Brings a clear and vivid viewing.
(5) 6300mAh Rechargeable Battery:Long-lasting,makes it running faster, avoid frequent charging.
(6) you can install any Software application,like Tiktok,Facebook, instagram on the scanner, etc.
(7) Bluetooth connector has the BDScar VI upgraded to the DBScar VII, so you'll receive a brand new upgraded connector
Launch X431 Pro3S+ 5.0 Functions:
1)ECU Coding
ECU Coding function is used to re-flash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements, providing ways for the issues of driveability, fuel efficiency, power loss, fault codes, durability of mechanical parts
ECU Coding(SCN Coding): The ECU coding function is used to reflash the vehicle control module, which allows you to reprogram the adaptive data of certain components after a repair or replacement has been performed, providing a method section for driveability, fuel efficiency, power loss, fault codes, and mechanical durability issues.
ECU REPLACEMENT: When an ECU/module is damaged, you have to replace it with a new one. After replacing the ECU/module, you have to follow the strict procedures of the manufacturer to match, learn, code, or even program it before it functions normally. Otherwise, the car cannot start or some parts cannot work normally. Featuring ECU/Module replacement functions, LAUNCH X431 pro 3 can help you initialize, match,relearn, or code the newly replaced ECU/module to get it back on track.
(PMI) Programmable Module Installation : LAUNCH X431 PRO3S apex Support PMI function, Compatible with Ford /Lincoin/ Mazda etc.This function is used when you need to replace a module (replace ECU) or initialize a module.No need using the J2534 or buying a subscription.
Brush Hidden Functions : You will use this function when replacing modules such as audio, radar, windows, etc. It can refresh the car to achieve the effect of recognition module. Different cars support different module functions.
2)Actuation Test (BI-Directional Control )
LAUNCH X431 PRO3S+ V5.0 car scanner diagnostic tool features full bi-directional control ability, to send commands to vehicle’s systems/components, to verify system input/output without using the vehicle's controls, e.g. turn on the radiator fan, modulate the throttle, open/close windows, operate mirrors, Injector Buz Test, turn on interior & exterior lights, sound horn, test door lock actuators and such.
3) OE-LEVEL Advanced Functions:
Guided Functions: Compatible with Volkswagen / Audi / Skoda / Seat etc.
AutoAuth for FCA/ SGW: Use the latest software update function AutoAuth to provide OBDII diagnosis, active testing, calibration, etc. for modern FCA/SGW vehicles, making the diagnostics more secure. Applicable to FCA vehicles equipped with a security gateway module (SGW) in 2017 and later (NOTE: FCA Americas can be registered and used for free)
Cylinder Balance Test/Cylinder leakage test/Cylinder Pressure variations.
Component Matching: Compatible with Volkswagen / Skoda / Seat / BMW / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.
Online Coding: Compatible with Volkswagen / Audi / Benz / BMW / Seat / Porsche etc.
Online Account Login Service: Compatible with Volkswagen / Audi / Skoda / Seat etc.
Online Calibration: Compatible with Volkswagen / Audi / Skoda / Seat etc.
Online Parameterization: Compatible with Volkswagen / Audi / Skoda / Seat etc.
Anti-theft IMMO Service: Compatible with Volkswagen / Audi / Skoda / Seat etc.
Power Balance: Compatible with Chrysler / GM / Ford etc.
Programmable Module Installation: Compatible with Ford / Mazda etc.
Flash Hidden Functions: Compatible with BMW / Porsche / Toyota / Subaru etc.
Key Programming: Add, Delete & Reprogram Keys, Rewrite smart keys, Replace smart key ECU, Replace KNOB IGNITION; Reset Key: Relearn a key.
2024 New Added Functions: Topology Map
Compared with other high-end scanners in the market, the X431 Pro3S+ scanner with topology map function diagnose all the systems of the car in seconds, and all the healthy and unhealthy data in the car's system will be displayed, pinpointing the car's faults,greatly improve work efficiency and save time. Like other scanners, such as the X431 V Pro 4.0., X431 Pro Ellite, X***D9, etc. they needs to detect and diagnose one system by one, which can't locate the automobile faults comprehensively and accurately, and reduces the working efficiency greatly. Because LAUNCH X431 Pro3S + for repair stores, engineers, Diyer is an great investment!
LAUNCH X431 PRO3 S+ V5.0 Supported Vehicles List：
- European Cars:
For Audi, For Mercedes-Benz, For Maybach, For BMW, For Mini, For HCBMW, For Rollsroyce, For Citroen, For Fukang, For Ferrari, For Fiat, For Abbas, For Lancia, For Romeo, For NanjingFiat, For GAZ, For LandRover, For Jaguar, For Martha Lahti, For Open, For GMSA, For Vauxhall, For Peugeot, For DFPeugeot, For Porsche, For Renault, For Dacia, For Rover, For SAAB, For Skoda, For Seat, For Smart, For Transporter&V-Class, For VAZ, For Volvo, For VW, For Bingley, For Bugatti
- American Cars:
For Brazil Fiat, For Brazil GM, For Chrysler, For Dodge, For Jeep, For GM, For Buick, For Cadillac, For Chevrolet, For Ford, For ChinaFord, For Lincoln, For EuropeanFord
- Asian Cars:
For Daewoo, For Daihatsu, For Honda, For Acura, For DFHonda, For GZhonda, For Hyundai, For Ikco, For India Mahindra, For India Maruti, For India Tata, For JPIsuzu, For TLIsuzu, For Kia, For Luxgen, For Mahindra, For Malaysia Asia Pacific Perodua, For Malaysia Asia Pacific Proton, For Maruti, For Mazda, For YQMazda, For Mitsubishi, For Nissan, For Infiniti, For DFNissan, For Perodua, For Proton, For SAIPA, For Ssangyong, For Subaru, For Suzuki, For TATA, For Toyota, For Lexus, For TJToyota
- Australian Cars:
For Australia Ford, For Australia Horton
- Chinese Cars:
For Chang'an, For ChangCheng, For Chenghe, For DR automotive, For ECUADI, For BYD, For Foton, For Hafei, For Haima, For Brilliance, For Jiangling, For Iveco, For Jac JAC refine general, For Gonow Auto, For Xiamen Golden, For Kowloon, For Lifan auto, For GSMW, For SAIC Chase, For MVW Automotive, For Chery, For SAIC and MG, For SGM, For CHCHEVROLET, For CHBuick, For CHCadillac, For Tianjin FAW, For XinKai, For ZhongShun, For ZOTYE, For Zhongxing
(Note: Some car brands can only be used after the payment, please contact us before purchase.)

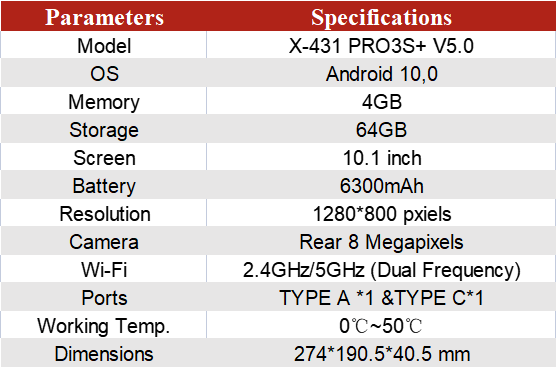

Launch X431 Pro3 S+ V5.0 Specifications:
Operating system: Android 10.0
Memory: 4GB
Storage: 64GB
Screen: 10.1-inch capacitive touch screen with a resolution of 1280 x 800 pixels
Camera: Rear-facing 8.0MP camera
Communication: Bluetooth/USB
Working temperature: 0℃ ~ 50℃
Storage temperature -20℃ ~ 70℃

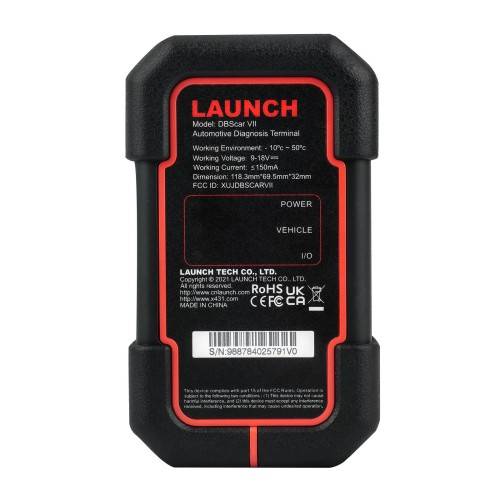

VCI Connector
Working voltage: 9 ~18V
Power consumption ≤2.0W
Working temperature: -10℃ ~ 50℃
Relative humidity: 20% ~ 90%

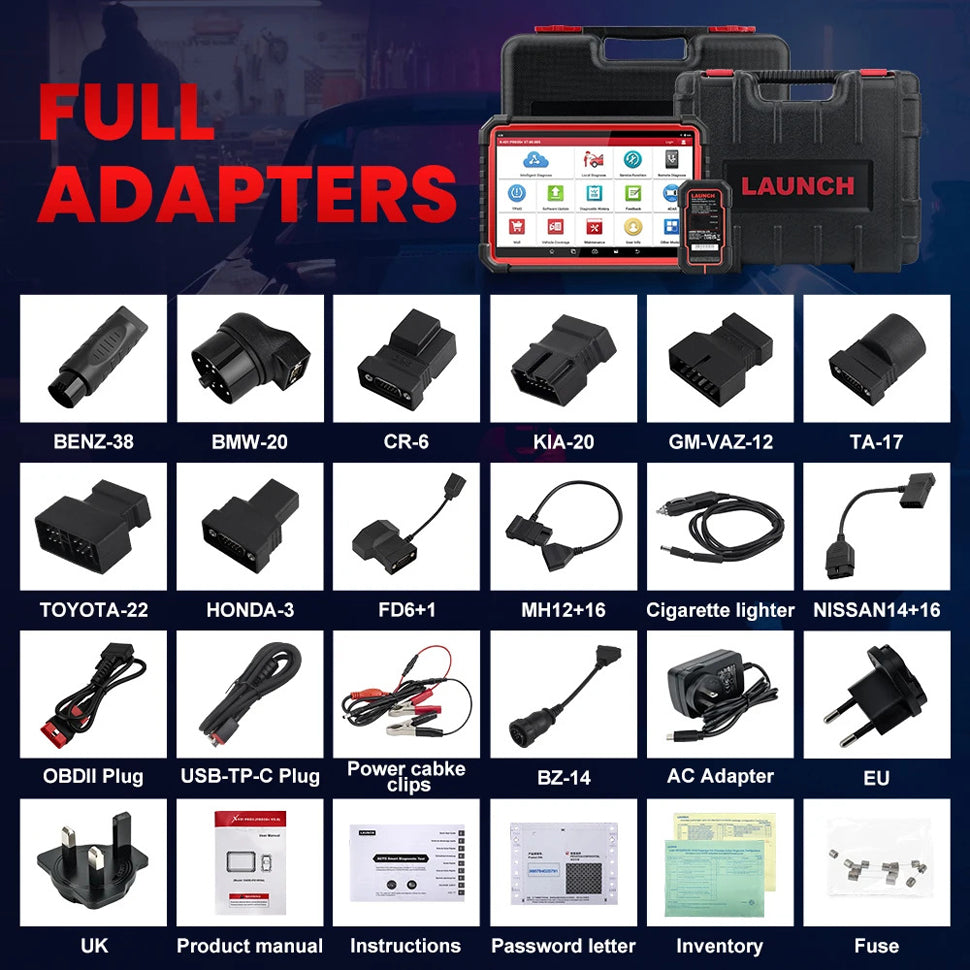

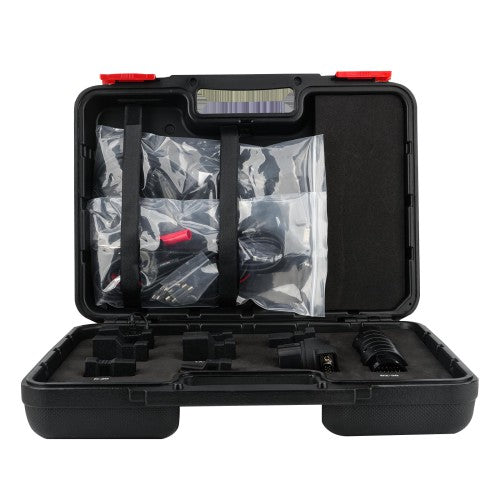

Launch X431 Pro3 S+ V5.0 Package Includes:
1pc x X431 Pro3S+ Display tablet
1pc x VCI connector
1pc x HDB15F to HD15F data cable
1pc x HD15M to OBD II 16 adaptor
1pc x Password envelope
1pc x Power adaptor kit (1 + 2 switching adaptors)
1pc x Type-A to Type-C USB cable
1pc x Multilingual quick start guide
1pc x User manual
1pc x Non-16 pin adaptor kit
