GODIAG GT110 V-AG V-W Skoda Seat UDS Pogo PIN 4th Generation IMMO System Test Platform Cable
-
Express Estimated Delivery:Dec 26 - Dec 30
-
Free Shipping Method: Estimate dilevery 8-19 business days
Guarantee safe & secure checkout

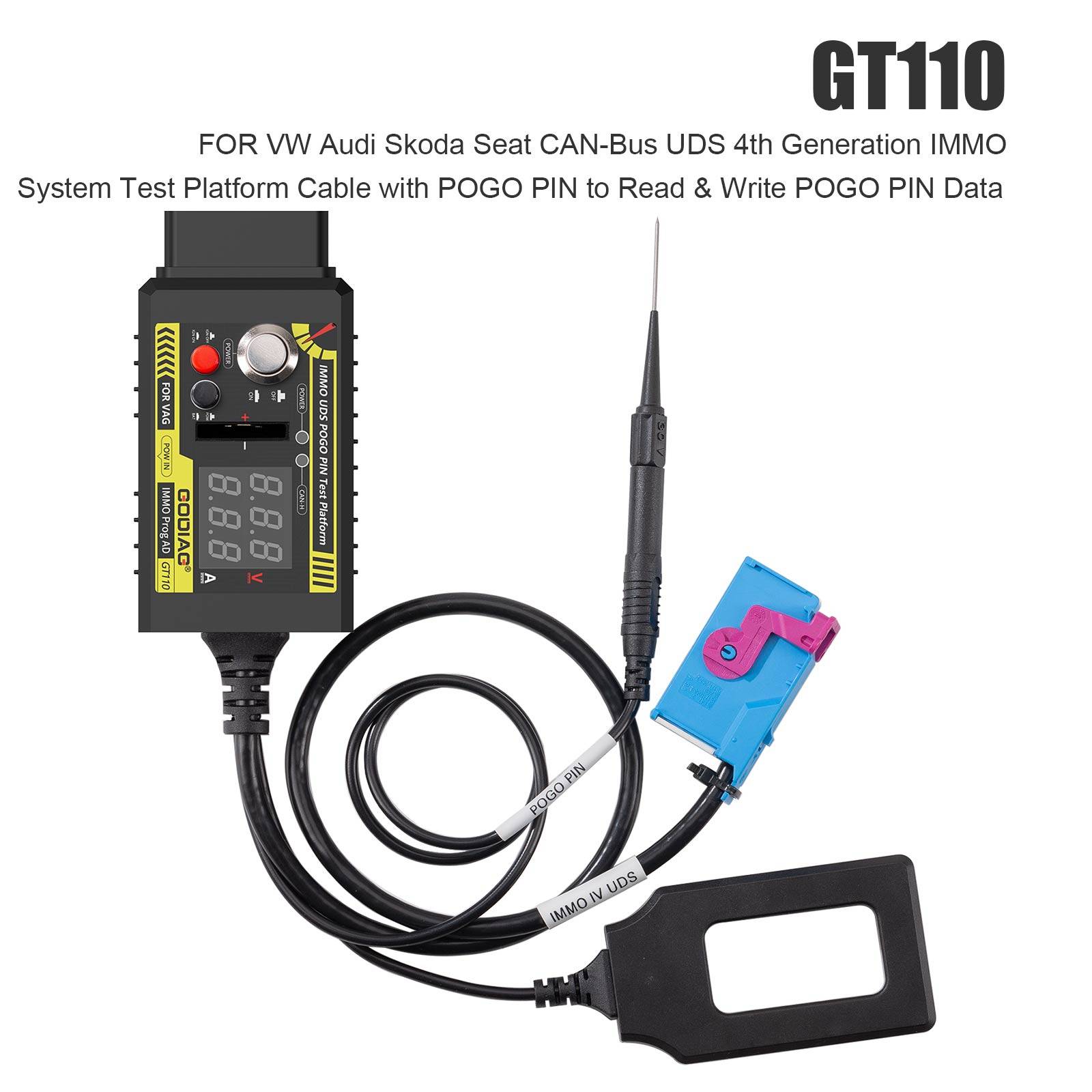

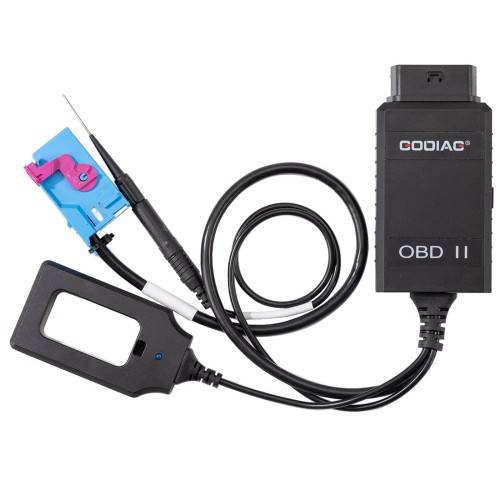

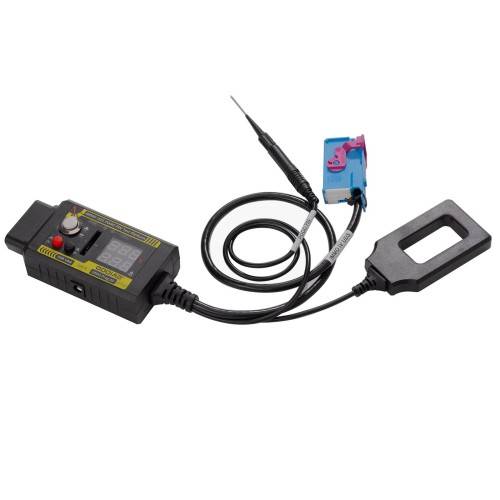

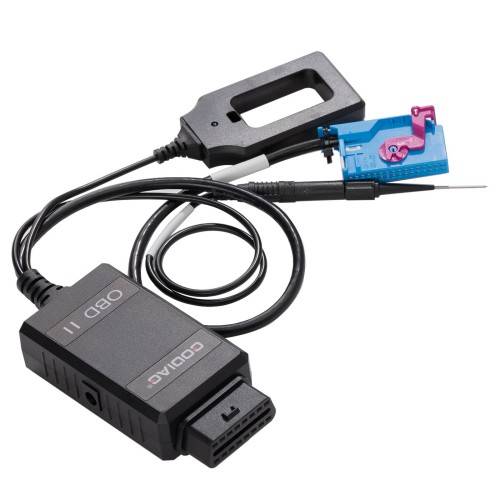

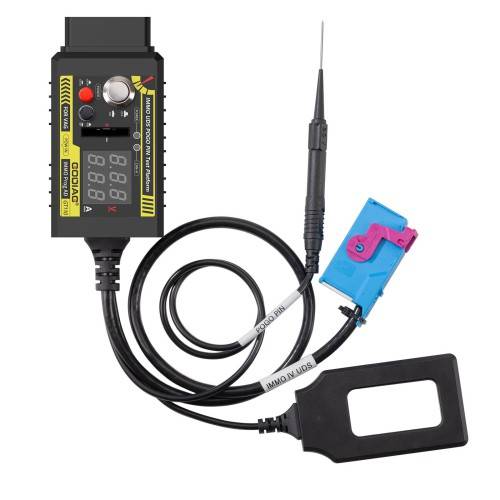

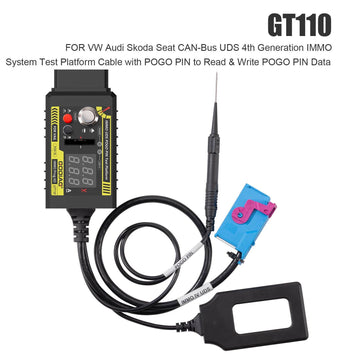

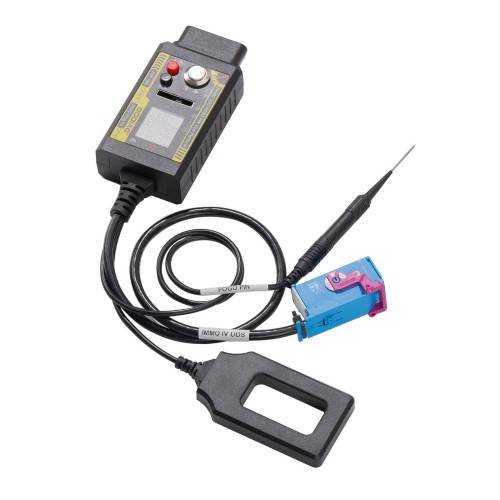

GODIAG GT110 V-AG V-W Skoda Seat UDS Pogo PIN 4th Generation IMMO System Test Platform Cable
GODIAG GT110 supports V-W Au-di Skoda Seat and other models, and performs offline POGO PIN data reading and writing.
GODIAG GT110 supports working with HEX V2, VAGCOM VCDS 5053, VAS5054A, VAS6154, SUPER VAG K+CAN, Obdstar, Lonsdor, AVDI, ZEDFULL, VVDI2, Key Tool Plus, X300 DP Plus, Lonsdor, SUPER VAG, AUTEL, etc.
GODIAG GT110 VAG Skoda Seat UDS Pogo PIN Test Platform
GODIAG GT110 for V-W Au-di Skoda Seat CAN-Bus UDS 4th Generation IMMO System Test Platform Cable supports V-W Au-di Skoda Seat and other models, and performs offline POGO PIN data reading and writing. lt is for dashboards key programming (including Boot Probe).of all UDS systems of Volks-wagen, Skoda and Seat. The product can display the current working voltage and current, has a power switch, the simulation ignition switch, and a buzzer to prompt the ignition start and shut down. It supports CANH UDS communication indication, CR2032 remote key battery detection, key and IMMO instrument synchronization test, intelligent IMMO system emergency start area induction detection, IMMO combination instrument offline diagnosis, instrument IMMO data reading and writing, instrument mileage repair, key matching and other functions.
It can be used with devices like HEX V2, VAGCOM VCDS 5053, VAS5054A, VAS6154, SUPER VAG K+CAN, Obdstar, Lonsdor, AVDI, ZEDFULL, VVDI2, Key Tool Plus, OBDSTAR X300 DP Plus, Lonsdor, SUPER VAG, AUTEL, etc.
Godiag GT110 Functions:
1. Use POGO PIN to read and write data to the dashboard.
2. Offline connection to the dashboard to convert to standard OBD2.
3. Perform key chip and instrument synchronization test.
4. Independent power switch
5. Simulate ignition switch
6. Current working voltage display
7. CR2032 remote key battery detection
8. Current instrument working current display
9. CANH UDS communication indicator light
10. Key induction adapter with light
11. The pogo PIN is more stable to hold and it does not damage the cable.
12. New and high quality. Made of high-quality materials for maximum durability and reliability.
13. Seamless fit, perfect fit for your car.
14. Easy to install, no complicated tools required, easy to use.
15. Professional workmanship, exquisite surface, novel and unique style
Godiag GT110 vs Other Pogo Pin cables:
Add simulated ignition switch
Adds CAN H indicator light
Pogo PIN does not break, more stable to hold.
Add voltage and current display
Add button battery CR2032 testing
Add key and instrument sync detection
Add emergency starts sensing area recognition
How to use POGO PIN:
1. Connect the power supply [Note: the power switch must be off].
2. Press the IGN ignition power [the IGN ignition switch must be turned on].
3. Connect the instrument plug.
4. Find the POGO PIN connection point of the corresponding instrument and connect it with a probe.
5. Turn on the power switch for about 3-5 seconds. As long as the instrument ABS light is flashing, it means that the POGO PIN read and write mode has been entered.
Note: Installation guide not included, we strongly recommend you seek professional installation.
Intelligent IMMO System Emergency Start Area Induction Detection
Press the vehicle's start switch and bring the device's key identifier close to a certain area. If the key identifier light flashes or lights up, it means that the area is the vehicle's key emergency start sensing area. If the customer's smart key is out of power, just put the dead smart key in the key emergency start sensing area to start the vehicle.
Car IMMO Start and Start Key Chip Detection
Test Result Analysis:
1. The light of the key identifier flashes and then goes out, indicating that the IMMO chip and the chip key are working properly.
2. The light of the key identifier flashes for a long time, indicating that the chip key and the vehicle's IMMO system do not match, and the chip key needs to be re-matched.
3. The light of the key identifier does not flash, which means that the vehicle's IMMO system is faulty. Please check the vehicle's IMMO system.

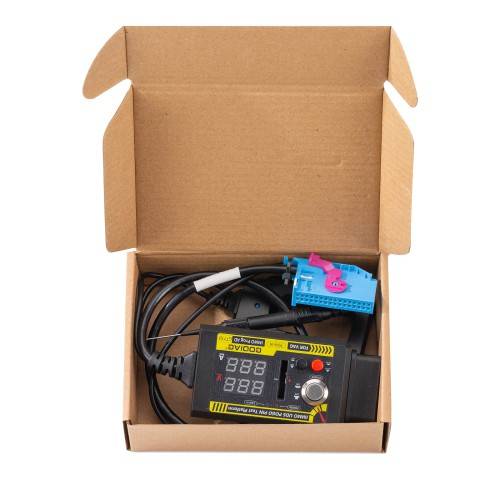

Packing List:
1pcx GT111 test platform with pogo pin
