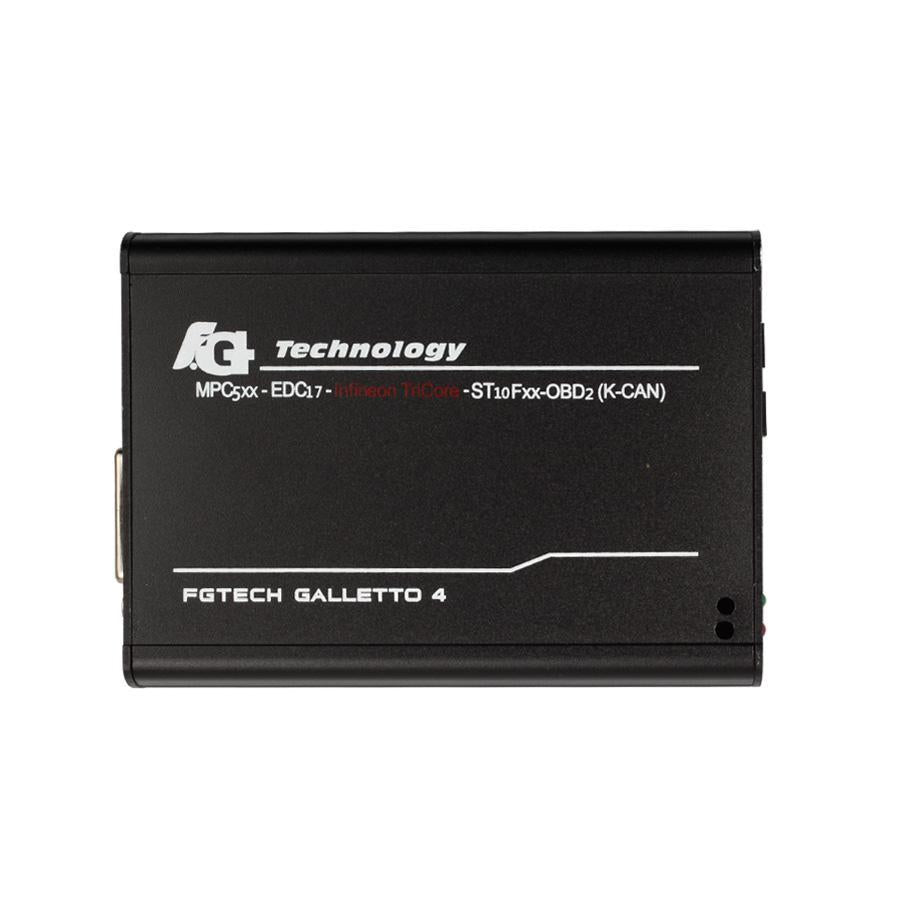

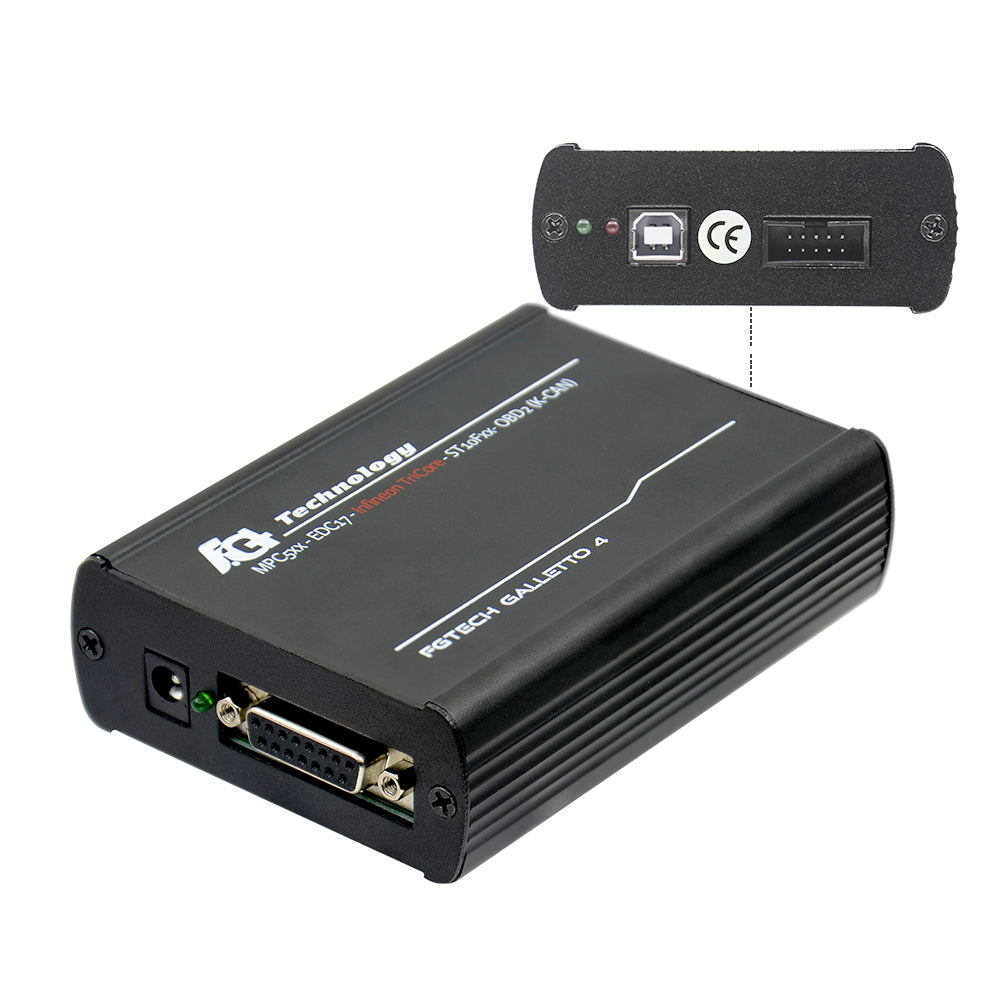

Fgtech Galletto 4 Master V54 is a famous chip tuning tool for all cars, trucks, motorcycles, Marine, BDM MPCxx, BDM Boot Mode Tricore, checksum.

This item cannot only work as fgtech galletto 4-Master, but can also work for BDM-OBD. Support Tricore Function.



Top 6 Reasons To Get FGTech Galletto 4

1. Latest Version: 2014 V54
2. Supported Operating System:  windows XP. more friendly than Fgtech v53 , much easier to operate
3. Unlock Version: Can Use Directly. No Need To Activate

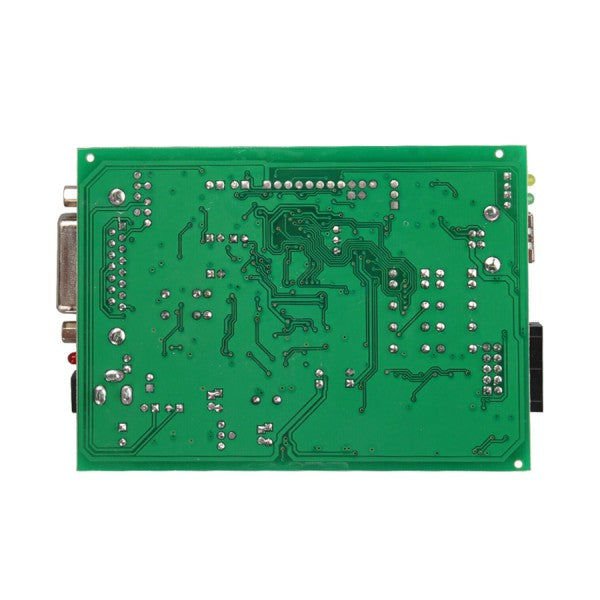

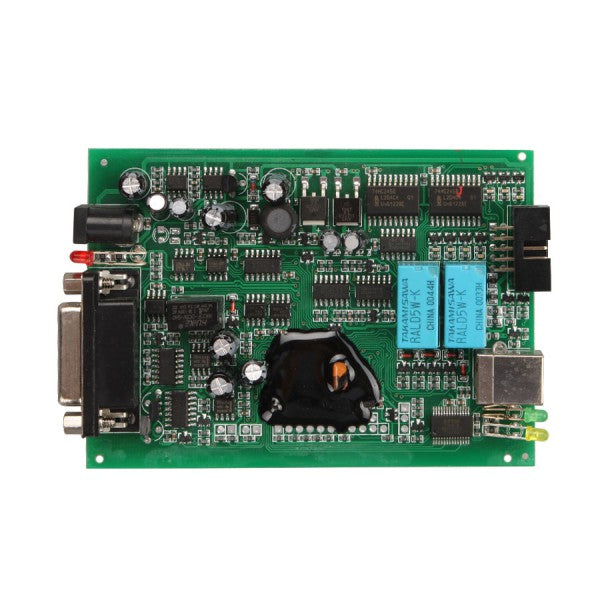

4. FGTECH V54 PCB Board
5. Supported Language: English, Italian, German, French, Spanish, Portuguese, Czech, Turkish
6. Support Tricore Function


FG Tech Galletto 4-Master v54 Description:

fgtech galletto 4-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use by anyone. Our system comes furnished complete with all Car, Truck, Motorbyke, Marine, BDM MPCxx , BDM Boot Mode Tricore, checksum.


Boot Mode System TriCore:

Infineon Tricore Sak TC1766
Infineon Tricore Sak TC1767
Infineon Tricore Sak TC1792
Infineon Tricore Sak TC1796
Infineon Tricore Sak TC1797

NEW JTAG - BDM - MOTO-ROLA - FRE-ESCALE - INFIN-EON
Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 - Mair 8G-MF
New Delphy DCM3.5xx DCM3.7xx TRW
Moto-la Freescale MPC 555/556/561/562/563/564/565
Mo-rola MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8 G-M-OPEL-SAAB
Mo-rola MC 68376 Campi 01 Lam-borghini - Lotus
Morola MC 68336 MEMS D5 ROVER
Mo-tola ZC 439615 - ZC 439507 IAW FI-AT - VAG
New Line OBD protocols VPM G-M - Hum-mer-Corvette-Munstang-Blazer-Cadilac
New Line OBD protocols Tx-Rx - Su-baru - Mitsu-bischi - Hita-chi - Denso ecu
All EDC17 MED17 is good always modify with Boot Mode tricore.


Automatic Checksum:

 All old protocols included from Bo-sch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso
Boot Mode C167x / ST10, Boot Mode Infineon Tricore With password Bos-ch , Siemens
Moola MC68332 - MCYQQCU - MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507
Morola Freescale MPC 555/556/561/562/563/564/565
Freescale MPC 5553/5554/5565/5566
BDM Tricore.

5-30V Car / Industrial Vehicles, L line / K line KWP, CAN
Can Bus V2.0 50Kb > 1000Kb
J1850 VPW PWM G-M -FO-RD
Rx Tx RS232,
RS 485,
Automatic setup Pull up K-L line 250, 500, 1000 ohm,
Automatic setup termination Can bus 0, 60,120 ohm.


FGTech Galletto 4 Master Version:

Recovery Mode Completa
Funzione scan tool per eliminare i DTC
Function scan tool for erase the DTC
Controllo tensione di batteria auto in tempo reale
Check tension of battery car in real time


FGTech Galletto 4 BDM Connection:

FGTech Galletto 4 BDM Connection:

FGTech Galletto Boot Connection

FGTech Galletto Boot Connection

FG Tech Galletto OBD Cable Connection:

FG Tech Galletto OBD Cable Connection:


Comparison Among Top 3 ECU Programmer KESS Ksuite V2 Master, Ktag Master, Fgtech Galletto V54

Comparison Among Top 3 ECU Programmer Kess V2 Master, Ktag Master, Fgtech Galletto V54

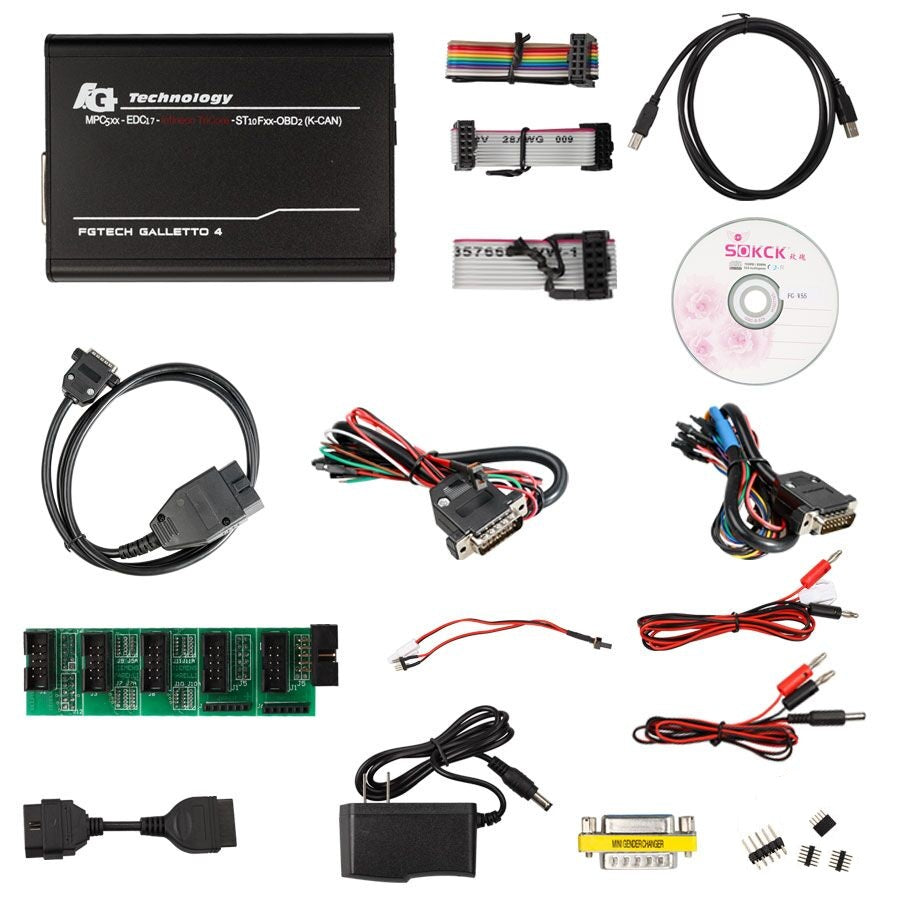

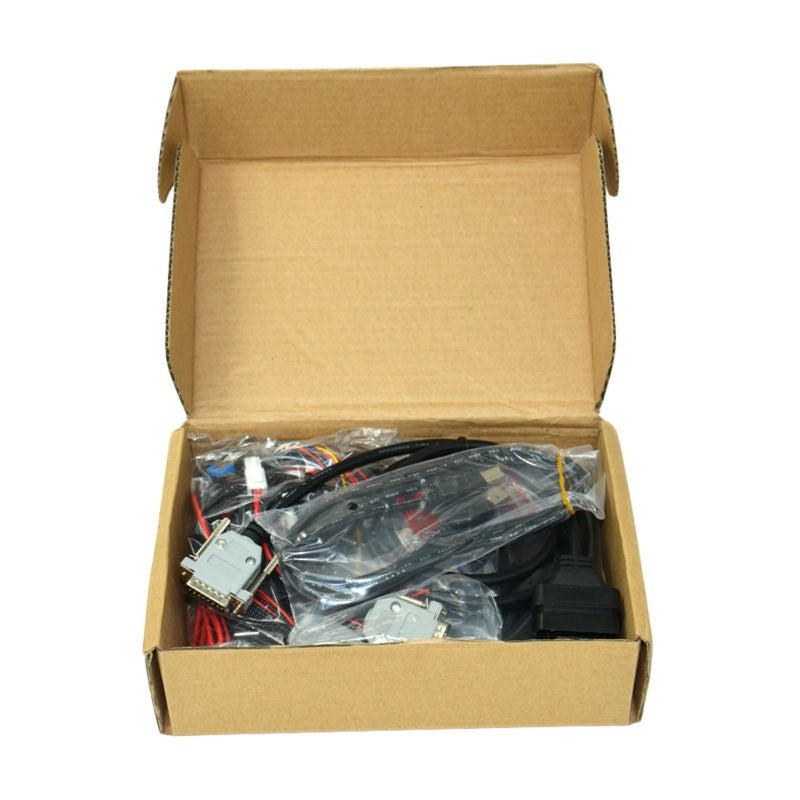

Package including:

1pc x New version main interface
1pc x ECU cable for TriCore boot
1pc x Adapter for BDM to CMD with bdm cables
3pcs x BDM adapters
6pcs x  BDM connectors
2pcs x Power cable
1pc x  OBD2 cable
1pc x  USB cable (1.5meter)
1pc x  CD (2012 version SW -MASTER, documents pdf, pictures, etc.)

FGTECH Success and Fail List:

EDC16u34 (VAG) Read/Write ok (OBD)
EDC16U1 (VAG) Read/Write ok (OBD)
MED9.1 (VAG) Read/Write ok (ODB)
Trionic8 (saab 9-3) READ/WRITE OK (OBD)
EDC16P (VAG) Read/Write ok (OBD)
EDC15V (VAG) Read/Write ok (OBD)
EDC17CP14 03L906022G Read/Write ok (OBD and boot mode)
Ford
EECV 1.8tddi read/write ok

VAG
AUDI ME 7.1.1 3.0 v6 read ok – awaiting flash

fiat multijet
mjd 6f3 diesel read/write all ok

renualt megane
siemens s3000 read hitachi mcu/write ok

EDC15C13 (Renault) Read/Write ok (K-line on bench and boot mode)

DDCR (Nissan Almera 1.5DCI) OBD read/write OK

Mercedes w211 2.2 cdi edc16c3 obd, ecu data ok read/write fail! Bdm read ok

opel
edc16c39 obd r/w ok
edc16c39 bdm r/w ok
edc16c9 bdm r/w ok
astra J 2009 denso galletto jtag NOT ok (but ktag r/w same ecu ok with jtag)

mitsubishi grandis
edc16u31 obd r/w ok

renault megane /laguna
sagem3000 obd r/w ok

bm-w 3/5/7 series
edc16c31/35 obd r/w ok
edc17 in boot mode ok

psa
edc16c34 obd r/w ok
dcm 3.4 obd r/w ok

ford
edc16c34 and delphi ECUs obd r/w ok

vag
edc15 / my galletto can not read program shout down (I use kess)
edc16 obd r/w generally ok
edc17 in boot mode ok

volvo
edc17 boot mode ok

Audi S3 Med9.1 r/w (OBD) ok
Mercedes GLK Delphi CRD2 r/w (OBD) ok
Peugeot 207 EDC16C34 r/w (OBD) ok

Merc w212 crd 3.7 obd. OK
BM-W E87 116D 2.0 EDC17C06 Bootmode r/w ok
BM-W E83 3.0d ODB r/w ok
ME 7.5 (VW 1.8T AWT) Read ok / Write ok (OBD)
Merc Viano EDC16 C2. OBD. Ok
VW Golf5 1.4 TSi
ecu MED17.5.1 Boot mode r/w ok
I test clone work ok
sirius32N,EMS3132,EMS3134 in boot-mode read/write OK.
Mazda 5 2.0D 2005 Denso RF7K read/write OBD ok
Mazda 6 2.0D 2006 Denso RF8J read/write OBD ok

Peugeot 308 1.6 HDI 2013 Siemens SID807 EVO read/write BOOT ok

BM-W X6 3.0D 2012 and 2013 (306 and 245hp)BOSCH EDC17CP45 read/write BOOT ok

Mistubichi Pajero 3.2DID 2013 Denso 4M41 and 4D56 read/write JTAG RENESAS ok
Mercedes W203 320CDI EDC16cp31 r/w ok (OBD)

Audi q7 3.0TDI – ok
BM-W e46 2.0D 150km EDC16c31- ok
BM-W E90 2.0D 163km EDC16c35- ok
Chevrolet Captiva 2.0D 150km – ok
Renault Trafic 2.5D EDC15 – ok
Mercedes B180CDI EDC15c32 – ok
Mercedes B200CDI – ok
VW Golf4 102km – edc15 – ok
Skoda Octavia 1,9TDI 105km EDC16 – ok
Citroen Jumpy 2.0D Simens 802A – ok
Ford Focus 2.0D 136 PSA Simens 802 – ok
Mini One 1.6 90km – ok

BDM
Mercedes B180&B200 CDI – ok
Q7 3.0tdi – ok
BM-W one – ok
Landrover /jaguar EDC17CP11 read out in boot mode ok

BM-W 330d EDC15C4 read ok/write ok via OBD
Mercedes vito 111 EDC16C31 read ok/write ok via OBD
Mercedes vito 120 EDC16C31 read ok/write ok via OBD
bm-w e90 edc 17cp reading ok write fail. boot mode ok!
vag edc17cp14 read/write in boot mode ok, read in OBD ok
vag pcr2.1 read/write OBD ok, PCR2.1 unlock via bootmode ok
vag edc16cp34 obd read/write ok
fiat/iveco edc16c39 obd read/write ok
edc16u31/34 obd read/write ok, BDM read/write ok
Mercedes Vito 2.2CDI 2012 Delphi CRD2.x (OBD) read / write ok

Siemens BM-W MSS54 BDM R/W OK OBD not tested (will probably work)
Siemens BM-W MSS54HP BDM R/W OK only with AMD Chip/Not ST EEPROM, WILL NOT READ PROPERLY/WRITE
If you change ST chips to another EEPROM works fine wit HP unit

OBD
ALFA ROMEO
· edc15c7
· ME 7.3.1
· edc16c39
· edc16c39 read time 40 MINUT!
· id Alfa 147 immo off (k line /boot mode)

BM-W
· edc16c31 obd
· BM-W X5 2007 3.0TDI
· EDC16 OBD
· BM-W 525 (E39)
· BM-W 320D E46
· bm-w e90

FIAT
· Grande Punto read 1_3 MJT 75 hp

MERCEDES
· EDC15C5
· edc5c2
· delphi CRD2

OPEL
· EDC16c9
· Opel Corsa-D CAN

PSA
· edc15c7 boot mode (ID problems)
· EDC 16C34
· EDC16c3 K line
· edc16c34

RENAULT
· Renault Delphi 2007 k-line

VAG
· edc15v
· EDC15-P
· edc15
· Golf Plus 2006 2.0TDI
· EDC16U34
· A4 2.0 tdi 2008
· Skoda octavia vrs 2005
· EDC15P K lINE
· VW crafter READ
· VW Golf5 1.9TDI
· Audi A6 V8 4.2l Petrol (over OBD fuse for dash fuse 11 or 15 , but it worked after pulling the fuse for dash and it went 100%)
· med9.1
· edc17cp14
· EDC17
· But edc17cp20, edc17cp44, etc, etc same year, have tricore protected active, and if you write in obd, ecu bloqued.

BM-W E70 3.0D EDC16 (BDM)
bm-w. edc16c35 (BDM)
Opel EDC16c9 (BDM)
iveco edc16 BDM (BDM)

Audi A6 (TRICORE BOOT)

Fgtech Galletto V54 What not work:
i have FG Tech v54, with one cannot read Subaru Impreza 2.0d, with another one read/write ok, Denso ECU.

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

Package will ship out within 48 hours after payment receive usual, if there is some acceident, we will inform you by order contact information.

VXDAS Policy

1. Return Policy

2. Refund Policy

3. Repair Policy

4. Warranty Policy



Kindly note:

Before returning items to us, please read and follow the instructions below. You can also contact our Customer Service, we will be glad to help you.

Please make sure that you understand our return policy and ensure that all criteria are met before physically sending any items back to us.



Return Policy

What Situation VXDAS Provides Return Policy?
  • Mis-Ordered Products: If you ordered wrong item by yourself, after communication with VXDAS sales you need to exchange a right item, you can return back and exchange the tool. But you need to pay both shipping cost to us and freight to you again.
  • Quality Issues: Our products do not work well once you receive it or it encounters crash in delivery causing customers fail to use it, in this situation, our return policy will be open for you.
  • Non Quality Issues: In some particular situation, our return policy can be open for you after our customer service learning your particular problem, and in this condition we will charge you 10% restock fee, please kindly understand.

What Situation VXDAS DO NOT Provides Return Policy?

  • Mis-Ordered Products: If you ordered wrong item by yourself, or you found it is not what you want to order (not quality problem), our return policy is not applied for you, please aware of this.
  • Non Quality Issues: If the item is damaged by yourself, we can not provide exchange service for you. You can only return to repair.



How to Return the Items to VXDAS?

After all details confirmed by VXDAS sales and agreed to return back the items, please help to follow the return process provided by VXDAS.

①Return Shipping Method

VXDAS will recommend to use Registered Mail or EMS to return the parcel, and please only send the items back to the shipping address our Customer Service provides. Please DO NOT use DHL/UPS/FEDEX/TNT or other courier for shipment without permission, if we cannot get the returned parcel with these methods, we will not responsible for that.

②Return Cost

If you were ordered wrong items and want to return back, you will bear the return cost.

If it's quality problem and never use before, please contact VXDAS sales to confirm the cost.

If only return for repair or exchange, customer will afford the shipping cost to VXDAS according to company rule.

Remark:

①We promise to obey the return policy when the items have problems above, but you must send back the item after we knowing your problem and what you want us to do. Please kindly contact VXDAS Customer Service to confirm all details before returning the items.

②All return for refund or return for exchange should be done within 7 days. Customer must send out the items and provide returned tracking number with shipping invoice details to VXDAS sales. Otherwise, we may cannot receive the parcel and follow the return and exchange policy.



Refund Policy

What Situation VXDAS Provides Refund Policy?

  • Quality Issues: Our products do not work well once you receive it or it encounters crash in delivery causing customers fail to use it, in this situation, our refund policy will be open for you.
  • Transaction Issues: If you find that the transaction was not completed by you/someone you know, please contact VXDAS Customer Service within 12 working hours to cancel the transaction and refund the unauthorized deduction. If over 48 hours, the parcel may send out already, then we have to refund after we get back the items.
  • Stock Issues: If product is out of stock, we will send email to check if you want to exchange or get refund.



What Situation VXDAS DO NOT Provides Refund Policy?

Mis-Ordered Products: If you ordered wrong item by yourself, or you found it is not what you want to order (not quality problem), our return policy is not applied for you, please aware of this.

Special Products/Services: Some products or services are not refundable after they have been provided. Like software download link, software installation service and account service etc.



When Can Get Refund?

Return for Refund:
Usually we will only refund to you after the returned item was received. Please also track the logistics after you send back the parcel and contact VXDAS sales for further refund information. (If returned product was not in good condition, we may charge you corresponding damage costs.)
Stock Issues:
If you prefer refund directly when item is out of stock, we will arrange refund to you in 48 working hours. Kindly check your account or contact VXDAS sales for refund details.



Repair Policy

In Warranty Time

All diagnostic tools and softwares from VXDAS is able to enjoy repair process for free in warranty time.

If the items from VXDAS have quality problem during warranty, you can send back to us for repair. Return back please obey return policy or contact VXDAS Customer Service for more details.



Out Of Warranty

If item is out of warranty, there will be repair fee accordingly. You may also need to pay for the shipping cost when repair process finished. To avoid the problem of excessive maintenance costs, be sure to consult with the staff on specific issues.

Before sending back to repair, please explain the item problem to VXDAS sales, we will check it accordingly once received.



Warranty Policy

One Year Warranty

All diagnostic tools and softwares from VXDAS will have one year quality warranty period.

During warranty time, customer can enjoy free technical support and repair.

Before shipping out, all goods will be test by vxdas.com. Our test engineer will check for quality, including check the basic function of the hardware and software, the appearance, the packing, the necessary accessories and power adapter plug standard.



7 Days Return

If the product has quality problem, VXDAS guarantees to replace a faulty product or full refund after receiving the products in 7 days.



Lost Products

If products get lost in delivery, or you haven't received your item for a long time, please contact our customer service timely. We will deal with this ASAP. Please do not deal with it all by yourself, we will help to check and provide solution. Usually we will provide tracking number and tracking link timely. If products get lost on the way and we'll get messages from couriers, then VXDAS will contact you for further solution like resend the parcel or refund.



The Warranty Policy fits for all products except some products which state the warranty specially in description. Like some chips, it doesn't have any warranty after order. Hope you can understand.



VXDAS Kindly Note
When you have any problems, please kindly contact VXDAS sales to provide pictures or videos to show the quality or appearance problem.

According to the different problems, the VXDAS Sales will be responsible for providing the best solutions under the agreement of both parties, such as replacement, refund, discount for next order etc.



The Warranty Policy fits for all products except some products which state the warranty specially in description.

we understand that choosing the right product is crucial

VXDAS Strives to Provide A Hassle-Free Purchasing Journey

Money Back Guarantee

Invest in our equipment with absolute confidence, backed by our satisfaction guarantee.

1 Year Warranty

Our dedicated team provides timely assistance,
committed to addressing your queries.

Customers Services

Our dedicated team provides timely assistance,
committed to addressing your queries.

Recently Viewed Products
