Autel MaxiScope MP408 Automotive Oscilloscope Basic Kit Works with Maxisys Tool
Autel MaxiScope MP408 is an intuitive and cost-effective Oscilloscope device based on 4-channel automotive oscilloscope, featuring the user-friendly UI design combined with the unrivalled hardware specs, the MP408 system is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles.
Main Features of Automotive Scanner With Oscilloscope MP408
1) Features one-click auto setup of voltage scale and time base.
2) Works on all makes and models of modern vehicles.
3) Compatible with LIN, CAN and FlexRay data bus standards.
4) Reads and displays electrical signals in high resolution waveforms.
5) Allows manual editing of measurement parameter display.
6) Saves and reviews waveform data.
7) Features color coded 4-channel control panel.
8) Intuitive UI design features easy trigger point adjustment and real time scale info display.
9) Direct power supply through USB connection.
10) Free online software update through the Internet.
11) Portable design with strong housing and protective rubber boot.
How to Install MaxiScope MP408 PC Software?
1. Download the MaxiScope PC Suite from www.autel.com ->Products ->MaxiScope MP408 -> Downloads.
2. Unzip the downloaded file,and click setup.exe to install thesoftware,and then click Next to continue.
3. Click the Browsebutton, and select a destination folder to install the program, and? click Next to continue. Or directly click Next to continue without changing the default installation folder.
4. Click Install and the Setup.exe program will be installed onto the computer
Autel MaxiScope MP408 4 Channel Automotive Oscilloscope Specifications
Vertical resolution: 12 bits
Channels: 4
Bandwidth: 20MHz
Accuracy: 1%
Sensitivity: 10mV/div to 20V/div
PC Interface: USB 2.0 – Cable supplied
Power Requirements: Powered from USB port
Input Ranges (full scale): ±v50mV to ±100V in 11 ranges
Input Impedance: 1MΩ in parallel with 22pF
Input Type: Single-ended, BNC connector
Input Coupling: Software selectable AC/DC
Overload Protection: ±200V on single input
Buffer Memory: 32M samples shared among active channels
Waveform Buffer: Up to 1000 waveforms
Timebase Ranges: 100ns/div to 1000s/div
Operating Temperature Range: 0°C to 50°C (15°C to 40°C for quoted accuracy)
Storage Temperature Range: -20°C to +60°C Storage
Humidity Range: 5% to 95%RH, Non-condensing
Maximum Sampling Rate (Single Shot): -1 or 2 channels in use:80MS/s -3 or 4 channels in use:20MS/s
Package Including

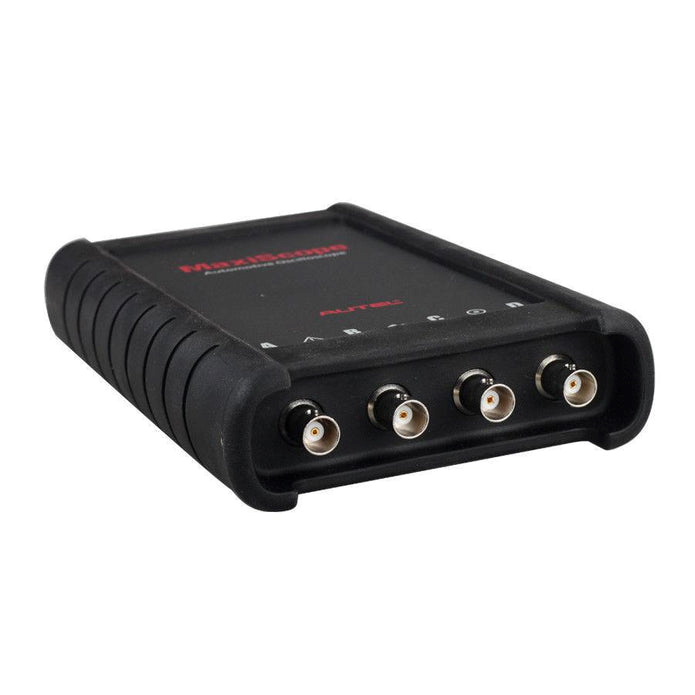

1pcs x Autel MaxiScope MP408 Interface
1pcs x Compact Disc (CD)
1pcs x 1.5m USB Cable
4pcs x 3m (10ft) Screened Test Leads
1pcs x Secondary Ignition Pickup
1pcs x 2-pin Breakout Lead
2pcs x Attenuators 20:1
1pcs x Large Crocodile Clip Set
1pcs x Small Crocodile Clip Set
1pcs x Acupuncture Probe Set
1pcs x Multimeter Probes
[des]
About this item
- Autel MaxiScope MP408 measures and tests virtually all the electrical and electronic components and circuits in most modern vehicles. Used in a wide range of industries related with electronic signals and compatible with LIN, CAN and FlexRay data bus standards to read and display electrical signals in high resolution waveforms.
- Power for the MaxiScope MP408 comes directly from the USB port of the connected PC, so no batteries or power leads are required versatilely and portably.
- Autel MP408 can be used in conjunction with your computer or MaxiSys tablet. It will become a powerful diagnostic tool through the processing program MaxiScope software running on the computer or the processing program MaxiScope App running on the Android tablet computer.
- Autel MP408 can capture signals four times faster than any other oscilloscopes, a high speed sampling rate from 80MS/S TO 20MS/s and incredible bandwidth of 20MHz, which makes viewing waveforms on high resolution 8” or 10” color screen clear and simple.
- Autel MaxiScope MP408 guarantees that this product will be free from all defects in materials and workmanship for a period of one (1) year from the date of the original purchase with free online software update through the Internet.
