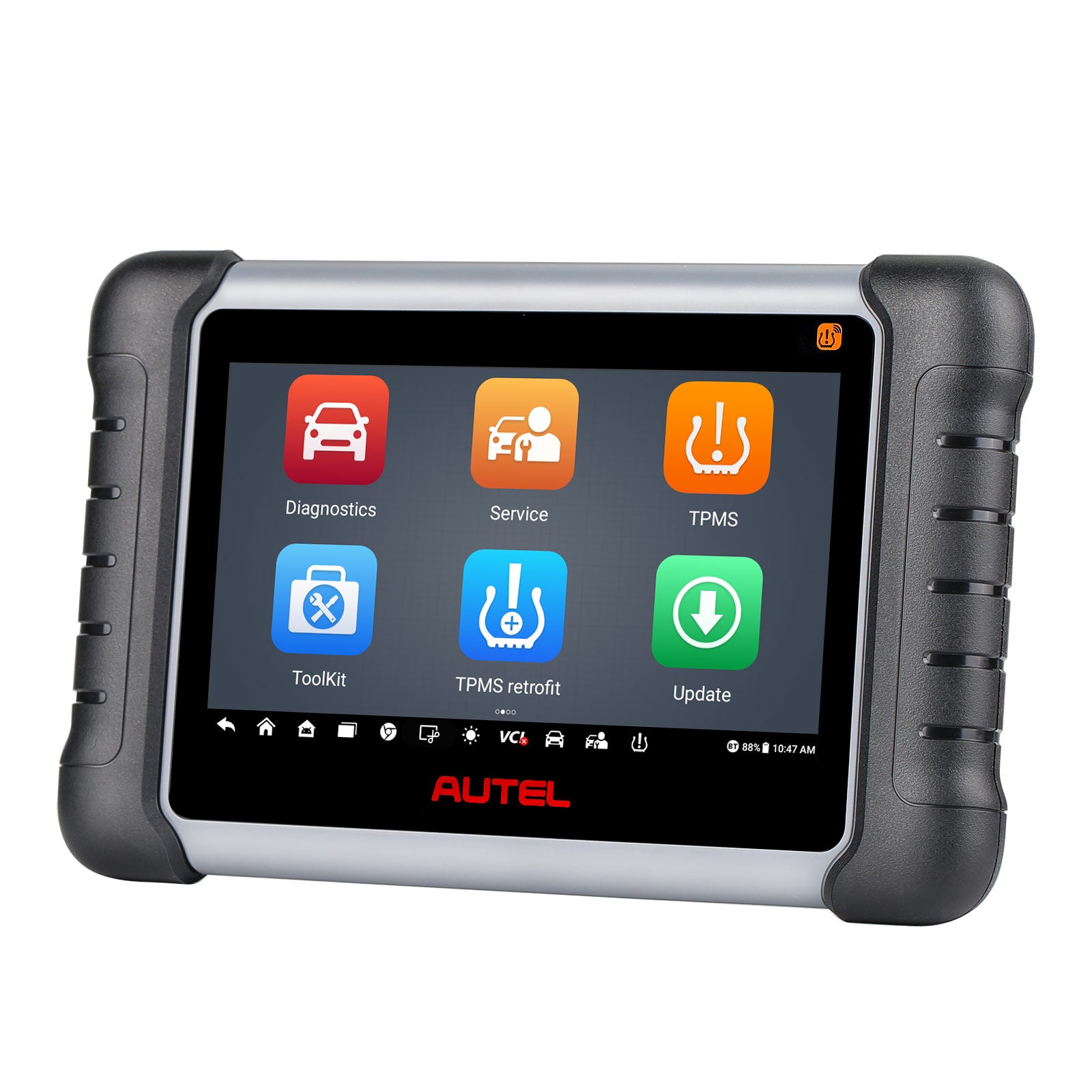

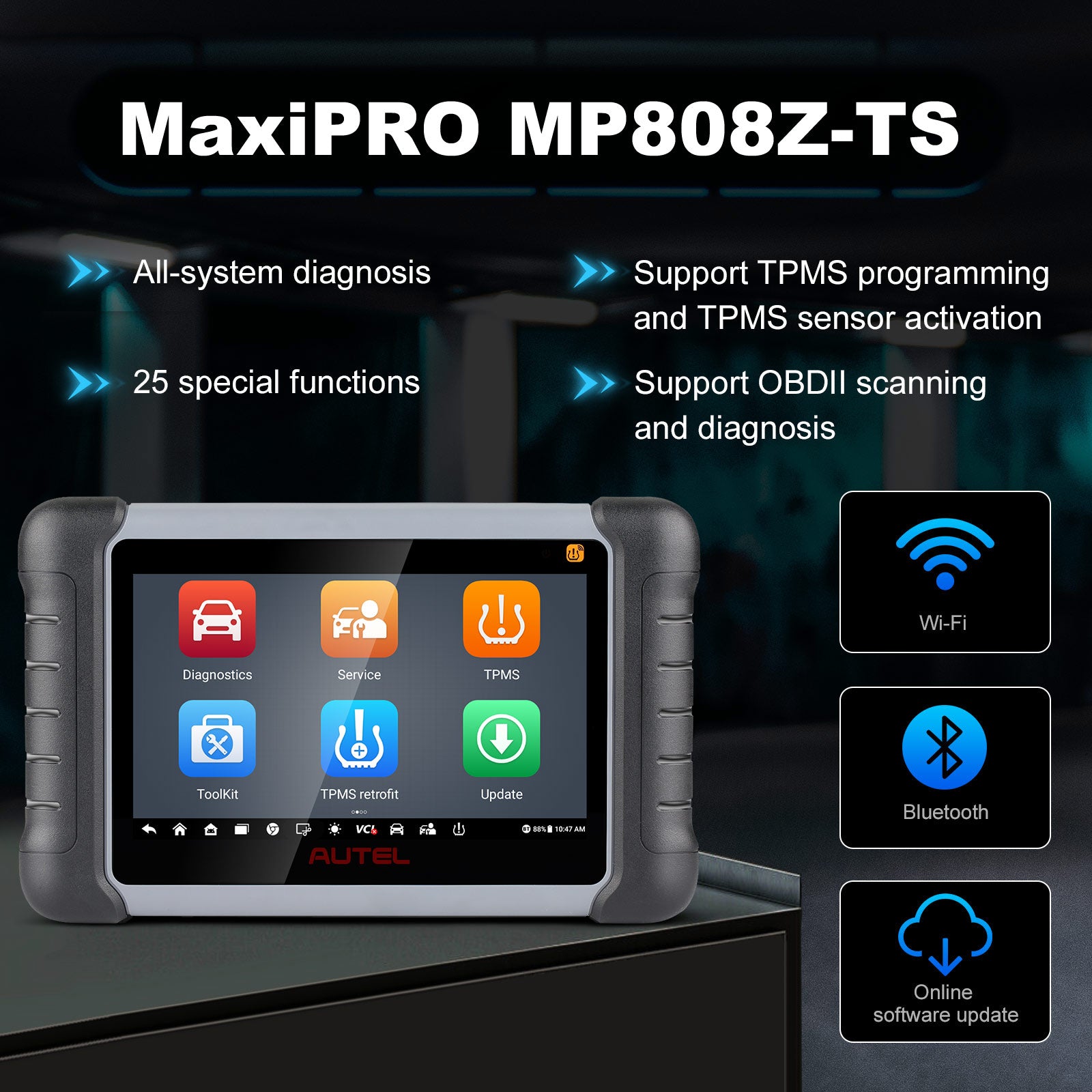

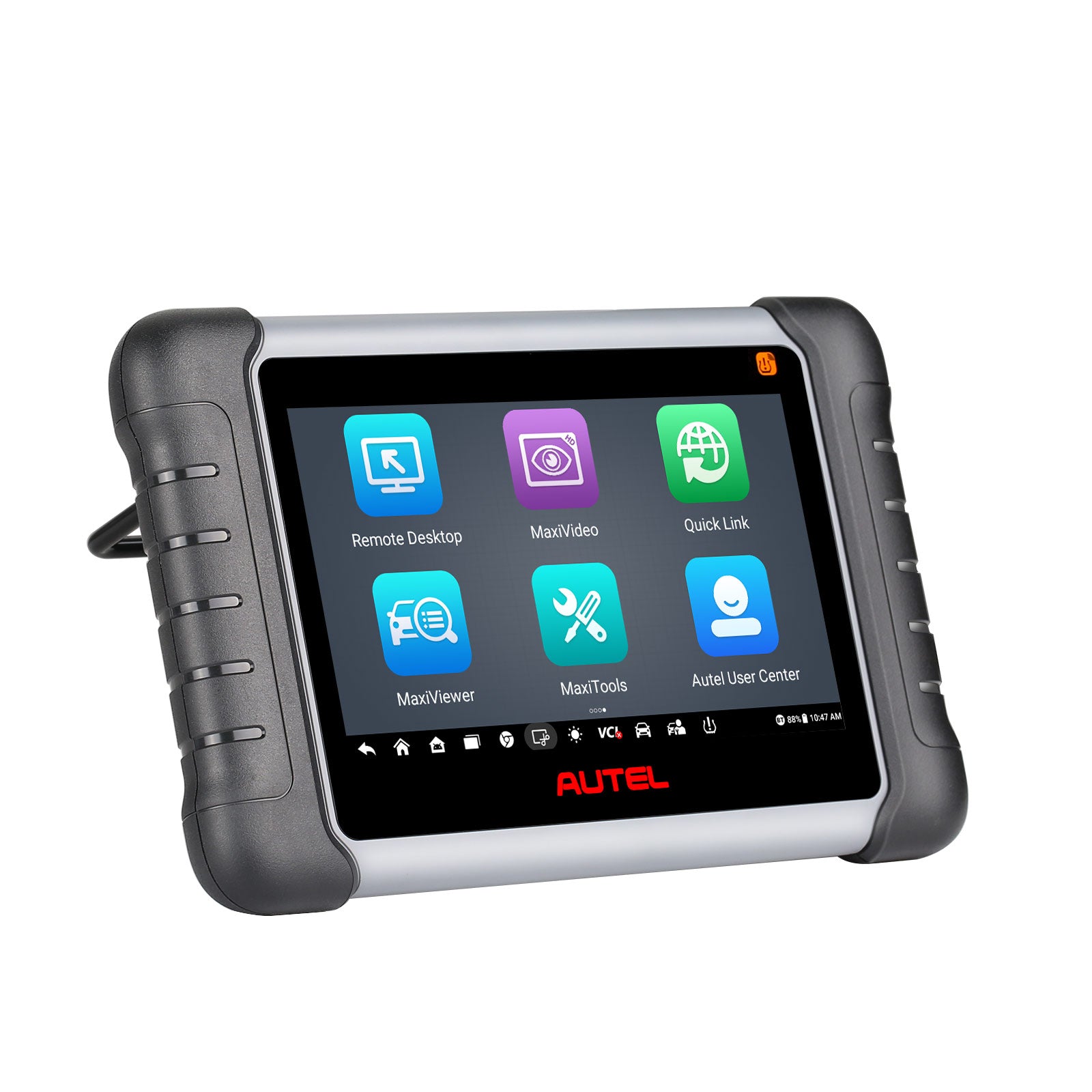

Autel MaxiPRO MP808Z-TS Android 11 Bi-Directional TPMS Relearn Tool
Autel MaxiPRO MP808Z-TS Android 11 Bi-Directional TPMS Relearn Tool Supports Sensor Programming Newly Adds Battery Testing Function
Autel MaxiPRO MP808Z-TS, with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, provides superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), and BMS (Battery Management System). In addition to OBDII diagnostics and special functions, MP808S-TS can perform comprehensive TPMS services with ease.
Autel MaxiPRO MP808Z-TS WIFI/Bluetooth Diagnostic Scanner
When it comes to ultra-portability, MaxiPRO MP808Z-TS is your perfect companion. Featuring a fast quad-core processor, MP808Z-TS offers maximum convenience and swift diagnosis. The intuitive user interface makes using the device effortless via a 7-inch LCD touch screen that displays at 1024 x 600 quality. Together with the ability to quickly read and clear Original Equipment Manufacturers (OEM) enhanced codes for TPMS module of the majority of the makes and models on the market, MP808Z-TS provides you with superior special functions for TPMS services with ease.
Autel MaxiPro MP808Z-TS makes Autel MP808BT & MP808TS pale by comparison in hardware & software configurations. What's more, Autel MaxiPro MP808Z-TS has been added new functions that can not achieved with Autel MP808TS & MaxiCOM MP808BT. All new functions are ready for use out of box and no software update is required: ECU Coding, battery testing, special functions, TPMS Tool Kit function and FCA Auto Auth, etc.
Highlights:
- Android 11 Based
- Global Version, No IP Blcoking Problem
- Bi-Directional Control Scan Tool and all system diagnostic
- Support ECU Coding Advanced ECU Coding same as MS906BT
- Supports Key Programming
- Full TPMS function as Autel TS608
- 36+ Special Service functions
- Supports FCA Auto Auth
- One Year Free Update Online, After one year, MP808Z-TS Software Subscription cost 479USD per year
- Battery Testing (with BT506) & Digital Inspection (MV108)
- 4GB/64GB Expanded Storage, Dual Frequency 2.4/5.0GHZ Wi-Fi
- Multi-Language Supported: English, German, Spanish, Portuguese, French, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian, Traditional Chinese
- Autel MP808Z-TS fix running latency problem, low response, network unstable problem and other problems that frequently happened in the old MP808/MP808BT/MP808TS. Autel MP808Z-TS not only offers more intuitive naviagtion interface, but aslo enhanced the running & response speed by 3 times.
Autel MaxiPRO MP808Z-TS Features:
Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes and models.
Exceptional OE-level system coverage for all electronic systems.
Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
Auto VIN technology can automatically identify the vehicle's make, model and year information in no time.
Automatic system and software updates with real-time push message notifications via Wi-Fi.
Instant remote control tech support anytime, anywhere.
Advanced TPMS diagnostics with DTC description.
TPMS status, one step for complete TPMS health check.
Activate 98% of all known TPMS sensors.
Program AUTEL MX-Sensor.
Comprehensive OBD relearn coverage.
On-screen relearn procedure.
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized.
Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes.
NEW！Compatible with Videoscope and MaxiBAS BT506 to perform battery analysis.
Autel MP808Z-TS Functions:

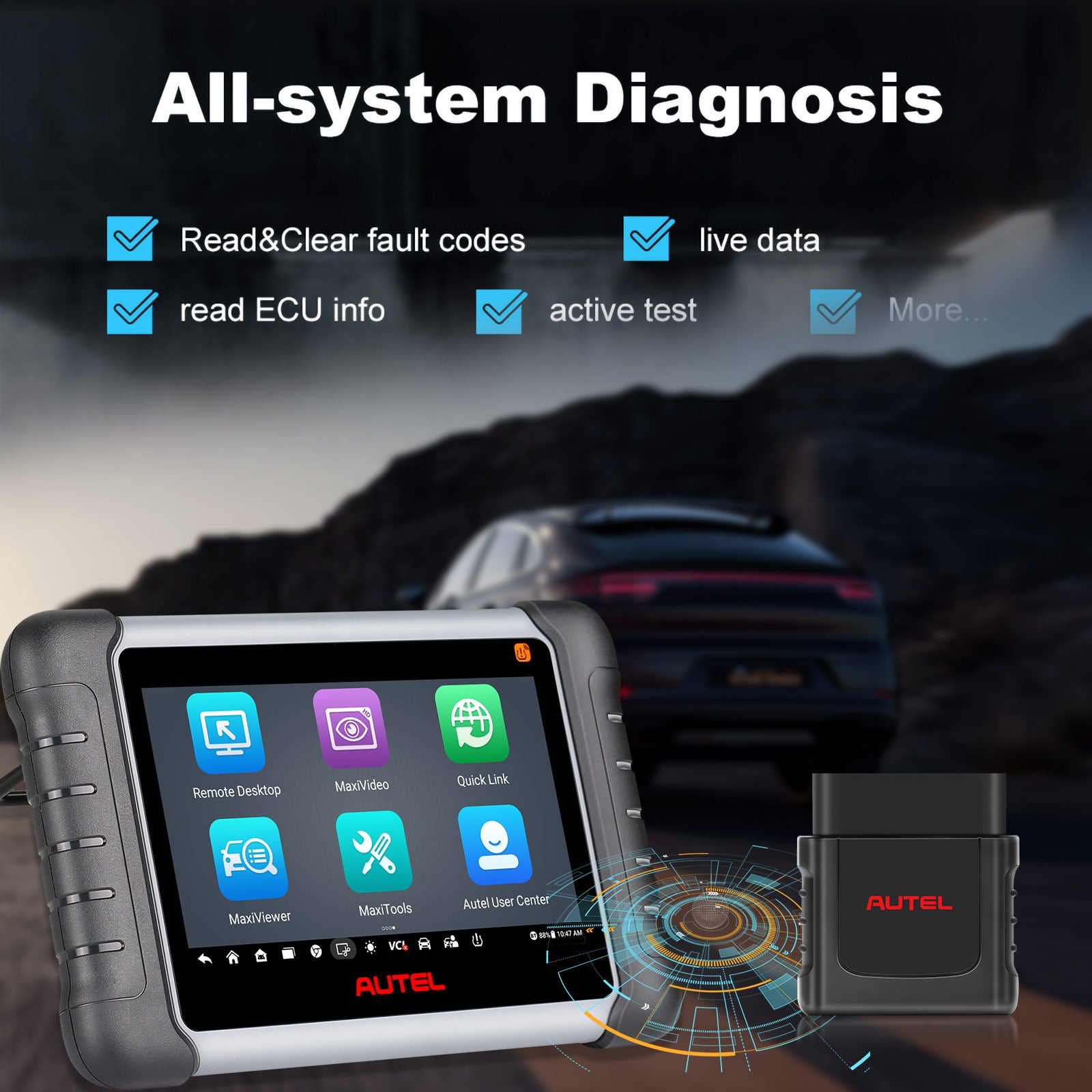

OE-Level All System Diagnostics: The Autel MP808Z-TS performs a wide-range of OE-level diagnostics for all electronic systems. Besides of all the functions of the MK808 / MK808TS, you can use this Autel scanner to carry out advanced Bi-directional Control and the Guided Function of V-W and Benz. It is a combination of advanced diagnostics and complete TPMS functions.
Full TPMS Diagnostics: Autel MP808Z-TS offers comprehensive TPMS functions to handle TPMS related problems with maximum convenience. Feel free to use this Autel scanner to quickly check the status of the Tire Pressure Management System, and perform 98% of TPMS sensor activation, Autel MX-sensor programming, and TPMS relearn for more than 80 US, Asian and European vehicle makes and models.
31+ Maintenance Functions: MP808TS has been updated from 18 service functions to over 30 service functions. While enjoying the original functions including Oil Reset, EPB, BMS, SRS, ABS Bleed, SAS Calibration, DPF Generation, Injector Coding, Throttle Matching, Suspension Matching, TPMS, etc. You can also perform newly added Cylinder, Turbocharging, Clutch, and Trans Adaption when needed. Moreover, Maxipro MP808TS can be constantly upgraded with more functions to meet your various maintenance needs.
NOTE: Supported services functions vary from vehicle to vehicle. Welcome to contact us to know more about the adaptability of 30 service functions in the tested vehicles.
Outstanding Hardware: The excellent software also requires solid hardware. MP808Z-TS has equipped with a set of reliable hardware! Android 4.4.2, Cortex-A9 processor (1.4 GHz), 32GB storage, 7-inch LCD touch screen, Wi-Fi, HDMI Type A, 32GB Micro SD card slot, auto-brightness adjustment, etc. Every move and touch on the tablet would be smooth and apt! The MaxiPRO MP808Z-TS would keep pace with the market at least in the coming 10 years and help you stand on the summit of automotive aftermarket!
Active Test/ Bi-directional Control: Autel MP808Z-TS supports active test, you can take information from the scanner and also give commands to the automobile through this Autel scanner. By interactively operating and testing vehicle devices like wipers, door controls, windows, a/c, engine fans, idle control, etc., you are able to fully understand the nature of the car problems.
It requests information or command a actuator to perform specific tests, such as turning the fuel pump on and off, cycling the a/c clutch on and off, performing an evaporative emissions leak test, fast troubleshooting your car, not simply by reading codes, reading live data.
Online ECU Coding:
Perform Online software modifications to a vehicle to allow the use of functions not available in the car when it left the factory for different reasons, mainly local regulations. Online coding for BM-W, for V-W, for Nissan, for Nissan-GTR, for Infiniti, for Hyundai, for Toyota, for Ford, for Mazda, etc.;
Offline ECU Coding/Adaptation:
Write the codes from the original modules to newly replaced modules, work for Jaguar, for Vauxhall, for Opel, etc.
Rank First In Autel TPMS Product Line: Same TPMS Functions As TS608 > MS906 Pro-TS/MS906TS> MP808TS>MK808TS
As the newly launched Autel Scanner with comprehesnive diagnostic funbction, Autel MP808Z-TS inherited all the TPMS function from Autel TS608, making it the most powerful TPMS tool in Autel TPMS product line:
New Added TPMS ToolKit Functions: 1. Program TPMS by OEM Part No; 2. Unlock TPMS ECU for Toyata; 3. Unlock REDI7002A; 4. Awake OEM Sensors; 5. Check Key Fob Signal
With Autel MaxiPRO MP808Z-TS, it is easy to perform all the following functions:
1. Program TPMS by OEM Part No: TPMS by OEM Part No.: Easy way to activate and program MX-Sensors with the original sensor’s OEM part number, able to program up to 20 sensors at the same time.
1. Activate All Known TPMS Sensors: Trigger almost all known TPMS sensors (315/433MHz), including the OE sensors, Autel MX-sensors, and other sensors in the market.; Sleep/Park Mode: For those OEM sensors that are delivered in Sleep Mode, this function is used to wake and set them to Park Mode.
2. TPMS Check & Diagnostics: check the status of the TPMS system, retrieve sensor IDs and DTCs present in the ECU, detect TPMS DTCs with detailed description, TPMS Sensor live data such as sensor ID, tire pressure, tire temperature, sensor battery, sensor position, and
sensor frequency, perform special functions for resetting or re-matching, and then clear the DTCs and turn off the faulty light
3. Programming Autel MX-Sensor: Programs new MX-Sensor to replace OEM sensors by 4 methods
- Copy by Activation – Program the sensor ID retrieved from activated sensor
- Copy by OBD – Program the sensor ID retrieved from TPMS ECU
- Copy by Input – Manually input the original sensor ID for programming
- Auto Create – Create a random ID to program MX-Sensor
4. TPMS Sensors Relearn: This function is used to write the newly programmed sensor IDs into the vehicle ECU for sensor recognition. Four relearn methods: OBD Relearn; Stationary Relearn; Automatic Relearn; Copy Relearn
5. TPMS Retrofit: For cars that don't have TPMS module, this function can install TPMS System to backup and save the data of the original vehicles for safety driving.
Other Features:
99% Coverage + 13 Languages: Autel MP808Z-TS supportS 150 car brands. 99% of vehicles on the road is covered. To clear the language barriers, the Autel MaxiPRO MP808Z-TS has supported 13 languages such as English, French, German, Spanish, Korean, Japanese, Russian, Italian, etc. Not only does the Autel scanner cover a wide range of languages, but it is also one of the best in terms of model coverage!
Note: If you need to switch to a different language, please provide device S/N (12 digits, at the back of the device, eg: VB7GL6C0579)

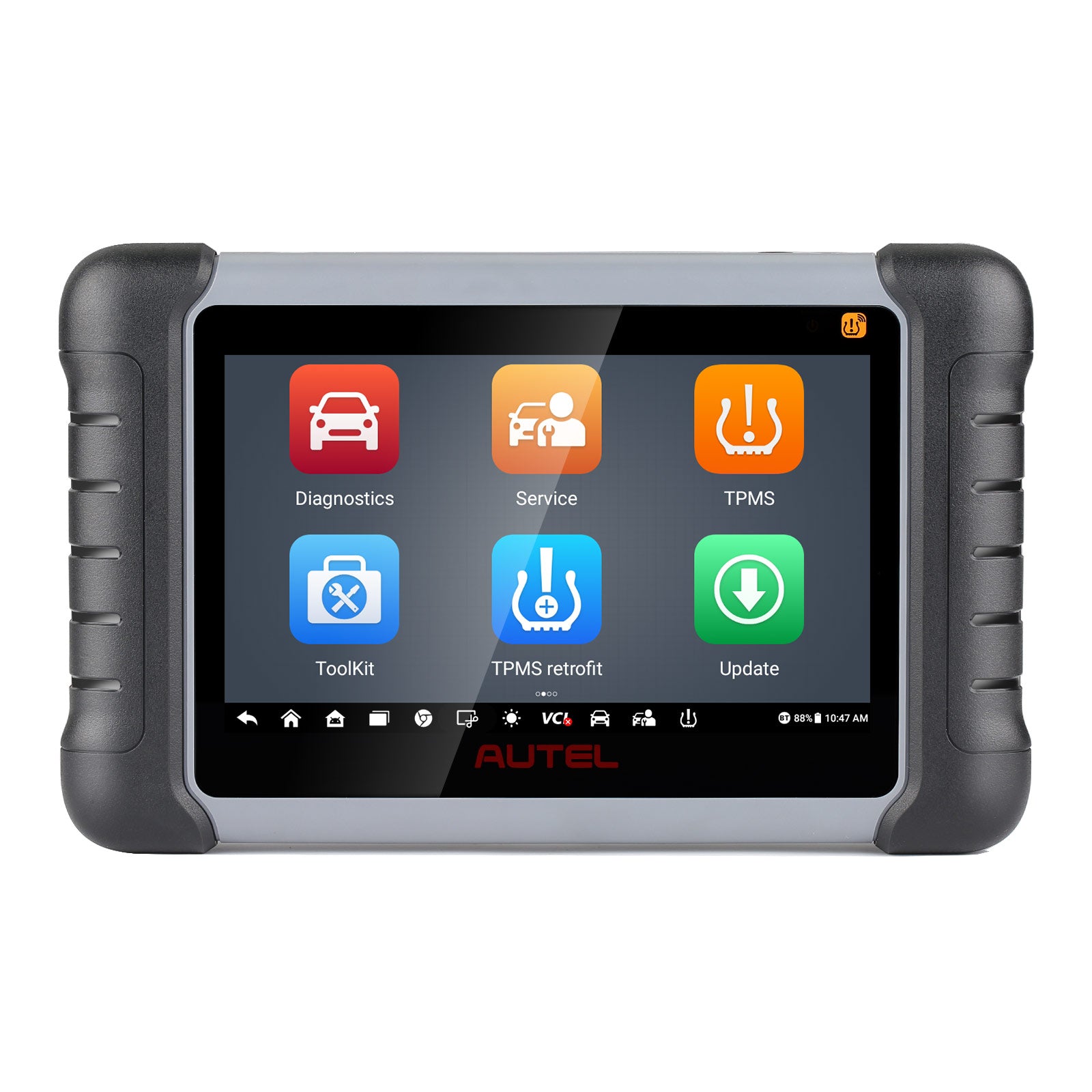

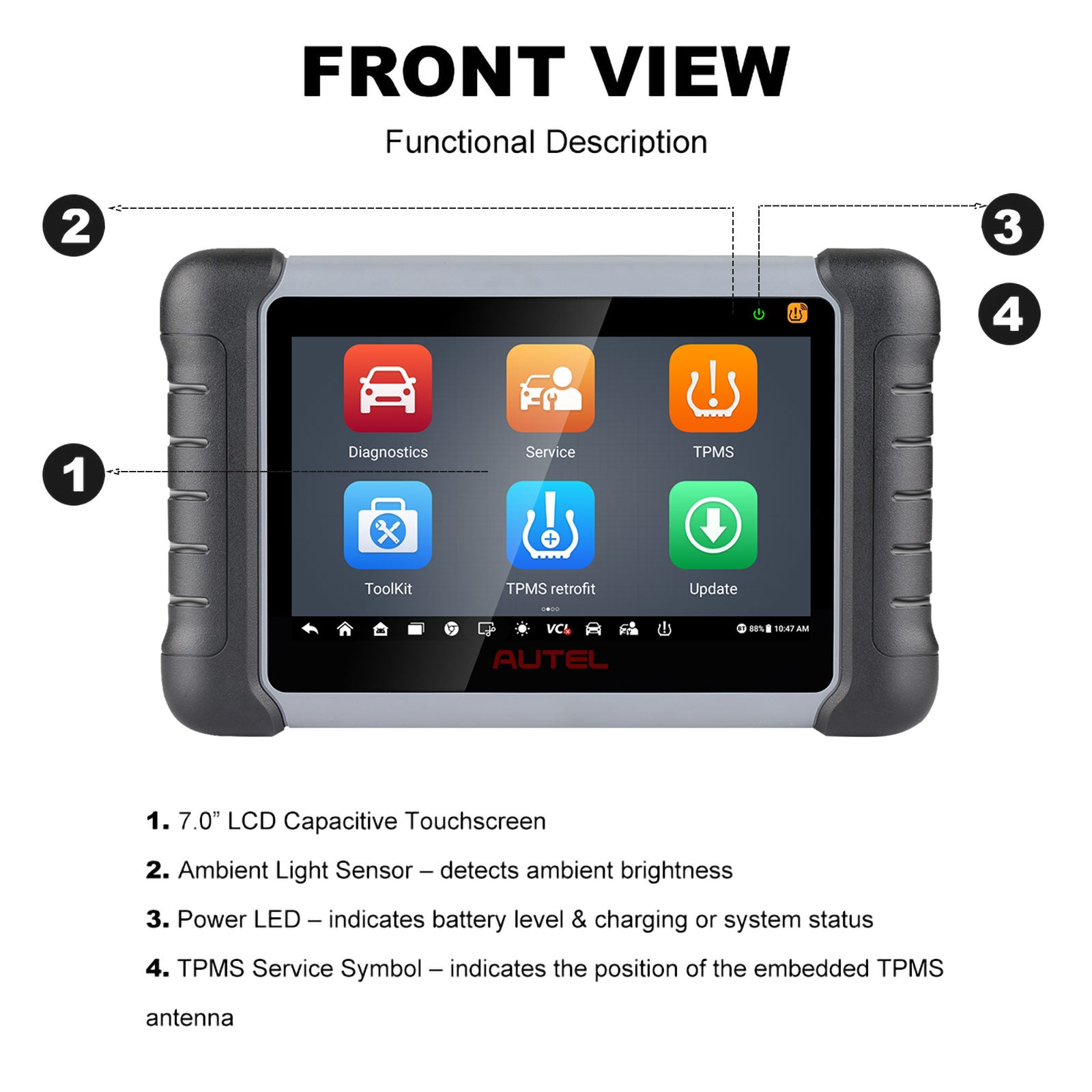

User-Friendly Design: 7-inch LCD touch screen with 1024*600 display quality; Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time; Automatic system and software updates with real-time push message notifications via Wi-Fi.
FCA AutoAuth Access: Now MP808Z-TS also has full access to protected FCA vehicles! With an authenticated AutoAuth account, you can bypass SGW module in 2017 & later FCA cars (Chrysler, Dodge, Jeep, Alfa Romeo, Fiat, etc.) and perform diagnostics: clear codes, bi-directional functions, active tests, actuation & relearns, even more. *Reach us for details.
Extensive Vehicle Coverage - More Than 80 Makes
Asia:
Acura, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Scion, Subaru, Suzuki, Toyota...
Europe:
Abarth, Alfa, A-udi, Bentley, Benz, BM-W, Bugatti, Citroen, Dacia, EU Ford, Fiat, Jaguar, Lancia, Land Rover, Maybach, Mini, Opel, Peugeot, Porsche, Renault,
Saab, Seat, Skoda, Smart, Sprinter, Vauxhall, Volvo, V-W...
USA:
Chrysler, Ford, GM...
Australia:
AU Ford, Holden...
Specifications:
| Situation Recommended | Indoor |
| Operating System | AndroidTM 4.4.2, KitKat |
| Processor | Cortex-A9 quad-core processor (1.4 GHz) |
| Memory | 32GB |
| Display | 7-inch LCD capacitive touchscreen with 1024x600 resolution |

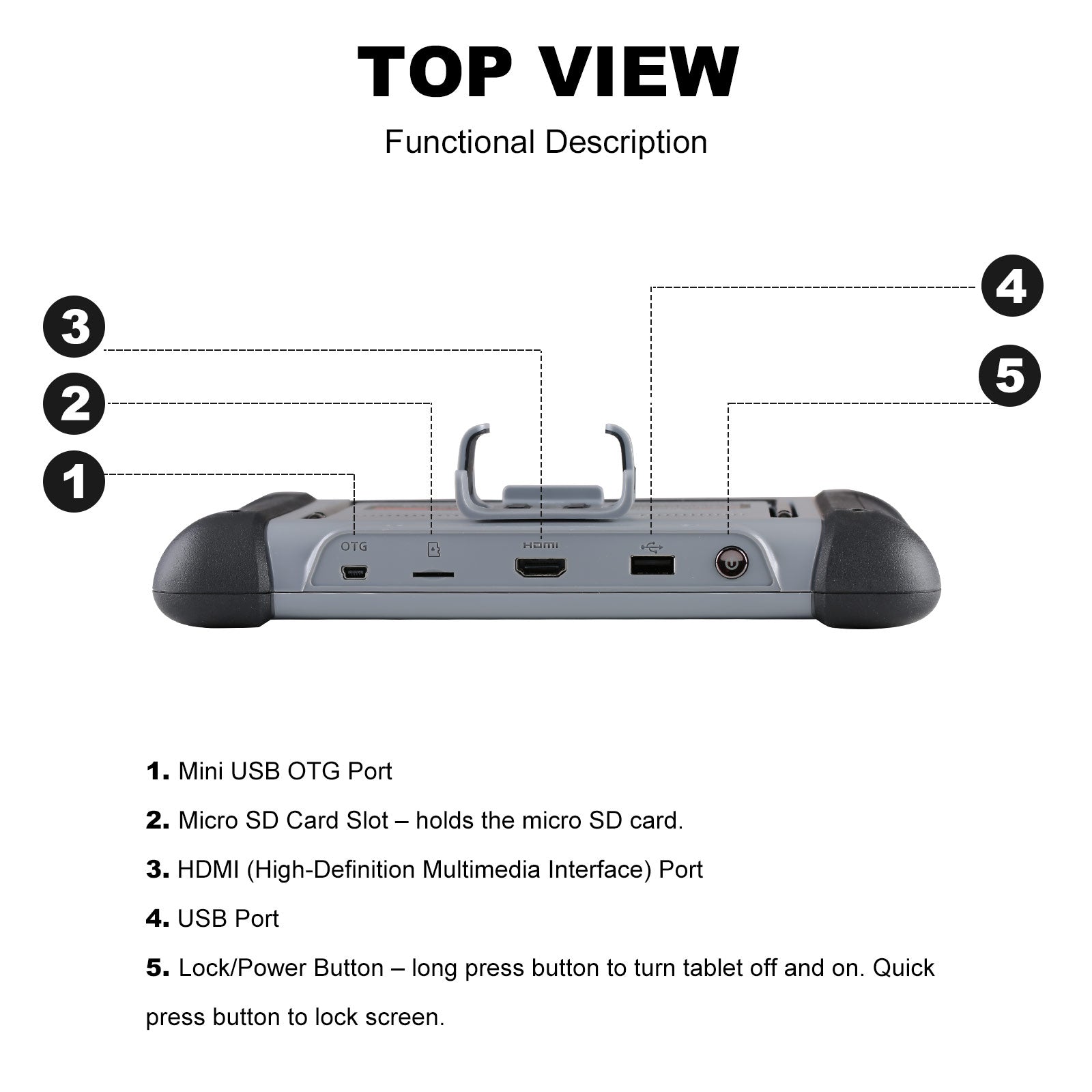

| Connectivity |
Mini USB 2.0 USB 2.0 |
| Wi-Fi | |
| HDMI Type A | |
| Micro SD card slot (supports up to 32GB) | |
| Sensors | Light sensor for automatic brightness adjustment |
| Audio input/output |
Input: N/A |
| Output: Beep | |
| Power and Battery |
3.7 V/5000 mAh lithium-polymer battery |
| Charges via 5 VDC power supply | |
| Tested Battery Life | Around 7 hours of continuous use |
| Battery Charging Input | 5 V/1.5 A |
| Power Consumption | 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temp. | 0 to 55°C(32 to 131°F) |
| Storage Temp. | -20 to 60°C (-4 to 140°F) |
| Operating Humidity | 5% - 95% non-condensing |
| Dimensions (W x H x D) | 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”) |
| Net Weight | 885 g (2.31 lb.) |
| Protocols | ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |
MK808Z-TS vs MK808Z-TS vs MP808Z-TS vs MK906 Pro TS
| Autel MK808Z-TS | Autel MK808Z-TS | Autel MP808Z-TS | Autel MK906 Pro-TS | |
|---|---|---|---|---|
| Operation System | Android 11 | Android 11 | Android 11 | Android 10 |
| RAM & ROM | 4GB / 64GB | 4GB / 64GB | 4GB / 64GB | 4GB / 128GB |
| Battery Capacity | 5000 mAh | 5000 mAh | 5000 mAh | 11600 mAh |
| Device Camera | 16MP Front Camera & 16MP Rear Camera | |||
| Wi-Fi | 2.4 & 5.0 GHZ | 2.4 & 5.0 GHZ | 2.4 & 5.0 GHZ | 2.4 & 5.0 GHZ |
| Services Functions | 28+ | 28+ | 31+ | 36+ |
| Bi-Directional Control | ✓ | ✓ | ✓ | ✓ |
| Battery Testing (with BT506) | ✓ | ✓ | ✓ | ✓ |
| Full TPMS Functions | Professional | Professional | Professional | Professional |
| ECU Coding | Not Support | Not Support | ✓ | ✓ |

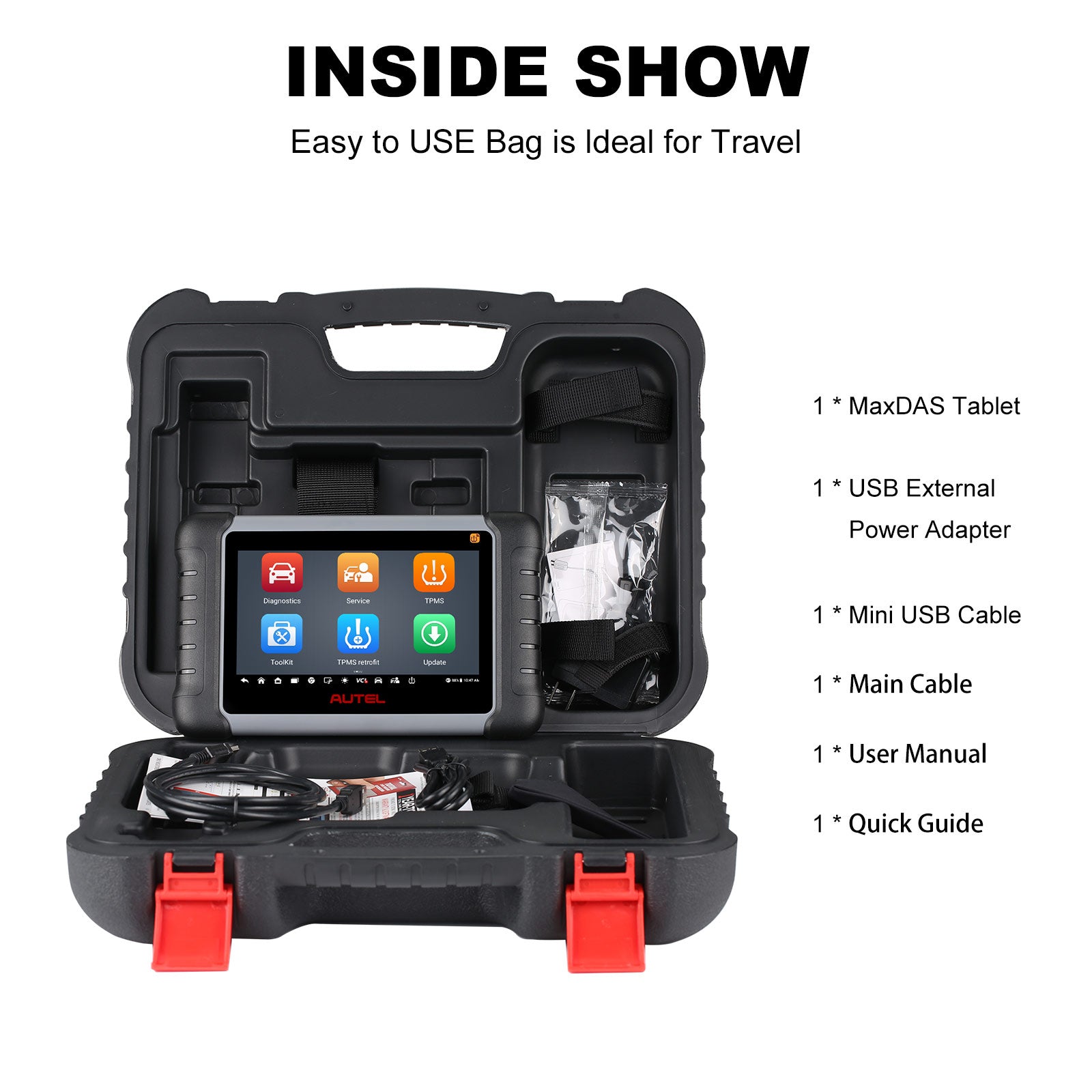

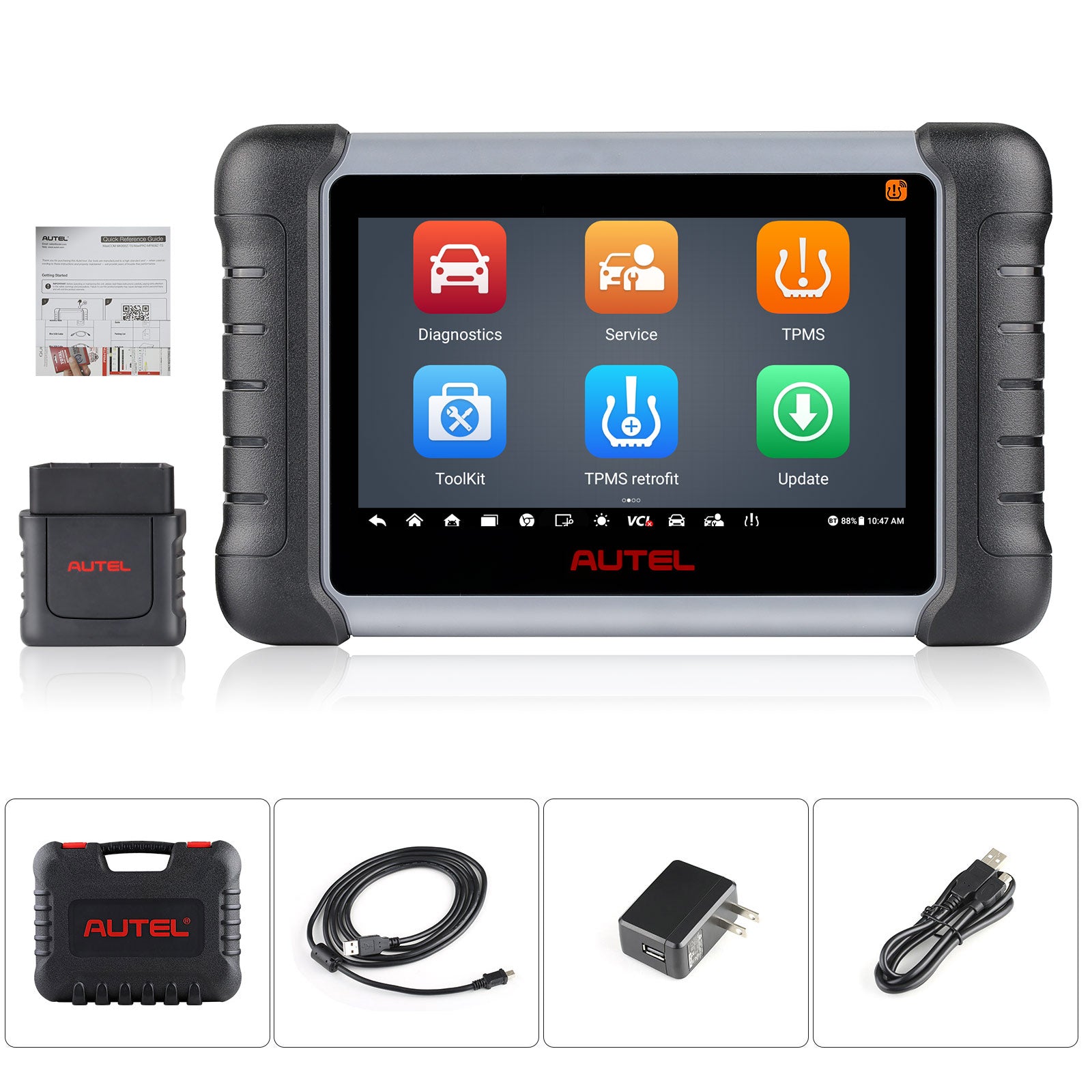

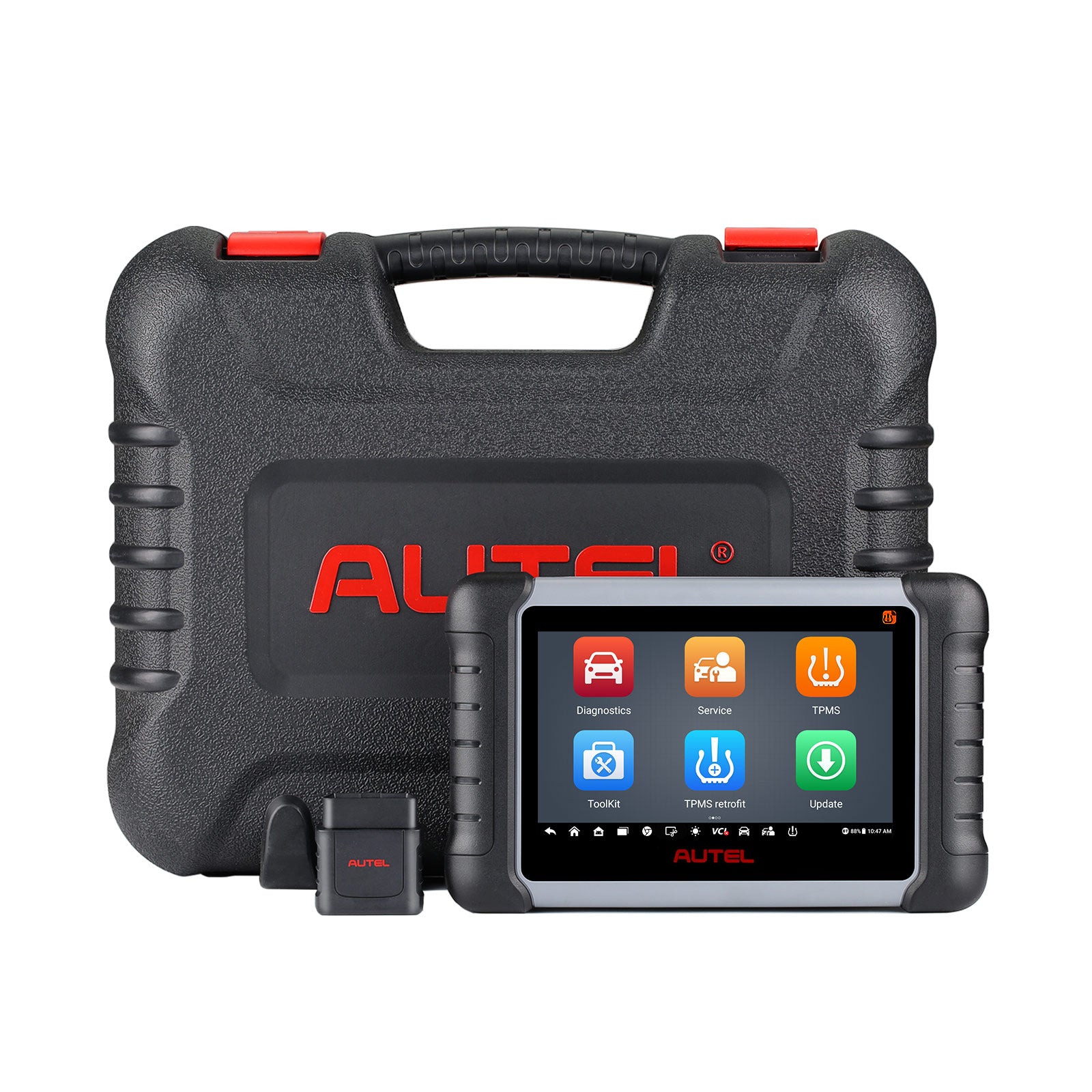

Package Includes:

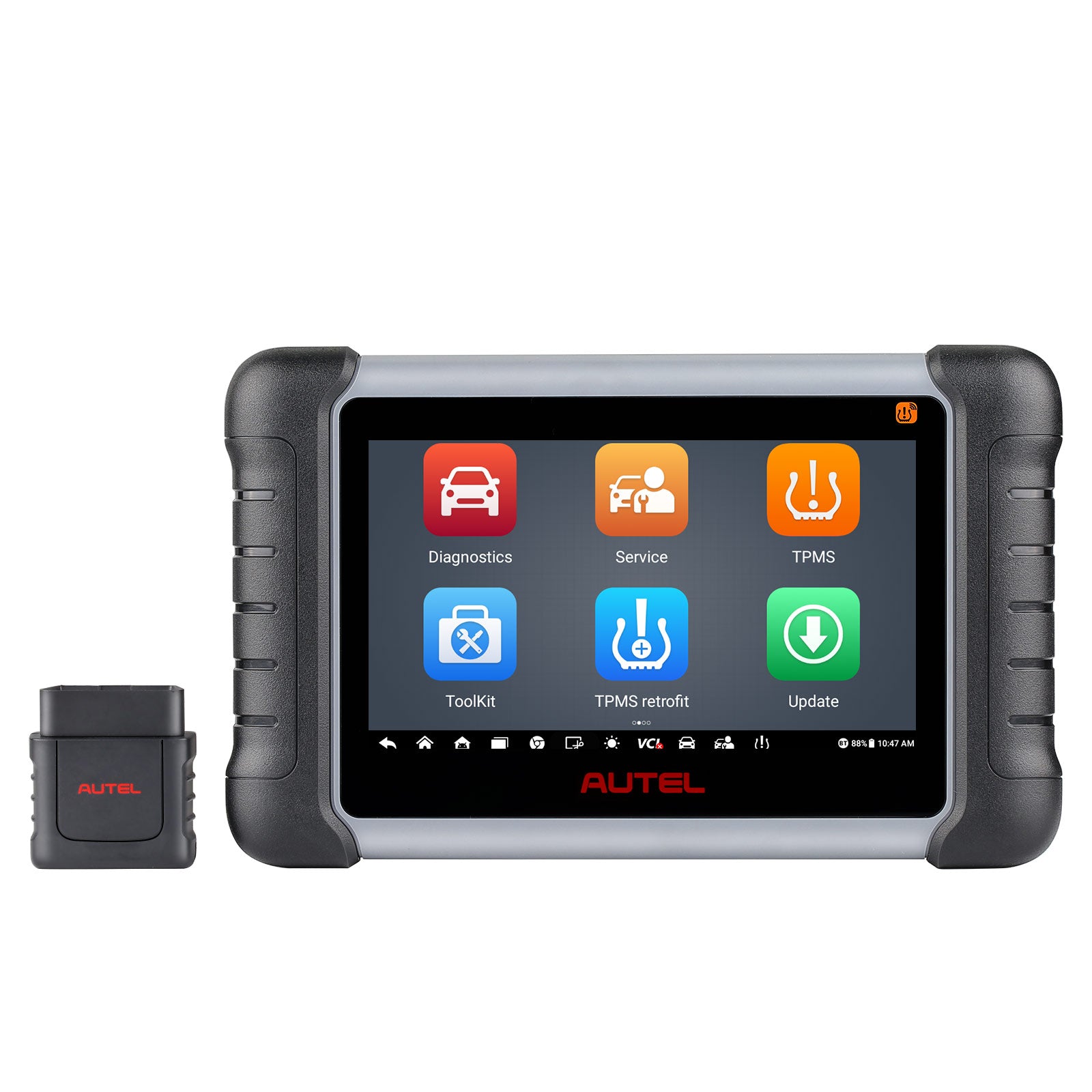

1pc x MaxiPRO MP808Z-TS Main Unit
1pc x USB Cable (for charging)
1pc x USB Cable (for test)
1pc x MaxiVCI Mini
1pc x USB External Power Adapter
1pc x User Manual
1pc x Quick Reference Guide
1pc x Carry Case
