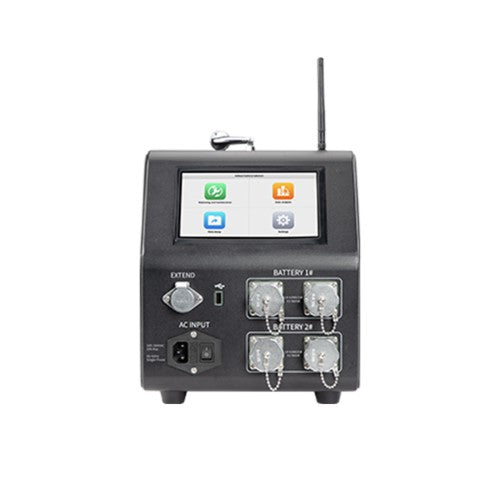

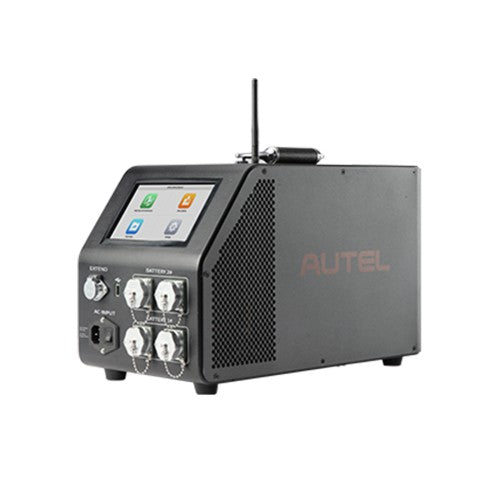

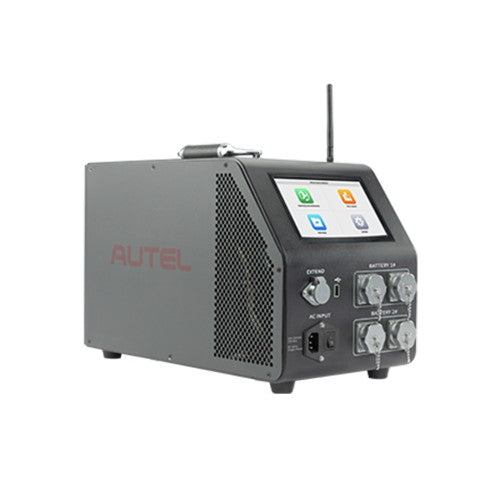

AUTEL MaxiEV BCE100 EV Battery Pack Cell Balancer Supports prevents overcharging and discharging, ensuring the even charging of module cells for optimized battery performance.
AUTEL MaxiEV BCE100 features overvoltage protection technology to maintain safe cell voltage levels and additional safeguards against undervoltage, overcurrent, short circuit, and reverse polarity, enhancing safety during charging.
AUTEL MaxiEV BCE100 Features:
- Detect and charge module cells evenly and prevent overcharging of cells.
- Ensure accurate measurements by detecting and correcting voltage and current values.
- Overvoltage protection technology ensures that the cell voltage is close to the target threshold during the testing process.
- Additional protections for undervoltage, overcurrent, short circuit and reverse polarity.
AUTEL MaxiEV BCE100 Specifications:
CHARGE AND DISCHARGE VOLTAGE RANGE: 1.8-5V
CHARGE AND DISCHARGE CURRENT RANGE: 0.1-5A
VOLTAGE DETECTION ACCURACY: ±0.1%FS±2mV ( maximum range 5 V)
CURRENT SAMPLING ACCURACY: ±1%FS±0.05A ( maximum range 5 A)
CHARGE AND DISCHARGE POWER: 600W Max
TEST CELL QUANTITY: Max 2 Packs and 12 Cells (max) Per Pack (Supports 2X12 / 1X24)
POWER INPUT: AC 110V/220V
CHARGE CONTROL: Constant Current and Voltage Charging
DISCHARGE WORKING MODE: Constant Current
PROTECTIVE FUNCTION: Input Over-Current and Over-Voltage Protection Output Over-Current and Over-Temperature Protection
DIMENSIONS (WEIGHT): 496x246x262mm (14kg)
AUTEL MaxiEV BCE100 Packing List:
1pc x AUTEL MaxiEV BCE100 EV Battery Pack Cell Balancer
