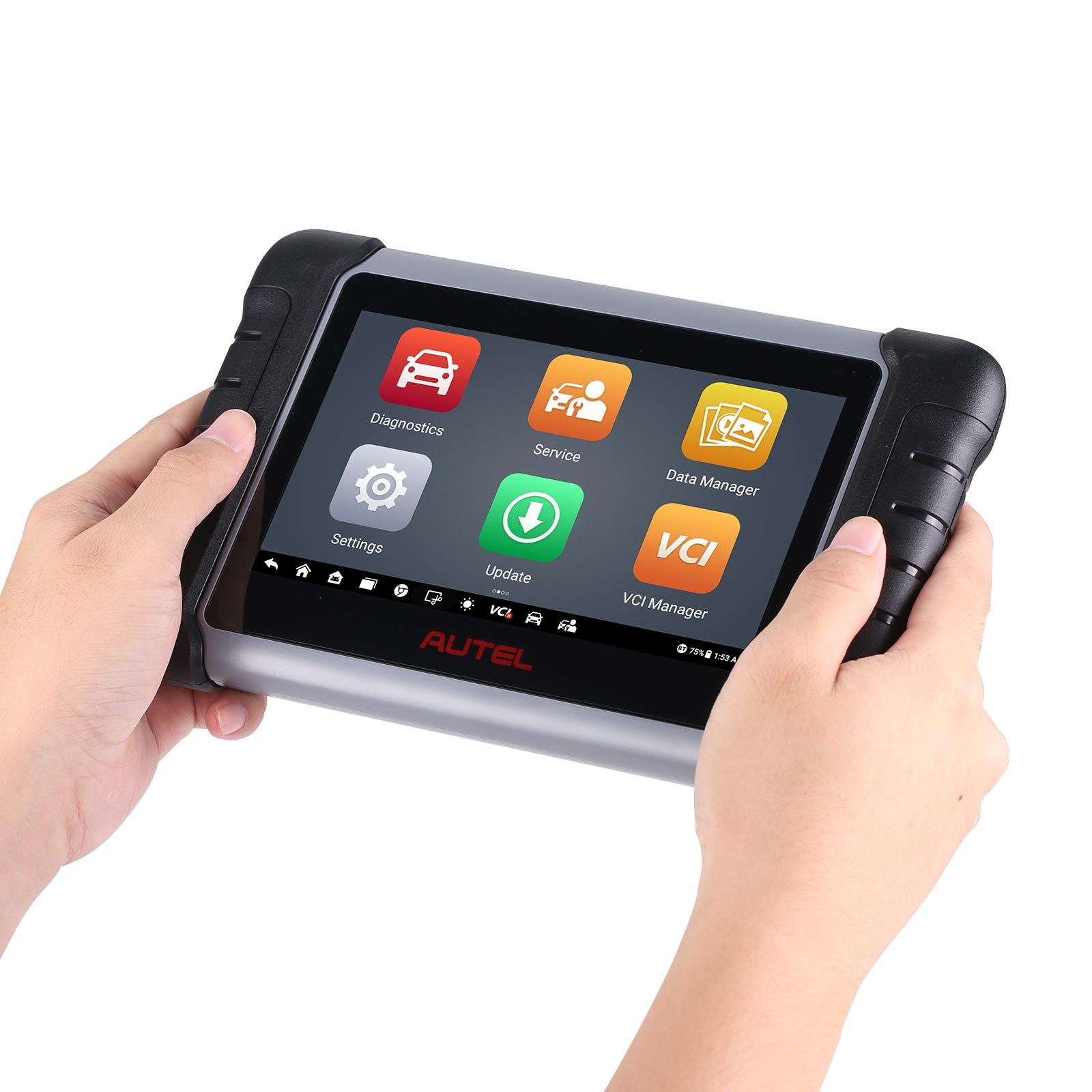

Autel MaxiCOM MK808Z-BT Bi-Directional Car Diagnostic Scan Tool
-
Express Estimated Delivery:Nov 28 - Dec 02
-
Free Shipping Method: Estimate dilevery 8-19 business days
Guarantee safe & secure checkout
Autel MaxiCOM MK808Z-BT Bi-Directional Car Diagnostic Scan Tool
Autel MaxiCOM MK808Z-BT Bi-Directional Car Diagnostic Scan Tool Supports Active Tests 28+ Services, BT506 MV108, FCA AutoAuth
Specification:
1.Autel MK808Z-BT= MK808BT Pro
2.Compatible with BT506/MV108
3.Best-value Bi-directional Control Autel Scanner
4.All Systems Diagnostic+ 28+ Services & Special Functions
Featuring the powerful Rockchip RK3566 processor, and a 7.0 inch LCD capacitive touchscreen, based on the Android multitasking operating system, and combined with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, the MaxiCOM MK808Z-BT is your ideal auto diagnostic and service tool. MK808Z-BT provides you with superior special functions, including Oil Reset, EPB(Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), and DPF (Diesel Particulate Filter).
Autel MK808Z-BT Highlights:
Global version. No IP Restrictions
Autel MK808Z-BT= MK808BT Pro
Upgraded of MK808BT/MK808/MK808S/MX808
2023 Autel Most Worth Buying Wireless Diagnostic Tool. Best-value Bi-directional Control Autel Scanner
All Systems Diagnostic+ 28+ Services & Special Functions
Equipped VCI Mini, USB Wired+Wireless Diagnostic
Beat MK808BT in Communication Stability. Stable BT Connection, working range up to 30 feet(10m)
Compatible with BT506/MV108 (Original)
One Year Free Software Updates, later $163 per year
Supports FCA Autoauth and Renaul-t gateway bypass
Multi-Language Supported: English, German, Italian, Spanish, French, Dutch, Portuguese, Swedish, Polish, Korean, Russian. Note: The default language is English. If you want another language, please send S/N for us to change when you receive the scanner. Thanks.
Autel MK808Z-BT Scanner Features:
NEW! Support active test and complete special functions,
NEW! Compatible with Videoscope and MaxiBAS BT506 to perform Battery Analysis,
Extraordinarily powerful Rockchip RK3566 processor,
7-inch LCD capacitive touchscreen with 1024 x 600 resolution display,
Internal reliable 64GB On-board Memory for better performance,
Unique ergonomic design with rubberized outer protection and a rugged internal housing,
Android 11 Operating System for fast boot-up and multitasking,
Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes,
Complete capabilities for codes, live data, electronic control unit (ECU) information, and vehicle control systems, etc.
Data Manager saves customer and vehicle records, scanner data and technician notes for future review,
Read/clear codes functions,
Display live data in text, graph & analog for easy data review,
Auto VIN technology can automatically identify the vehicle’s make, model, and year information,
Reset Steering Angle Sensor (SAS),
Support forced DPF regeneration.
2023 Autel MK808Z-BT added bi-directional/active test to match with full system diagnosis!
>>Full System Diagnosis: Utilizing Auto Vin and Auto Scan, Autel MK808Z-BT diagnostic scanner can automatically retrieve the vehicle information and perform a comprehensive scan of all available systems, including but not limited to Engine, Transmission, SRS(Airbag), ABS, Airbag, PCM, ECM, TCM, CTM, etc, getting accurate and in-depth results across all automotive systems.
>>Read/EraseCodes – Displays detailed information of DTC records to erase DTC records and other data
View live data stream in text or graph: Retrieves and displays live data and parameters from the vehicle’s ECU
ECU information: Retrieve ECU information of the tested control units including unit type, version numbers, and other specifications, etc.
Freeze frame Data: Freeze error codes at the moment occurs, and you can analyze the error code caused.
>>Bi-directional (available to download since 1st, June,2022): Autel MK808Z-BT bi-directional scanner allows you to request information or command a module to perform specific tests and functions to verify system components' status effortlessly in seconds. while observing the resulting data to troubleshoot and fast repair, saving the mechanic/workshop loads of time and helping them get through more jobs every day.
Commonly-Used Tests include:
Door Locking Test / Fuel Injector Test / Cycling ABS Motor Pump
Cooling Fan Test / AC System / Window / Light / Door Lock / Headlamp Test, etc.
Note:
Autel MK808Z-BT supports bi-directional controls on various modules but it's not universally compatible for all vehicles. Available tests vary depending on the make, year, and model. Please provide VIN for us to check compatibility
28+ Services Functions Cover All Most Vehicles Maintenance Needs
Autel MK808Z-BT automotive diagnostic tool performs 28+ maintenance services including Oil Reset, EPB Reset, SAS Reset, Battery Registration, Throttle Reset, ABS Bleed, Injector Coding, IMMO keys(add new keys, delete lost keys), Window Door Roof, Headlamp and etc, Meeting common maintenance needs. ✔️Win more business for car workshop! ✔️Save you hundred bucks and time for home mechanician/DIYer
>>>Commonly Used Maintenance Functions:
Oil Reset: Turn off the oil light, and reset the service mileage.
ABS Bleed: Cycling the ABS system to bleed the air out of the ABS system before traditional bleeding.
Injector Coding: Coding the new injector after replacement.
IMMO Keys: Add new keys, key learning, disable lost keys. (For Asian cars with low-grade IMMO system only)
>>>More Hot Maintenance Functions for Fast Maintenance:
Throttle Adaption, Airbag Reset, SAS Calibration, Suspension Calibration, Gear Learning, Sunroof Initialization, Seats Calibration, Language Change, Headlight Matching, A/F Setting, WIN DR Roof, Odometer, Cylinder, Turbocharging, Limit, Trans Adaption, Power Balance, Component Matching, etc.
Autel MaxiCOM MK808Z-BT diagnostic system supports 4 methods for Vehicle Identification.
1.Auto VIN Scan: The MaxiCOM diagnostic system features the latest VIN-Based Auto VIN Scan function to identify vehicles and scan all the diagnosable ECUs and run diagnostics on the selected system. This function is compatible with 2006 and newer vehicles.
2.Manual VIN Input: For vehicles not supporting the Auto VIN Scan function, you may manually enter the vehicle VIN.
3.Automatic Selection: The Auto VIN Scan can be selected after selecting the test vehicle manufacturer.
4.Manual Selection: When the vehicle's VIN is not automatically retrievable through the vehicle's ECU, or the specific VIN is unknown, the vehicle can be manually selected.
Battery Testing: Work with Autel BT506
Autel MaxiCOM MK808Z-BT can work with Autel BT506 battery tester to In Vehicle test and Out of Vehicle test function. In-vehicle Test is used for testing batteries that are installed in a vehicle, includes battery test, starter test, and generator test. Out-vehicle test is used to test the condition of batteries that are not connected to a vehicle. This function aims to check the health status of the battery only.
Digital Inspection: Work with MV108
Autel MV108 Digital Inspection Tool quickly operates as a digital video oscilloscope simply by connecting the mk808z-bt diagnostic device. This feature allows you to inspect hard-to-reach areas that are often hidden from view, and with the ability to record digital still images and video, this provides you with an economical solution for safely and quickly inspecting machinery, facilities and infrastructure.
Note: BT506 & MV108 are not included in the package and requires additional purchase.
MK808Z-BT vs MK808/MX808
MK808-Z BT Scan Tool Specifications:
| Recommended Use | Indoor |
| Operating System | Android 11 |
| Processor | Rockchip RK3566 |
| Memory | RAM 4G+ROM 64G |
| Display | 7-inch LCD capacitive touchscreen with 1024x600 resolution |

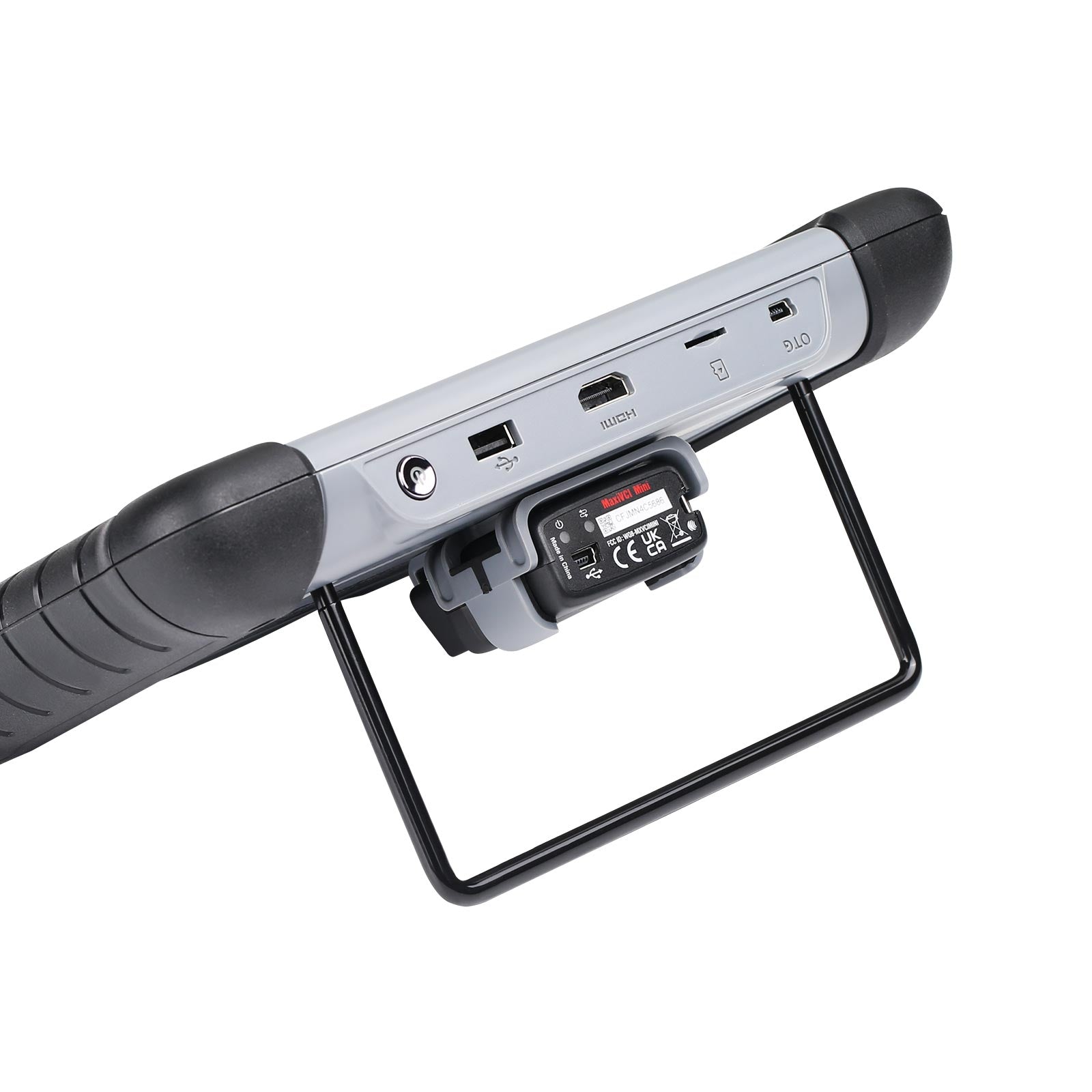

| Connectivity | Mini USB 2.0 USB2.0 Wi-Fi(2.4 & 5GHz) HDMI Type A Micro SD card slot(supports up to 64GB) |
| Sensors | Light sensor for brightness auto changing |
| Audio input/output | Input: N/A Output: buzzer |
| Power adn Battery | 3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply |
| Tested Battery Life | Around 7 hours of continuous use |
| Battery Charging Input | 5V/1.5A |
| Power Consumption | 600 mA(LCD on with default brightness,Wi-Fi on)@3.7 V |
| Operating Temp | 0 to 55°C(32 to 131°F) |
| Storage Temp | -20 to 60°C (-4 to 140°F) |
| Operating Humidity | 5%-95%non-condensing |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |

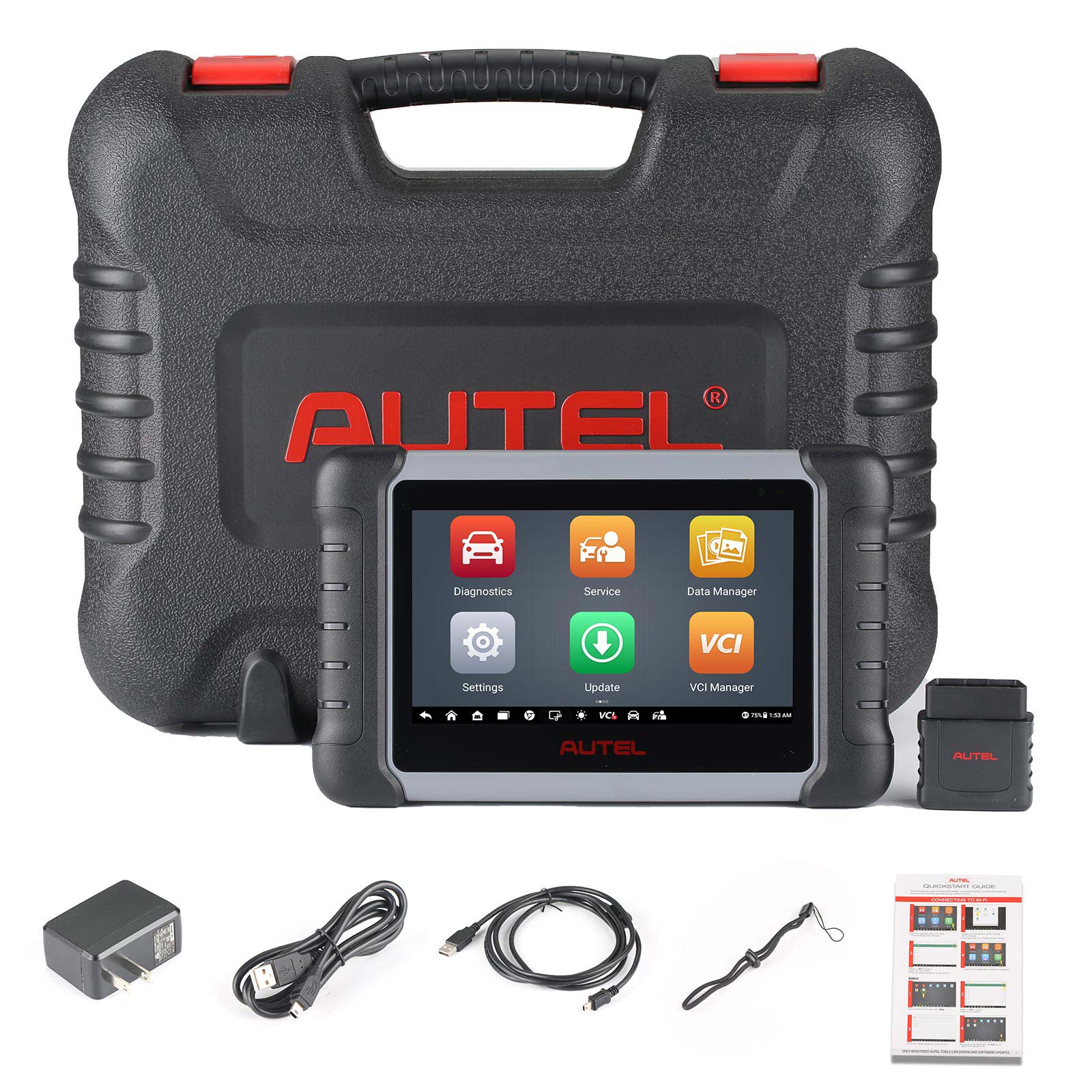

Package Includes:
1pc x MK808Z-BT Tablet
1pc x USB External Power Adapter
1pc x USB Cable(for testing)
1pc x USB Cable(for charging)
1pc x MaxiVCI Mini
1pc x Quick Reference Guide
1pc x User Manual
