Autel G-BOX Tool for Benz All Keys Lost Work with Autel MaxiIM IM608
Adapter Autel G BOX for Mercedez-Benz & BM-W vehicles Supports Benz All Keys Lost for Autel IM508 IM608, can read W204 ECU data & W207 EIS
What is Autel G-BOX used for?
1. Work with the Autel MaxiIM IM608
2. AUTEL G-BOX tool is accessory for Mercedes All-Key-Lost
Notice: This AUTEL G-BOX Adapter has stop to produce and updated to the new version:
Autel G-BOX2 Tool for Mercedes Benz All Key Lost
Description:
The Autel G-Box is designed to be used on Mercedez-Benz vehicles with DAS3 CAN EIS/EZS in AKL.
It helps to reduce the time for reading the ECU data from W204 and W207 EISs by over 85%.
Autel G-Box Adaprer main character:
1. Supports Mercedes Benz All Keys Lost, faster calculate password
2. Supports IM608 or IM508 with XP400
3. Used for Faster Mercedes ECU data and EIS password calculation
4. Mercedes DAS3 can EIS/EZS all keys lost
5. Reduces reading time of W204 ECU data & W207 EIS by over 85%
6. No need to remove and reinsert the key for W221 & W164 after 2009 models
7. Can read and write BM-W DME/DDE ISN in boot mode
8. Compatible with Auro IM600 & Auro IM100 with XP400
How to do via OBD When All Keys of Mercedes-Benz Vehicle Are Lost
This method is suitable for Mercedes-Benz W204, W207, W216 and W164 EISs after the year 2009.
How to connect step by step:
1). Connect the G-Box to vehicle' s OBDII
2). Remove the fuse of vehicle EIS, Connect the Relay ports to the fuse using the supplied fuse cable
3). When the vehicle has an ELV, connect the K7 port and ELV plug using the supplied K-line cable
4). Connect the G-Box to the Autel Diagnostic Tablet (MaxiIM IM608, IM508)
How to do on Bench When All Keys of Mercedes-Benz Vehicle are Lost
This Method is suitable for all Mercedes-Benz EISs that are already supported by Autel Diagnostic Tablet
How to connect step by step:
1. Plug the G-Box to the Mercedes-Benz EIS using the packed DB15 Cable
2. Plug to the DC port of G-Box using a power adapter (DV 12V)
3. Plug the G-Box to the Autel Diagnostic Tablet (MaxiIM IM608, IM508)

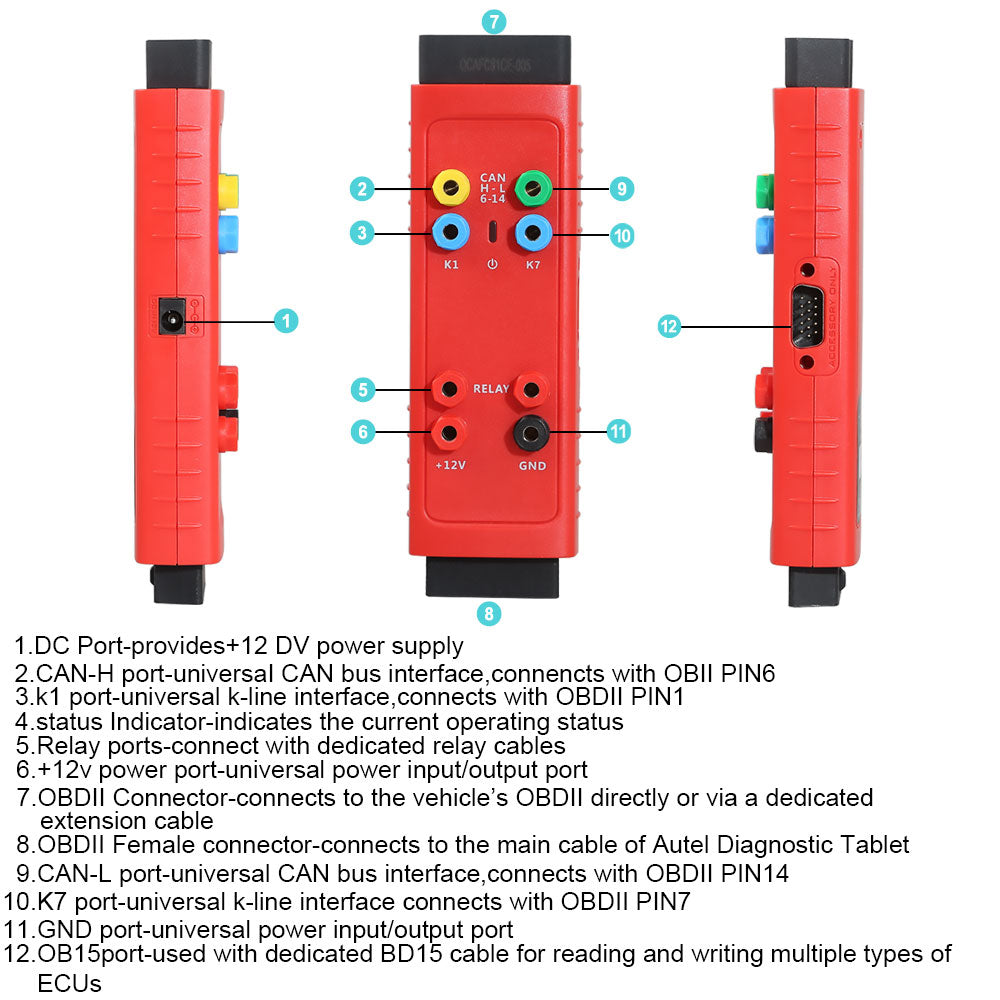

Autel G-Box Specifications:
DC Port: Provide +12 DV power supply
CAN-H Port: Universal CAN bus interface,connects with OBDII PIN6
k1 Port: Universal k-line interface,connects with OBDII PIN1
Status Indicator: Indicates the current operating status
Relay Ports: Connect with dedicated relay cables
+12v Power Port: Universal power input/output port
OBDII Connector: Connects to the vehicle's OBDII directly or via a dedicated extension cable
OBDII Female Connector: Connects to the main cable of Autel Diagnostict Tablet
CAN-L Port: Universal CAN bus interface,connects with OBDII PIN 14
K7 Port: Universal power input/output port
GND Port: Universal power input/output port
OB15 Port: Used with dedicated BD15 cable for reading and writing multiple types of ECUs

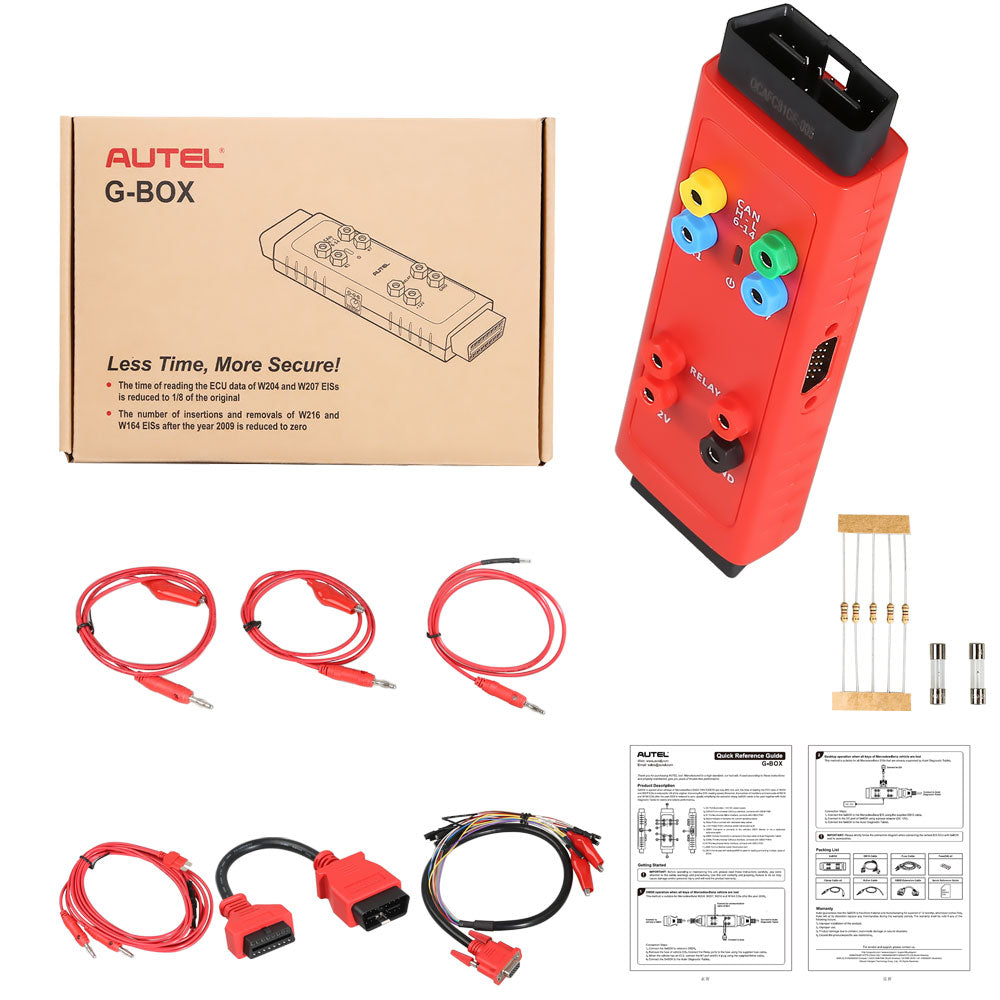

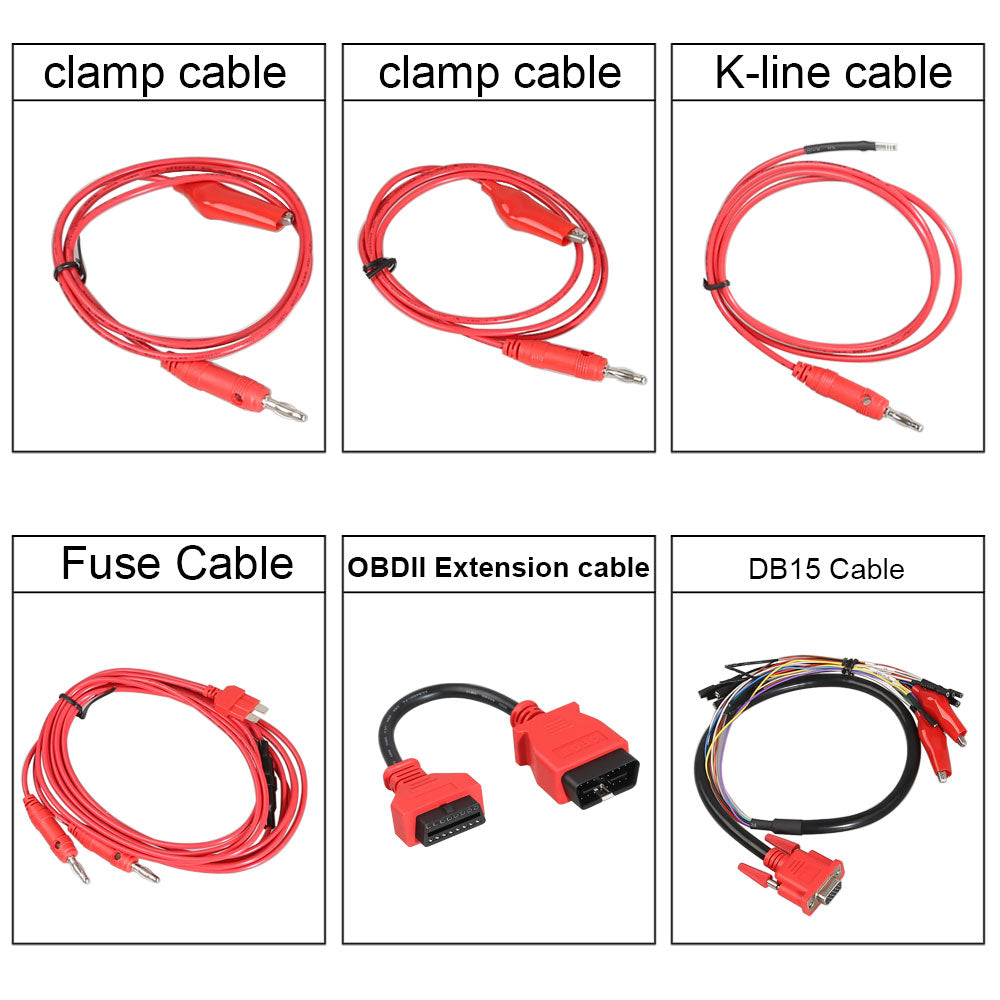

Packing List :
1pc x AUTEL G-BOX Adapter
